Urban Collection
RECYCLED
Packaging and instructions
printed on recycled materials
1

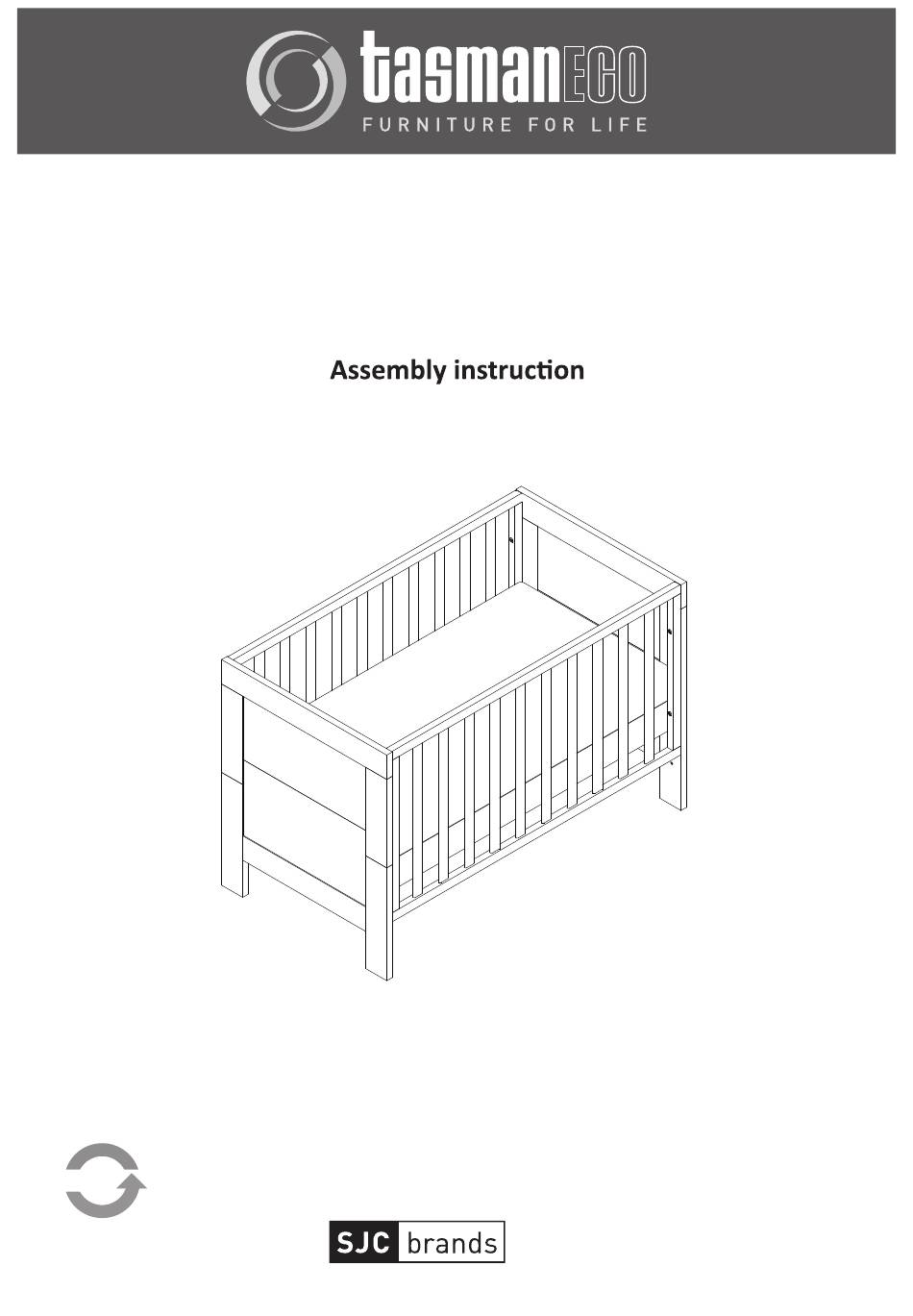

Ancona cot
Save this instruction for furture reference.
Assembly of this furniture is best under taken by two people.
SJC Brands Pty Ltd
abn.
58 106 988 578
4-6 Merryvale Rd, Minto, NSW 2566
t.
02 9603 5000
f. 02 9603 7000
e.
customer.service@sjcbrands.com.au
p.o. box
5878 Minto,DC,NSW 2566
www.tasmaneco.com.au
w.
Advertisement
Table of Contents
Related Manuals for SJC brands tasman eco Urban Ancona
Summary of Contents for SJC brands tasman eco Urban Ancona
- Page 1 Ancona cot Save this instruction for furture reference. RECYCLED Assembly of this furniture is best under taken by two people. customer.service@sjcbrands.com.au SJC Brands Pty Ltd abn. 58 106 988 578 Packaging and instructions 4-6 Merryvale Rd, Minto, NSW 2566 p.o. box...
- Page 2 Parts list Cot side x 2 Base slats x 2 Headboard x 2 Cot rail x 2...
- Page 3 Regularly check cot for weakness in timber joints and timber panels. If any weaknesses are found, report immediately to SJC Brands via: www.tasmaneco.com.au Do not use cot if it has been damaged in any way and always use genuine Tasman Eco parts. Contact your nearest Tasman Eco...
- Page 4 Step1- Connect the base slats to cot rails secure with M6 x35 bolts. M6 x 35 Bolt x 24 Step2- Attached the base to headboard A secure with lunar washers and M6 x 50mm bolts. Fix M6 x15 cap screws to unused holes. Headboard B M6 x 15mm cap screw x 6 Headboard A...
- Page 5 Step3- Connect the side panels to headboards secure with M6 x 50mm bolts. Headbaord A SIde panel 1 SIde panel 2 Side panel 1 Headboard B M6 x 50 bolt x 4 M6 x 50 bolt x 4 Check all bolts and screws are tighten but do not over tighten. Step4- Insert the recommanded mattress and cot is completed.
- Page 6 Step5- Connect the rails to headboard and one headboard (top), secure with lunar washers and M6 x 50mm bolts. Attach the base brackets to four corners secure with M6 x 20mm bolts. M6 x 20 Boltｘ16 Base bracketｘ4 M6 x 50mm Botls x 4 4 x lunar washers Step6- Fix M6 x 15 cap screw to unused holes, toddler bed is completed.
- Page 7 The replacement product will be identical to the originally purchase product wherever possible, though in situations where the identical model is discontinued or out of stock, then SJC Brands Pty Ltd will replace the product with a model that is functionally equivalent This Guarantee is made to the purchaser and/or original owner only.
