Anadigm AnadigmApex AN231K04-DVLP3 Manual

AN231K04-DVLP3 – AnadigmApex Development Board
1.0 Overview
The AnadigmApex development board is an easy-to-use platform designed to help you get started with
implementing and testing your analog designs on the AnadigmApex FPAA silicon devices.
While the device on this development platform is an AN231E04 device, you can use this board to implement all
of your AN131E04 and AN231E04 designs. The design software - AnadigmDesigner
AN231E04 device on board to emulate the AN131E04 device thus enabling instant prototyping of your design
for either device in the AnadigmApex device family.
Note : the physical device on this board is a 7x7mm TQFP, the volume production device is housed in a 7x7mm
QFN package.
This manual provides an overview on how to effectively use this board to implement your analog design. But
first, here are some salient features of the AnadigmApex development board:
•
Small footprint – 4.2 inches square
•
Large breadboard area around the AN231E04 device
•
Header pins for all the FPAA device analog I/Os
•
Ability to separate, electrically and physically, the digital section
•
Two circuit footprints for configuration as Rauch filters, single to diff converters, level shifters etc
•
Daisy chain capability – that allows multiple boards to be connected to evaluate multi-chip systems
•
Standard PC serial interface for downloading AnadigmDesigner
•
On-board 16-MHz oscillator module

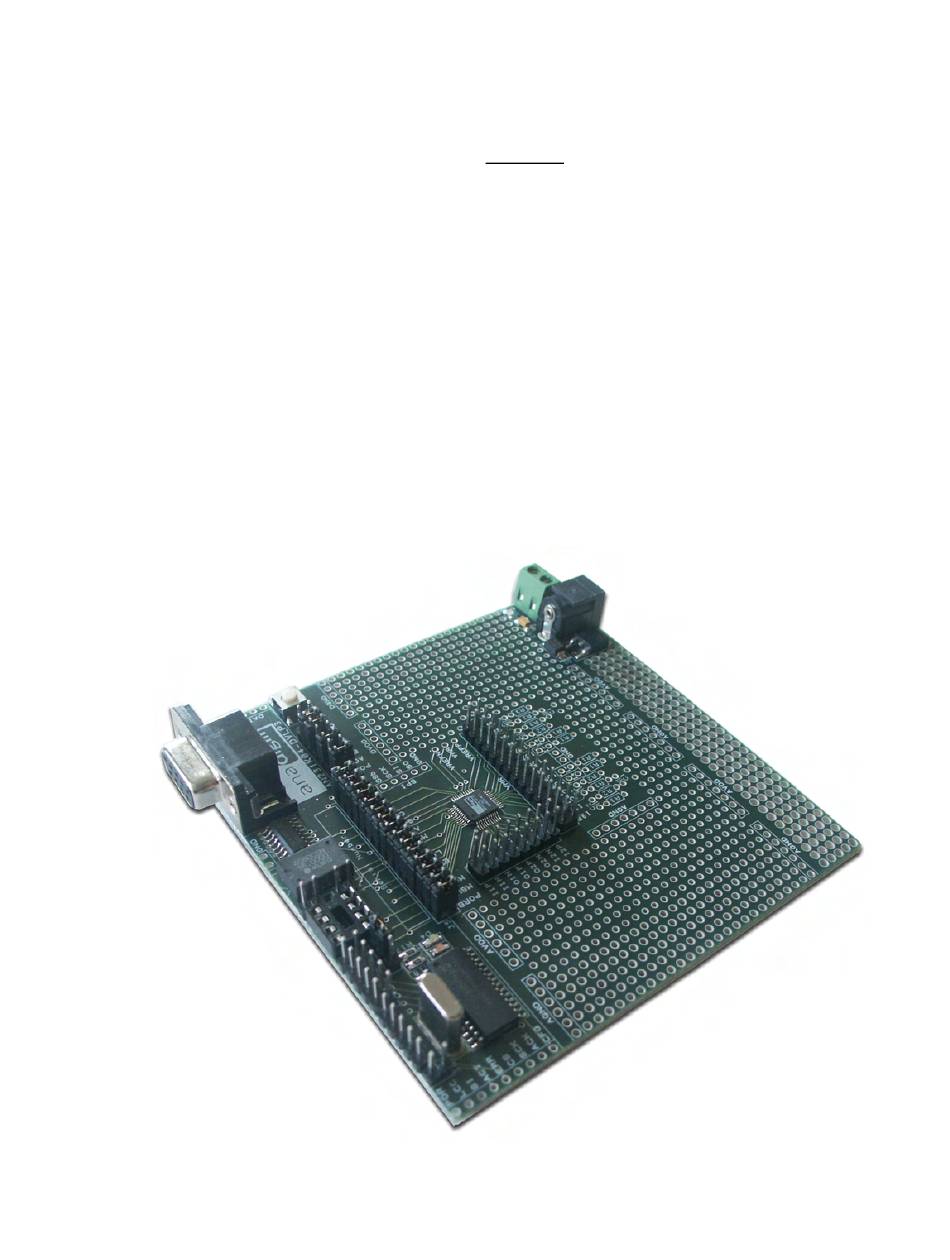

Figure 1: AnadigmApex Development Board
®
2 – can use the
®
2 circuit files
