Summary of Contents for iStarUSA mAGE424U40-PCI-E-EXP

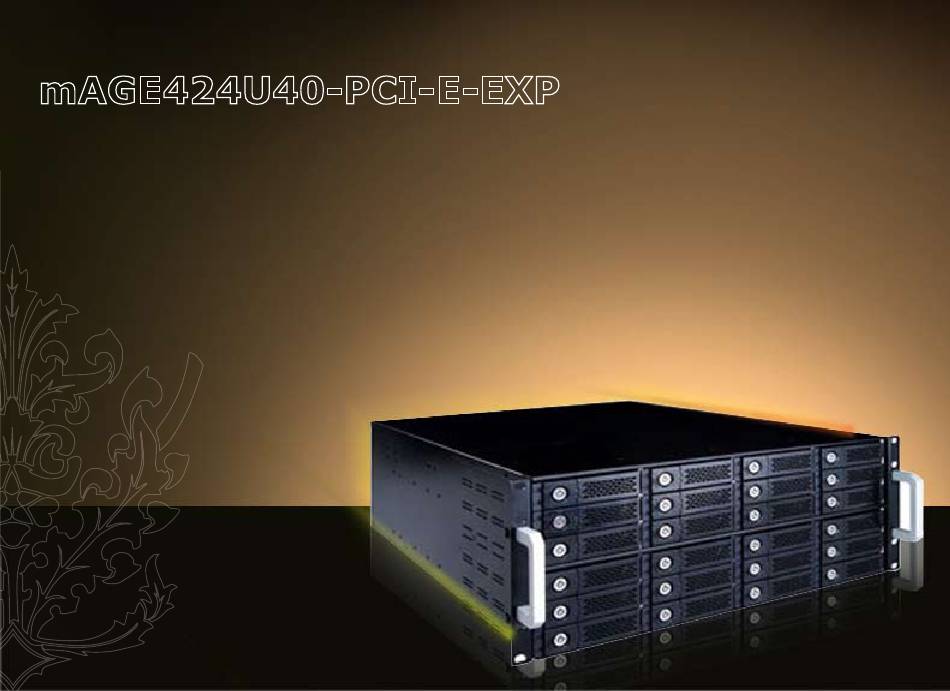

- Page 1 4U 24-bay PCI-e rackmount RAID Chassis with PCI-E Slot Expander Installation Guide...
- Page 2 Installation Guide mAGE424U40-PCI-E-EXP 4U 24-bay PCI-e Rackmount RAID Chassis with PCI-E Slot Expander mAGE424U40-PCI-E-EXP Description of Panel Layout HDD 1 HDD 1 HDD 2 HDD 2 HDD 3 HDD 3 HDD 4 HDD 4 HDD 5 HDD 5 HDD 6...
- Page 3 Open the chassis by removing the cover. Place PCI-e x8 SAS or SATA control card (HBA) and other PCI-e cards into proper PCI-e slots of mAGE424U40-PCI-E-EXP and fix them with thumbscrews on the bracket of the cards. P2: 8-Lane PCI-e Slot...
- Page 4 2. If I move a PCI-e card from Workstation (Host) to mAGE424U40-PCI-E-EXP, will it work well and how do I install the driver? Yes, don’t worry. It will work in mAGE424U40-PCI-E-EXP as well as it was in the Operation HOST. And the installation procedure of the driver is the same.
