iStarUSA S-355-JB Installation Manual

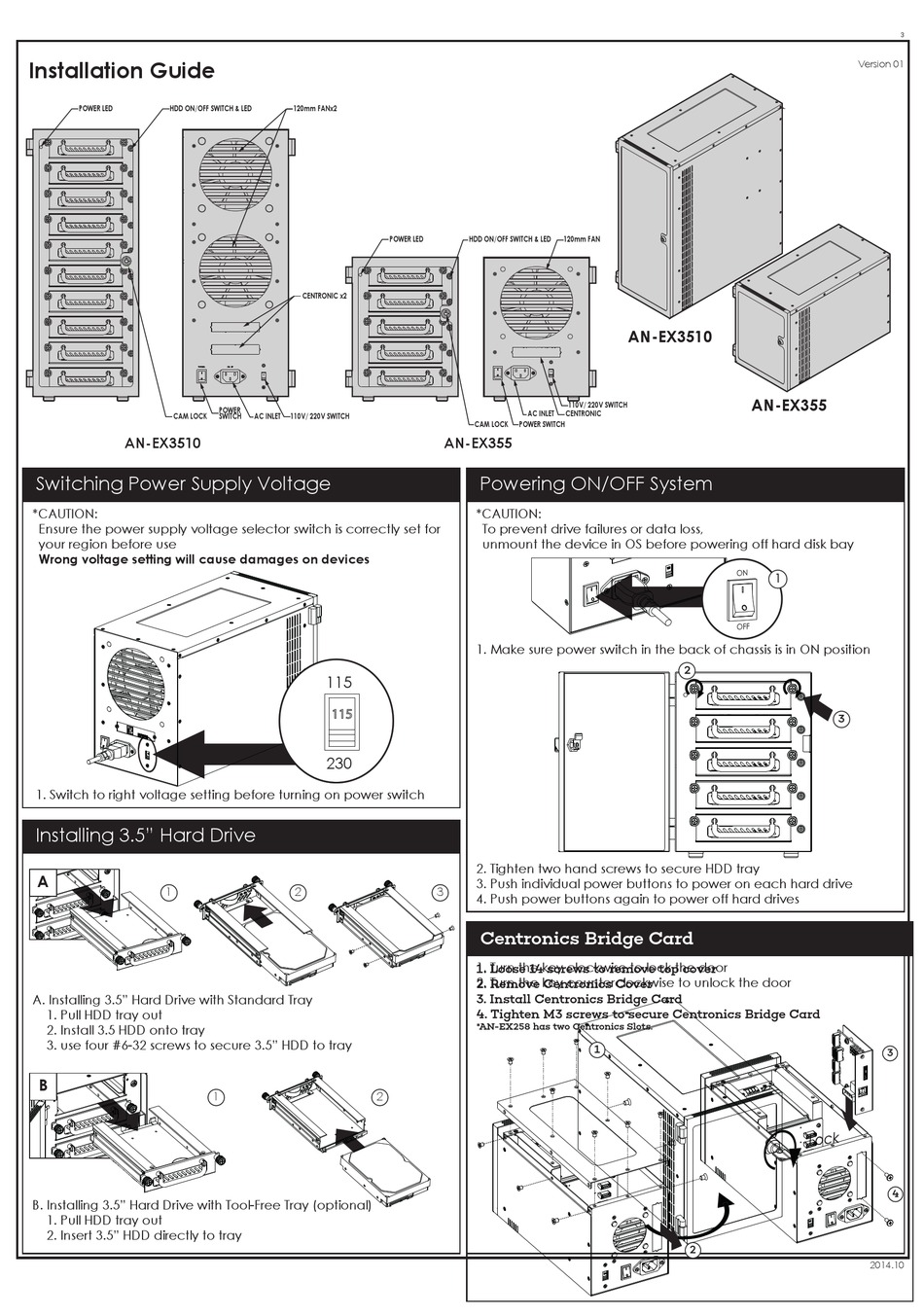

Installation Guide
POWER LED HDD ON/OFF SWITCH & LED
CAM LOCK
AN-EX3510

Switching Power Supply Voltage

*CAUTION:
Ensure the power supply voltage selector switch is correctly set for
your region before use
Wrong voltage setting will cause damages on devices
1. Switch to right voltage setting before turning on power switch
Installing 3.5" Hard Drive
A
1
A. Installing 3.5" Hard Drive with Standard Tray
1. Pull HDD tray out
2. Install 3.5 HDD onto tray
3. use four #6-32 screws to secure 3.5" HDD to tray
B
B. Installing 3.5" Hard Drive with Tool-Free Tray (optional)
1. Pull HDD tray out
2. Insert 3.5" HDD directly to tray
120mm FANx2
CENTRONIC x2
POWER
SWITCH AC INLET 110V/ 220V SWITCH
115
230
2
1 2
POWER LED HDD ON/OFF SWITCH & LED 120mm FAN
AC INLET
CAM LOCK POWER SWITCH
AN-EX355

Powering ON/OFF System

*CAUTION:
To prevent drive failures or data loss,
unmount the device in OS before powering off hard disk bay
1. Make sure power switch in the back of chassis is in ON position
2. Tighten two hand screws to secure HDD tray
3. Push individual power buttons to power on each hard drive
3
4. Push power buttons again to power off hard drives

Locking and Unlocking Door

Centronics Bridge Card

1. Turn the key clockwise to lock the door
1. Loose 14 screws to remove top cover
2. Turn the key counterclockwise to unlock the door
2. Remove Centronics Cover
3. Install Centronics Bridge Card
4. Tighten M3 screws to secure Centronics Bridge Card
*AN-EX258 has two Centronics Slots.
AN-EX3510
110V/ 220V SWITCH
CENTRONIC
2
1
2
3
Version 01
AN-EX355
1
3
3
4
2014.10
