Summary of Contents for LSK FuelGaugePro FGP-SENSOR

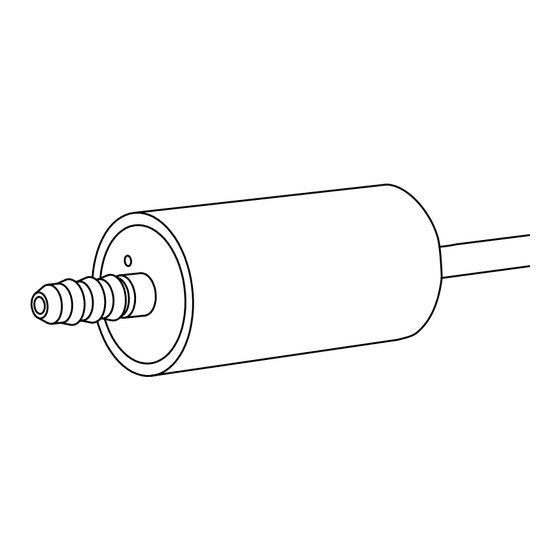

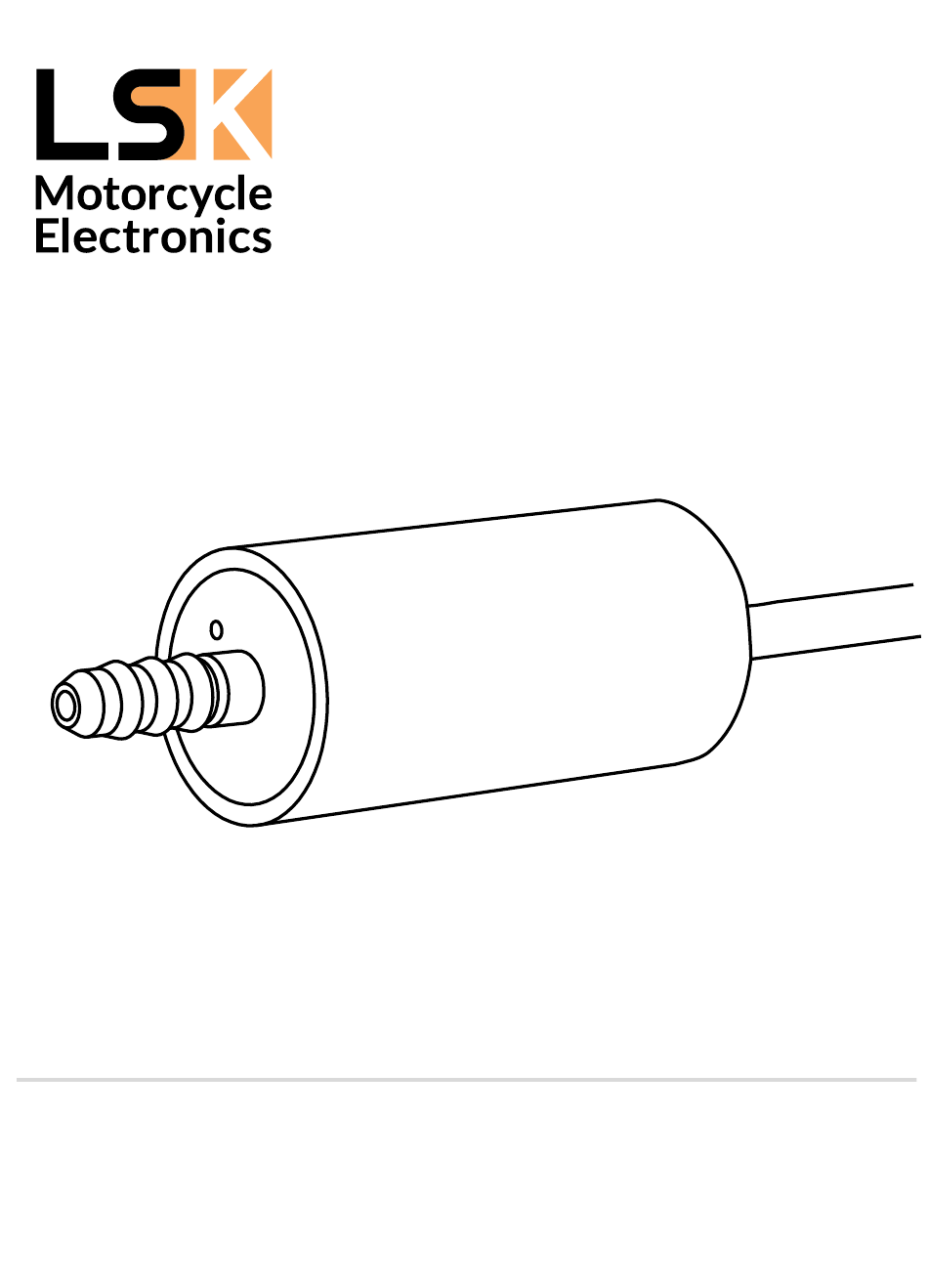

- Page 1 FuelGaugePro Float-free Fuel Level Sensor FGP-SENSOR | INSTALLATION MANUAL...
-
Page 2: Table Of Contents
Table of Contents Basic information Fuel system requirements Technical specification Installation Installing the fuel sensor Placement on fuel system without fuel pump Placement on fuel system with fuel pump Setting up the FuelGaugePro - Low Fuel Warning Light function Setting up the 3rd party microcontroller-based systems to read the signal from the sensor Warranty Safety notice... -
Page 3: Basic Information
Thank you for choosing our products. We strongly advise you to read this user manual thoroughly. It contains important instructions about installation, setup and use of the gauge. By obeying these instructions, the product will reward you with long-time reliability. Basic information The FuelGaugePro - Float-free Fuel Level Sensor uses hydrostatic pressure measuring method for measuring the fuel level without any float or movable parts in the fuel tank and generates... -
Page 4: Technical Specification
Technical specification Supply voltage: 7 – 15V DC Energy consumption: 2W max without connected gauge Fuse: electronic non-destructible fuse (0,35A) Maximal fuel level: Working temperature: -30°C to + 85°C Dimensions in milimeters: Sensor is shockproof and 100% waterproof. Sensor doesn’t lose its memory after being disconnected from power. Sensor contains integrated atmospheric pressure changes compensation. -
Page 5: Installation
Installation 1. Install the Sensor on a suitable place a) Find the best place for attaching the Sensor. - Sensor must be physically lower than the fuel tank. It is better to fill the hose up with fuel. In some cases this can make the measuring more accurate. - Do not attach the device to the engine or other very hot places. -
Page 6: Placement On Fuel System Without Fuel Pump
Detailed placement on fuel systems without fuel pump: Detailed placement on fuel systems with fuel pump:... - Page 7 2. Connect the wires Red supply wire: Connect after the ignition switch, so that the gauge switches itself on with the ignition key. Black supply wire: Use the wire shoe and screw it on some place of the frame, or even to the (-) pole of the battery.
-
Page 8: Setting Up The Fuelgaugepro - Low Fuel Warning Light Function
If you are owner of FuelGaugePro - Low Fuel Warning Light, follow next steps. Setting up the FuelGaugePro - Low Fuel Warning Light function Use only if you are connecting the Sensor together with FuelGaugePro - Low Fuel Warning Light kit. It is needed to switch the output from continuous signal (factory settings) used for gauges to on/off signal needed for Warning Light. -
Page 9: Setting Up The 3Rd Party Microcontroller-Based Systems To Read
If you want to use the sensor without any FuelGaugePro display panel and using it in your own gauge design, follow next steps. Setting up the 3 party microcontroller-based systems to read the signal from the FuelGaugePro – Float-free Fuel Level Sensor Use only if you will use the Sensor together with another device capable to read Sensor signal –... -
Page 10: Warranty
Warranty Product is covered by 2 years Limited Warranty (from the date of purchase). Limited Warranty covers any defects in material or manufacturing defects under normal use and maintenance. We reserve the right not to accept the claim in the case of mechanical damage that could be related to the defect of the product or if the product was disassembled by unauthorized service. -
Page 11: Recycling
Recycling Retired device should be given to places specified for retrieving electrical garbage. Package should be thrown into a specific container for recycled garbage. Device meets RoHS Directive. www.lskelectronics.com info@lskelectronics.com Product website:...
