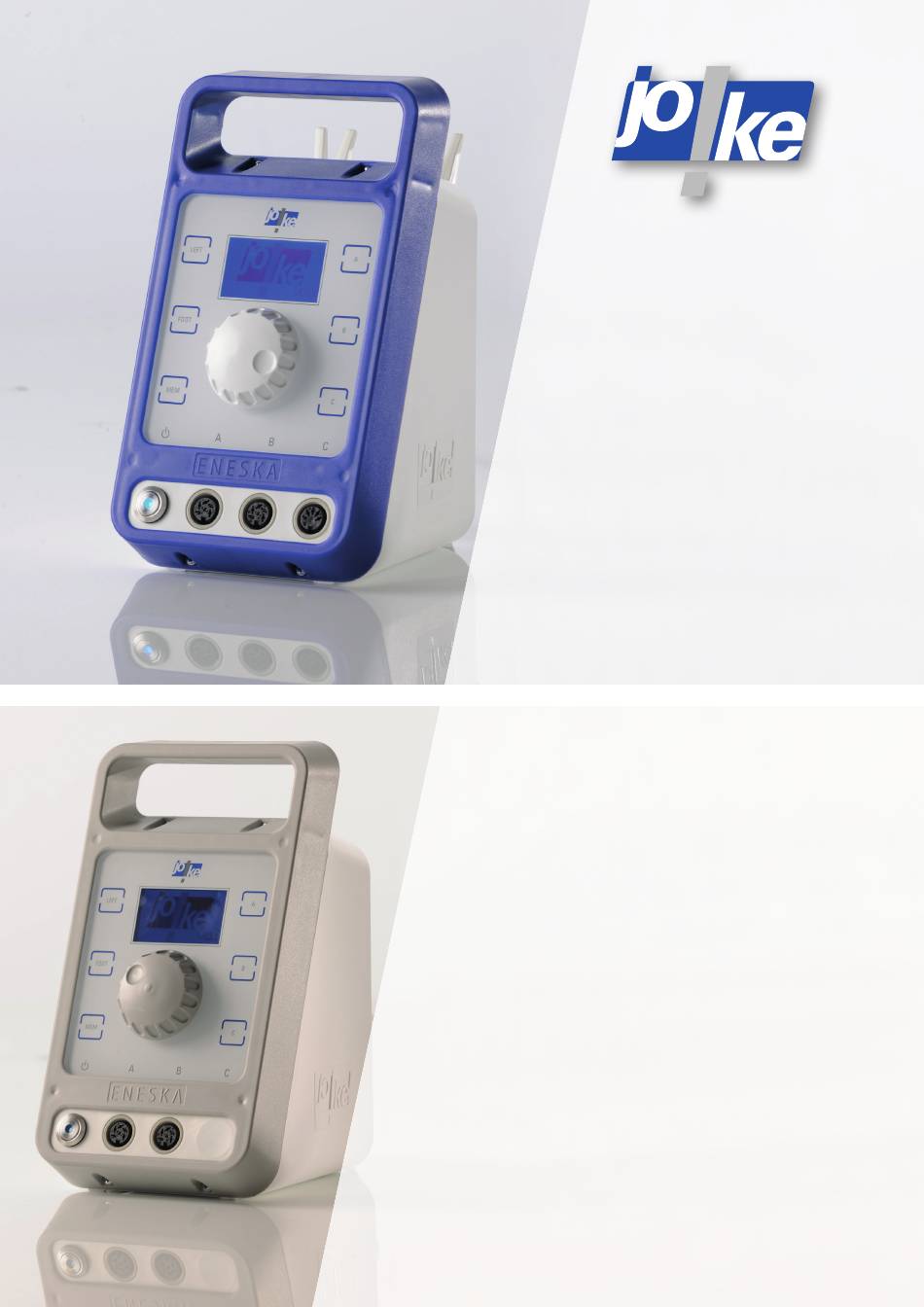

- Page 1 Operating instructions ENESKAmicro 600 ENESKAmicro 450...
-
Page 3: Table Of Contents
Table of contents 1 Notes about these instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2 Product overview . -
Page 4: Notes About These Instructions
13 Changing the collet chuck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 HT 60, HT 60 XL . -
Page 5: Product Overview
Collet chuck Motor cable Handpiece ENESKAmicro control unit Motor You will find a comprehensive system overview in the JOKE surface treatment catalogue, in the “Drive systems and handpieces” chapter . Technical specifications ENESKAmicro 450 control unit Motor connections 2 connections for brushless DC motors Supply voltage 115 / 230 V, 50 / 60 Hz... - Page 6 Approved motors Max . Handpiece - Motor cable speed motor con- (rpm) nection ENESKAmicro Motor SE3 50,000 ENESKAmicro S ENESKAmicro Motor SE4 50,000 ENESKAmicro S ENESKAmicro COMPACT SE 50,000 COMPACT ENESKAmicro HT ENESKAmicro COMPACT HT60 60,000 COMPACT ENESKAmicro HT ENESKAmicro COMPACT HT60 SMALL 60,000 COMPACT ENESKAmicro HT...
- Page 7 Approved handpieces with a (+) connection Max . speed (rpm) JEHR 500 quick-release handpiece 50,000 (continuous operation: 40,000) JEKC 300 angled handpiece 20,000 JERA 270 angled handpiece 20,000 JERA 270 S angled handpiece 18,000 WE4-45 angled handpiece 30,000 WE4-90 angled handpiece 30,000 Approved handpieces with a (-) connection Max .
-
Page 8: Safety
Intended use ENESKAmicro systems are designed exclusively for grinding, milling, deburring and polishing with the tools listed and approved in the JOKE catalogue . ENESKAmicro systems may only be used with approved components and accessories (see chapter 3, Technical specifications) . -
Page 9: Controls And Indicators
Controls and indicators 18 000 rpm Fig . 2 Power switch Connection B (BLDC - brushless DC motor) Connection C (DC carbon brush motor; if MEM button available) FOOT button Connection for a foot pedal or PLC LEFT button Fuse Display Mains plug connection Handpiece rest (if available) Speed display as ACTUAL value or %... -
Page 10: Initial Startup
Initial startup Replace the fuse (if necessary) The control unit is factory set to 230 V and equipped with two 2 A fuses . One of these two is intended to be a spare . Two 4 A fuses are also included . Caution! Only use the following fuses: •... -
Page 11: Connecting A Motor Cable
Connecting a motor cable Caution! Always insert the cable carefully into the socket on the control unit and make sure that the con- tacts and threads are not damaged . • Connection A: BLDC - brushless DC motor • Connection B: BLDC - brushless DC motor •... -
Page 12: Connecting A Handpiece
Connecting a handpiece Caution! Carefully push the motor and the handpiece together and make sure that the contacts, the motor shaft, the handpiece coupling and the threads are not damaged . Always use the supplied tool . If there is resistance before the thread is completely screwed in, first turn the handpiece’s collet chuck manually until the coupling engages . -
Page 13: Setting The Language (If Necessary)
Setting the language (if necessary) Action Shown in the display = ESC = XXXXXXXX = = ESC = MAIN MENU = ----------------------------------- - __________ - __________ - __________ Call up the main menu = ESC = ___________ = ----------------------------------- - XXXXXX Language - __________ - __________... -
Page 14: Installing Or Changing A Tool
Installing or changing a tool Warning! To avoid injuries caused by the tool turning unintentionally, only connect or change tools when the control unit is switched off . Warning! To avoid injuries caused by tools coming loose, always insert the tools into the collet chuck as far as they will go and also adjust the collet chuck on the JEHR 500, JIH 300 and JIR 310 handpieces . -
Page 15: Jehg 400 / Jhg 210
JEHG 400 / JHG 210 Fig . 12 JEHR 500, JIR 310 CLICK CLICK Fig . 13 JERA 270, JBMH 300 N Fig . 14 15 15... -
Page 16: Jera 270 S
JERA 270 S Fig . 15 JIH 300 90° 90° Fig . 16 JKC 345, JIC 390, JEKC 300, WE4-45, WE4-90 Fig . 17 16 16... -
Page 17: Jmfc 300 S / 300 M
JMFC 300 S / 300 M Fig . 18 17 17... -
Page 18: Operation
Operation Switching the unit on and off Fig . 19 Choosing the direction of rotation Anti-clockwise (LEFT) rotation can only be selected if the handpiece is approved for two direc- tions of rotation . Option A: 18 000 rpm LEFT LEFT FOOT LEFT Fig . -
Page 19: Choosing A Motor
FOOT Fig . 22 Releasing the block at 50,000 rpm: ENESKAmicro 600 control units with COMPACT HT60 and HT60 small motors: » Set 50,000 rpm . » Press the rotary control knob . The higher speed range will be enabled and can be set with the rotary knob (max . 60,000 rpm) . -
Page 20: Starting The Motor
Starting the motor Fig . 23 Stopping the motor Fig . 24 20 20... -
Page 21: Calling Up Information About The Unit
Calling up information about the unit Action Shown in the display = ESC = XXXXXXXX = = ESC = MAIN MENU = ----------------------------------- - __________ - __________ - __________ Call up the main menu = ESC = ___________ = ----------------------------------- - __________ - __________ - XXXXXX... -
Page 22: Using Foot Mode
Using foot mode A foot pedal can be used to control the speed of the tool using your foot during operation . Vari- able speeds between 0 and the set speed can be selected . Switching foot mode on XX rpm Fig . -
Page 23: Using The Memory Function (Mem)
Using the memory function (MEM) The memory function makes it possible to store one speed, one direction of rotation (anticlock- wise or clockwise) and the activated foot operation for each of the three connections (A, B or C) so that the settings are retained even if the control unit is switched off and then on again . If the memory function is activated (MEM button illuminated), the settings on the control unit cannot be changed . -
Page 24: Setting A Timer
Setting a timer As soon as a motor runs without a load, a timer will count down and switch the motor off as soon as the set time has elapsed . The factory setting is one minute . Action Shown in the display = ESC = XXXXXXXX = = ESC = MAIN MENU = -----------------------------------... -
Page 25: Using A Programmable Logic Controller (Plc)
Using a programmable logic controller (PLC) Connecting the PLC FOOT Fig . 29 Setting the PLC functions Action Shown in the display = ESC = XXXXXXXX = = ESC = MAIN MENU = ----------------------------------- - __________ - __________ - __________ Call up the main menu = ESC = ___________ = -----------------------------------... - Page 26 Action Shown in the display = ESC = ___________ = ----------------------------------- ___________________________ ___________________________ >___________________________ XXXXXXXXXXXXXX PLC isolat . contact [MEM]=Save [C]=ESC Select the PLC function = ESC = ___________ = = ESC = Interface = ----------------------------------- - _________ - _________ + _________ Save and quit = ESC = ___________ =...
-
Page 27: Changing The Collet Chuck
Changing the collet chuck Warning! To avoid injuries caused by the tool turning unintentionally, only connect or change tools and collet chucks when the control unit is switched off . Warning! To avoid injuries caused by tools coming loose, always insert the tools into the handpiece as far as they will go . -
Page 28: Ht 60 D6, Ht 60-D6 Cnc
HT 60, HT 60 XL Fig . 31 HT 60 D6, HT 60-D6 CNC Fig . 32 28 28... -
Page 29: Ht 60 Small
HT 60 SMALL CLICK Fig . 33 29 29... -
Page 30: Jehg400/Jhg210
JEHG400/JHG210 Fig . 34 JEHR 500, JIR 310 Fig . 35 30 30... -
Page 31: Jera 270, Jbmh 300 N
JERA 270, JBMH 300 N Fig . 36 JERA 270 S Fig . 37 31 31... -
Page 32: Jih 300
JIH 300 90° 90° Fig . 38 JKC 345, JIC 390, JEKC 300, WE4-45, WE4-90 Fig . 39 JMFC 300 S / 300 M Fig . 40 32 32... -
Page 33: Maintenance, Care And Disposal
Maintenance, care and disposal The control unit should be serviced once a year by JOKE Service . Service, maintain and dispose of carbon brush motors as described in the corresponding manu- facturer’s instructions . Clean and lightly oil collet chucks at least once a week . - Page 34 • The fuse in the control unit is faulty . • Replace the fuse . • Control unit, cables, connections, • Send unit and accessories to JOKE Ser- contacts, mains switch or sockets are vice for inspection or repair .
- Page 35 Web www .joke .de Online shop www .joke-technology .de © Copyright joke Technology GmbH • February 2019 • Subject to changes due to technical progress, errors and misprints - Reproduction, in whole or in part, only with prior written permission .
