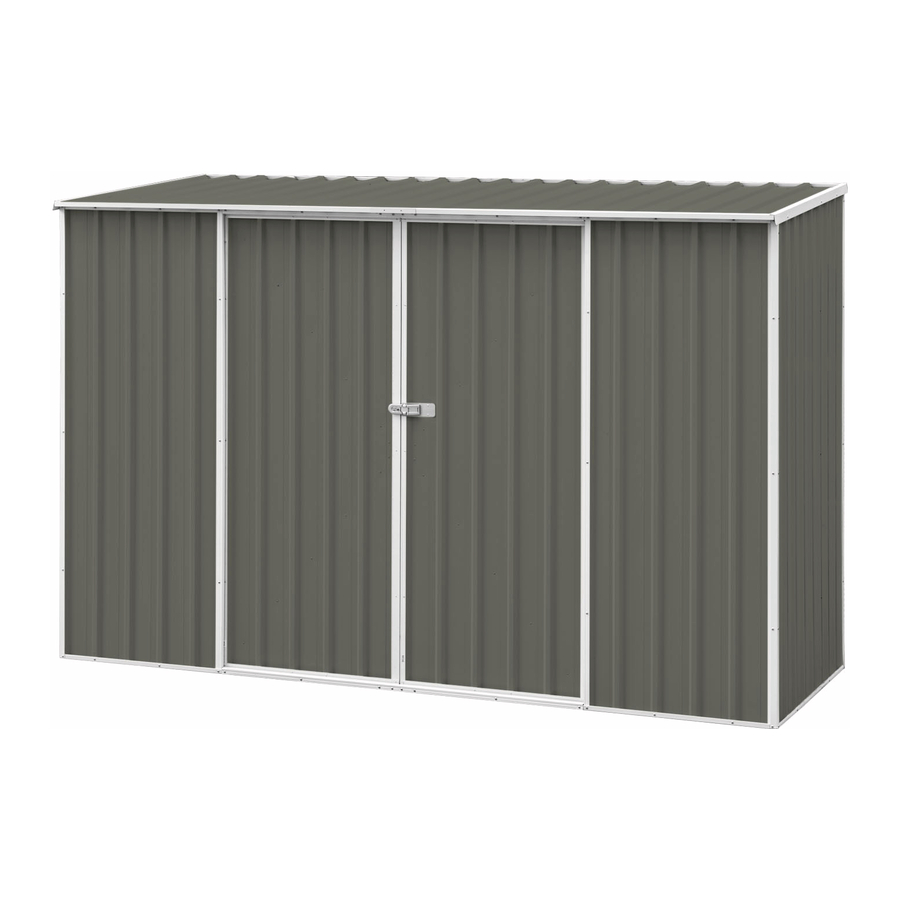

Pinnacle Outdoor GardenSHED 3.0m Skillion Series Assembly Instructions Manual

3.0w x 1.2d x 2.05hm double sliding door
Hide thumbs

Advertisement

Quick Links

Download this manual
GardenSHED
3.0W x 1.2D x 2.05Hm | Double Sliding Door
3.0m Skillion Series
Assembly instructions
Congratulations on purchasing your new Pinnacle Garden Shed. Before assembling, we
recommend you read the instructions thoroughly. Your new shed comes with pre-drilled holes to
make assembly quicker. We recommend you assemble the shed using a trestle table or sawhorses
and planks. This will ensure that you are working off the ground and make it easier for you.
Assembly is a two-person job and should not be attempted in windy conditions.
Tools required: Drill, measuring tape, phillips-head screw driver, rivet gun, rubber mallet, sturdy ladder, shifting spanner, 2 saw horses,
3mm steel drill bit, 4mm steel drill bit and a 10mm masonry drill bit.

Advertisement

loading
Need help?

Need help?

Do you have a question about the GardenSHED 3.0m Skillion Series and is the answer not in the manual?

Questions and answers

Related Manuals for Pinnacle Outdoor GardenSHED 3.0m Skillion Series

Summary of Contents for Pinnacle Outdoor GardenSHED 3.0m Skillion Series

  • Page 1 GardenSHED 3.0W x 1.2D x 2.05Hm | Double Sliding Door 3.0m Skillion Series Assembly instructions Congratulations on purchasing your new Pinnacle Garden Shed. Before assembling, we recommend you read the instructions thoroughly. Your new shed comes with pre-drilled holes to make assembly quicker.
  • Page 2 GardenShed 3.0 x 1.2 x 2.05m Build your garden shed in 7 easy steps! Step 1: Check all parts against the component list Step 2: Assemble the rear wall panels Step 3: Assemble the side wall panels Step 4: Assemble the roof panels Step 5: Assemble the front doors Step 6: Assemble the front wall panel Step 7: Fit the panels together...
  • Page 3 Step 1: Check all parts against the component list Lay out all parts with number facing outwards and check off against parts list. Part Picture Description Component Location BOX Check Sheet Size: 2026x770mm Rear wall Sheet Size: 1971-2026x526mm Side wall Sheet Size: 1971-2026x526mm Side wall...
  • Page 4 GardenShed 3.0 x 1.2 x 2.05m Part Picture Description Component Location BOX Check Channel Channel 768mm Door Jamb Length: 1853mm Door Brace Length: 1075mm Door Channel Length: 1494mm Roof Channel Length: 1494mm Roof Channel Length: 1494mm Rear wall Channel Length: 1494mm Rear wall Channel Length: 1494mm...
  • Page 5 Part Picture Description Component Location BOX Check Channel Length: 1494mm Front Channel Length: 1514mm Front Channel Length: 1212mm Side wall C127 Channel Length: 1212mm Side wall C128 Channel Length: 1217mm Side wall C129 Channel Length: 1217mm Side wall C130 Channel Length: 1898mm Front Channel...
  • Page 6 GardenShed 3.0 x 1.2 x 2.05m Part Picture Description Component Location BOX Check Bottom Length: 1470mm Front Track Bottom Length: 1470mm Front Track Jamb Length: 1898mm Corner Jamb Length: 1898mm Corner Jamb Length: 2024mm Corner Jamb Length: 2024mm Corner Length: 1318mm Roof Length: 1318mm Roof...
  • Page 7 Fittings part list: Picture Component Picture Component Self-tapping screws (10mm) Self-tapping screws (16mm) 3 x 10mm Rivet 4 x 10mm Rivet Hasp (Part C4) Staple Mid wall brace (part 72) Base bracket 5/16” x 19mm 5/16” Hexagonal nut hex bolt Self-tapping screw Mid-wall channel connector safety cover...
  • Page 8 GardenShed 3.0 x 1.2 x 2.05m Garden shed overview: C130 C129 SS06 C131 SC13 SS06 SC12 C131 C128 C127 SC29 SC30 SC30...
  • Page 9 Step 2: Assemble the rear wall panels You will find it easier to assemble your shed using sawhorses with timber studs attached (timber needs to be the same length as the shed (3.0m) or alternatively, a trestle table. Place 4 x part S96 (Sheet) on your worktable and then position parts 27I, 27H (top channel) and parts 27C, 27D (bottom channel) to the sheeting by tapping (diagram A) or sliding them into place (diagram B).
  • Page 10 GardenShed 3.0 x 1.2 x 2.05m RIDGES FACING UP Tip: If panel and screw holes do not line up, try pulling panel to match up holes.
  • Page 11 Step 2: Assemble the rear wall panels (continued) Now fix parts SC13 and SC12 (mid wall channels) joined by mid wall channel connector to the sheeting with self-tapping screws. Please note that the groove should face downwards. Fix other channels with self-tapping screws. TIP (before applying part 66 (channel connectors)): to help panel and screw holes to line up, fasten screws one at a time from one side of the wall to the other and pull panel away from screw each time to match up holes.
  • Page 12 GardenShed 3.0 x 1.2 x 2.05m Step 3: Assemble the side wall panels Place parts 2D and 7D (sheeting) on your worktable and fix part C130 (top channel) and part C128 (bottom channel) to the sheeting by tapping or sliding the channels in. Make sure the small lip of the channel is always facing out. This ensures rainwater cannot build up inside your shed.
  • Page 13 Repeat same step for the other side wall as per the diagram below. C129 ROOF TOP EDGE C131 C127...
  • Page 14 GardenShed 3.0 x 1.2 x 2.05m Step 4: Assemble the roof panels Place 4 x part S97 (sheeting) on your worktable and fix 2 x parts 27A and 27B (channel) to the sheeting by tapping or sliding the channels in. Make sure the small lip of the channel is always facing out. This ensures rainwater cannot build up inside your shed. Please note: the groove should face downwards.
  • Page 15 Step 5: Assemble the front doors Place part 5A (door sheet) on the worktable. Fit 2 x part 21P (channel) to the top and bottom of the sheet and parts SC29, SC30 (channels) to the sides of the door panel. Fix these channels with the provided 3.0 x 10mm rivets as per the diagrams below. SC30 SC29 Fix with 3.0x10mm rivets...
  • Page 16 GardenShed 3.0 x 1.2 x 2.05m Now repeat the same step for the other door as per the diagram below. ROOF TOP EDGE RIDGES FACING UP SC30 Fix with 3.0x10mm rivets...
  • Page 17 Once channels are fixed to both doors, align 2 x part U4 (brace) and part W (joining brace) with holes on the back of each door and position temporarily with some tape or simply hold in place. ROOF TOP EDGE RIDGES FACING DOWN 5A / 5F BACK...
  • Page 18 GardenShed 3.0 x 1.2 x 2.05m Turn door over with bracing still aligned with holes (make sure the ridges of the door are facing up) and fix the bracing with 3.0 x 10mm rivets through the front of the panel. Then turn door over and insert plastic stoppers at the ends of braces as shown below. FRONT RIDGES FACING UP Fix with 3.0x10mm rivets...
  • Page 19 Assemble the front wall panels Step 6: Place 2 x part SS06 (sheet) onto your worktable and fix 2 x part 22E (channel) to the inside edges of the sheeting with self-tapping screws provided as per the diagram below. Please note: All screws marked with a cross should not be fixed at this stage. ROOF TOP EDGE SS06 SS06...
  • Page 20 GardenShed 3.0 x 1.2 x 2.05m Fix parts 27R, 27Q, C26 (top channels) and parts 27S, 27T, and C26 (bottom channels) using self-tapping screws. Please note: for parts 27R, 27Q, 27S and 27T the small lip should be facing out to stop water building up and leaking into shed. ROOF TOP EDGE RIDGES FACING UP...
  • Page 21 Once the top and bottom channels are fixed position parts O2, O1 (top track) and O3, O4 (bottom track) and fix with the provided self tapping screws. Attach part 66A (track connector) on the top and bottom tracks to enhance strength. Note: All screws marked with a cross should not be fixed at this stage.
  • Page 22 GardenShed 3.0 x 1.2 x 2.05m Position the doors and ensure the top and bottom channel engage the tracks as you slide them on as per the diagram below. Once doors are sliding freely on the tracks position the doors in a closed position and install parts C4 (hasp & staple) with the provided 4.0 x 10mm rivets.
  • Page 23 Fit the panels together. Step 7: Attach the two side walls to the back wall followed by the front wall. Fix all of these components together using the provided self- tapping screws. When attaching the wall panels together also fix parts Z45, Z46, Z19 and Z44 (jamb) to each corner using the provided self-tapping screws as per diagram below.
  • Page 24 GardenShed 3.0 x 1.2 x 2.05m Now that the 4 wall panels are fixed together, position the roof in place and fix with the provided self tapping screws. Before fixing the roof to the side walls ensure parts L13 and L14 (lip) are positioned and fixed. Strengthen your mid wall brace by applying part 72 (mid wall brace bracket) to each rear corner.
  • Page 25 Apply the left and right channel safety covers to part C131 for safety. Also apply the self-tapper covers to the screw ends visible in walls on the inside of the shed. C131 C131...
  • Page 26 GardenShed 3.0 x 1.2 x 2.05m Warranty statement: This warranty against defects is given by: Pinnacle Hardware Business Address: 28 Hudson Court, Keysborough VIC 3173 1800 349 776 Email: support@pinnacle.net.au New Zealand customers please contact: HARCO (Harkness & Young Ltd) Ph: 09 276 4071 Email: sales@harknessyoung.co.nz Details of Manufacturer’s Warranty...
  • Page 27 IMPORTANT 1. Manufacturer’s Disclosure This warranty against defects shall not apply in the following situations: A) Where the product is not assembled in accordance with the instructions provided in the product kit. B) Where the product is used to store corrosive materials such as fertilizer, chlorine etc; C) Where the damage to the product is caused by storms.
