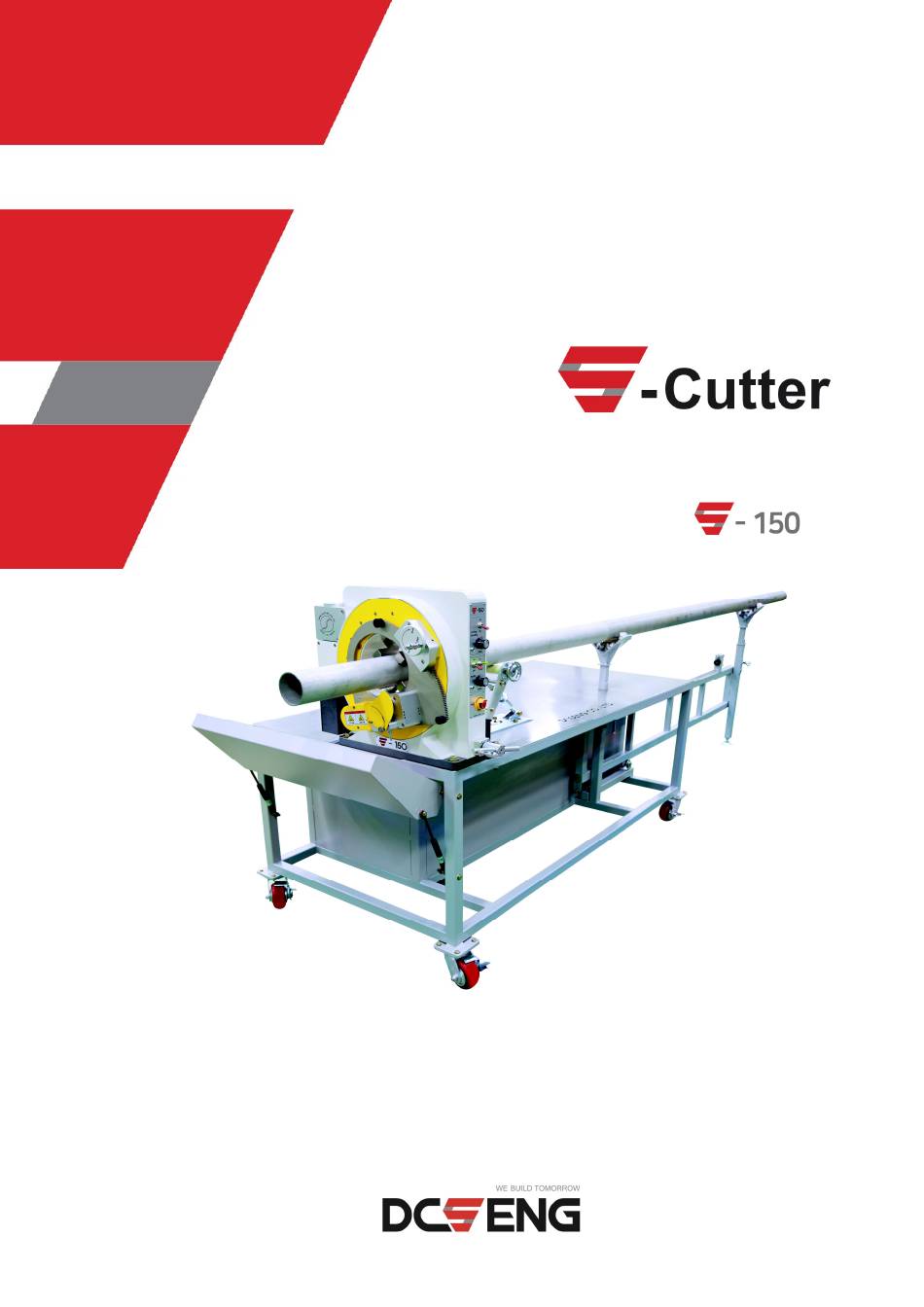

- Page 1 PIPE(TUBE) CUTTER Of Best Technology Manual Safety Precautions Thank you for purchasing S-Cutter. This is an instruction to prevent property damage, ensure the correct use and safety of the user. Please read these instructions carefully before use.
- Page 2 PIPE(TUBE) CUTTER Of Best Technology CONTENTS 1. Precautions for the safe use 2. Please keep the following precautions 3. Check before use 4. How to use S-150 5. Quality Warranty...
- Page 3 Precautions for the safe use Keep work area clean. Untidy workshop and work table may cause accidents. Consider your work environment. Do not let it wet. Do not use in damp or humid place. Install bright lighting in the work place. Do not use near flammable liquids or gases.
- Page 4 PIPE(TUBE) CUTTER Of Best Technology Focus on the job. Please note the fall, and cut piping pinch. Manage the product carefully. keep the product clean and efficient for safe operation. Manage with the proper lubricant, apply a corrosion inhibitor to prevent corrosion when not in use for a long time.
- Page 5 Please keep the following precautions The instructions in this owner's manual contain information that is important to the safe use of this product. Not following these instructions can cause death, serious injury, and massive property damage. ‘Warning’and‘Caution’are indicated and the meanings are as below. Sign Description Warning...
- Page 6 PIPE(TUBE) CUTTER Of Best Technology Warning ● Make sure the power is connected to the ground. Leakage current due to electric shock may occur if the product is not connected to the grounding. ● Do not pour water or cutting fluid. Due to water or other liquids on the electric motor, electric shock, or death may occur.
- Page 7 Checked before use Check the circuit breaker Make sure the system is powered on the circuit breaker is installed. Check that earth leakage breakers are installed in every power system. Make sure that the ground wire is connected to the powered system. Extension cord When far away from the location of the power use an extension cord.
- Page 8 PIPE(TUBE) CUTTER Of Best Technology Cut, whether thick or thin, at a single stroke! The world best convenience and work speed ! Equipment capacity : 1/4inch - 6inch (Pipe O.D 6mm - 170mm) www.s-cutter.co.kr...
- Page 9 How to use the product How to use S-150 Before use Please read about how to use manual provided by the headquarter or suppliers. Users must be educated before use. Make sure to remove the power exchanges when cutting or beveling. Make sure to connect the grounding, and confirm the voltage.
- Page 10 PIPE(TUBE) CUTTER Of Best Technology 1. Names of parts and controls ● Names of parts Name Function S-150 Pipe Cutting Machine S-150_MT Machine Table S-150_RS Pipe Transfer Device S-150_VS Short Pipe Support and Transfer (fixed) S-150_VS Long Pipe Support and Transfer (mobile) Locking Lever Positioning Bolt According to the Diameter Chip holder...
- Page 11 ● Function name Name Name Spindle motor Cutting displacement handle Rotating motor Vise jaw handle Control box Rotating gearbox oil nipple Rotating gearbox Cutting drive gear oil nipple Spindle gearbox Oil inspection hole of cutting wheel Cutting / Beveling tool Power supply ∅...
- Page 12 PIPE(TUBE) CUTTER Of Best Technology 2. Setting of Cutting and Beveling Blade 2-1. Check the rotating direction of the cutting blade. ● Check the accordance of direction of the arrow on gearbox and cutter blade. 2-2. Replacing the cutter blade ●...
- Page 13 2-3. Fixing the brush ● Fix the stainless steel brush by attaching on cutting blade. (enhancing saw blade lifespan) 3. Pipe(Tube) Setting 3-1. S-150_VS : Height adjustment of Pipe ● If the pipe is long, move the movable S-150_VS with aligning to pipe length and use it. (Decide the location of movable S-150_VS and then attach it to the ground by using left lower control.) Do not lift too much...
- Page 14 PIPE(TUBE) CUTTER Of Best Technology ● Adjust the scale on the S-150_VS pole to the top part of machine table according to the size of pipe. 3-2. S-150_RS : Pipe transfer device ● The location of S-150_RS is adjusted after fixing the pipe to the machine. Use accordingly based on the size of pipe.
- Page 15 4. Cutting / Beveling adjustment 4-1. Cutting switch ON/OFF ● When the switch is on, cutting blade rotates. ● Cutting speed adjustment volume should be placed“Cut”area. ● Beveling Speed adjustment volume should be placed "Bevel" area.. 4-2. Cutting handle operation ●...
- Page 16 PIPE(TUBE) CUTTER Of Best Technology 5. Rotation adjustment 5-1. Rotation switch ON/OFF (Feed) ● When the switch is turned on, the cutting tool rotates around the center of the machine. ● When cutting, use the low speed for the thick or large diameter pipe. ●...
- Page 17 6. Emergency STOP / RESET Switch ● When an alarm occurs due to electric shock and overload. (Ready lamp light on) Reset by pressing the Emergency Stop switch. (Reset and stop function) ※ Off : Turn the button clockwise to return. 7.
- Page 18 PIPE(TUBE) CUTTER Of Best Technology E. Alarm transmission and fuse inspection ⦁ When alarming due to overload and electric shock during operation - When the LED lamp at the front of the control panel is blinking, reset the Emergency Stop S/W. ⦁...
- Page 19 8. S-150 Product Specifications ● Machine Specifications Item Unit Specification note 1) Minimum O.D mm (inch) 6 (1/4) Maximum O.D mm (inch) 170 (6) Cutting capacity note 2) Minimum Thickness Maximum Thickness 12 (10) (recommended) note 1) Minimum O.D mm (inch) 6 (1/4) Maximum O.D mm (inch)
- Page 21 PIPE(TUBE) CUTTER Of Best Technology DCSENG CO., LTD. 23-22, Jukjeon-3gil, Hyeondo-myeon, Seowon-gu, Cheongju-si, Chungcheongbuk-do, 28214, Republic of Korea T. +82-43-256-0945 F. +82-43-256-0946 W. www.dcseng.co.kr www.s-cutter.co.kr...
