Summary of Contents for Blaupunkt Arizona DJ73

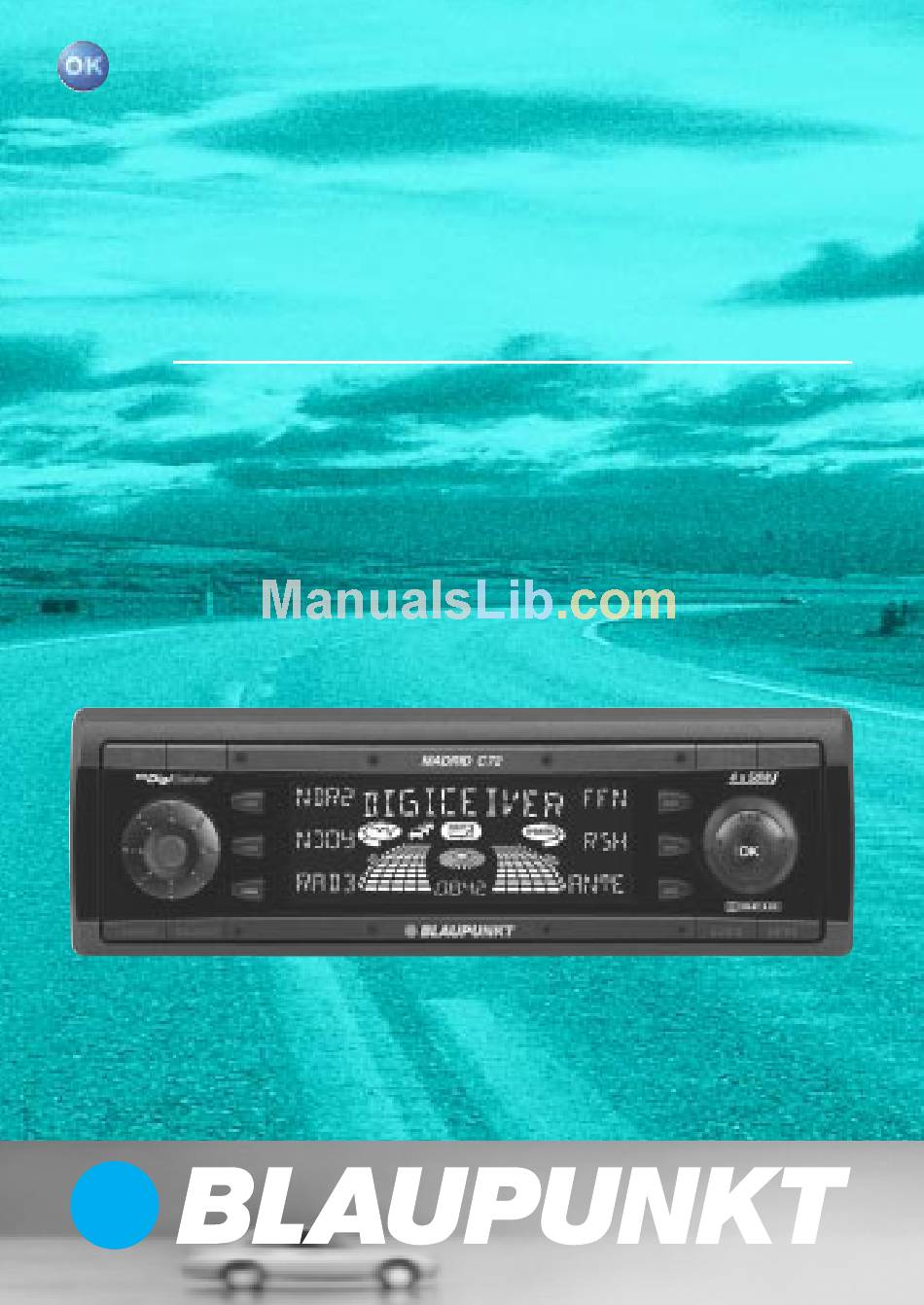

- Page 1 Radio / Cassette Madrid C72 Nevada DJ72 Arizona DJ73 Operating instructions http://www.blaupunkt.com...
- Page 2 Bitte aufklappen Open here Ouvrir s.v.p. Aprite la pagina Hier openslaan a.u.b. Öppna Por favor, abrir Favor abrir Åbn her...
- Page 4 Button, to switch the unit on/off, adjust the volume Button, to unlock the remova- ble control panel (release panel) NEXT button to display the other pages in a menu and to switch to a different memory bank in ra- dio mode Softkeys: the function of the softkeys depends on the current display content...
-
Page 5: Table Of Contents
CONTENTS Notes and accessories ... 35 Removable control panel ... 36 Theft protection ... 36 Detaching the control panel ... 36 Attaching the control panel ... 37 Switching on/off ... 37 Adjusting the volume ... 38 Setting the power-on volume ... 38 Activating mute ... -
Page 6: Notes And Accessories
Please read these operating instruc- tions before using the equipment for the first time. The Blaupunkt editors are constantly working on making the operating in- structions clearer and easier to under- stand. However, if you still have any... -
Page 7: Removable Control Panel
NOTES AND ACCESSORIES The radio cannot be switched on/off using the remote control. Amplifier All Blaupunkt amplifiers can be used. Calibration microphone You can use the calibration microphone (available as an accessory) for the equalizer’s automatic sound calibration feature. CD changer... -
Page 8: Attaching The Control Panel
THEFT PROTECTION button 2. Press the The control panel latch mechanism opens. First, pull the control panel straight off the unit and then out towards the left. The unit switches off after the con- trol panel is removed. All the current settings are saved. Any cassette already inserted in the unit remains there. -
Page 9: Adjusting The Volume
You can find out from your Blaupunkt dealer which navigation systems can be used with your car radio. If a traffic information message is re-... -
Page 10: Automatic Sound
If, during a traffic announcement, a tel- ephone call arrives or the navigation system wants to output a spoken in- struction, the traffic announcement is interrupted and the telephone call/voice output can be heard. You can set the volume level at which telephone calls and the navigation voice output will first be heard. -
Page 11: Sound And Volume Distribution Settings
SOUND AND VOLUME DISTRIBUTION SETTINGS Sound and volume distribution settings Note: You can adjust the bass, treble and X- BASS individually for each audio source. Adjusting the bass Press the AUDIO button 9. “AUDIO 1” appears in the display. Press the softkey 4 assigned to the “BASS”... -
Page 12: Adjusting The Front/Back Volume Distribution (Fader)
VOLUME DISTRIBUTION Adjusting the front/back volume distribution (fader) To adjust the fader, press the AU- DIO button 9. “AUDIO 1” appears in the display. Press the softkey 4 assigned to the “FADE” display item. Move the joystick 7 up/right or down/left to adjust the front/back volume distribution. -
Page 13: Setting The Button Illumination Colour
ADJUSTING THE DISPLAY Move the joystick 7 up/right or down/left to adjust the brightness. Press the joystick OK 7 or the MENU button 8 to close the menu. The settings are saved. Night-time display brightness Press the MENU button 8. Press the softkey 4 assigned to the “DISP”... -
Page 14: Radio Mode
Radio mode This unit is equipped with an RDS radio receiver. Many of the receivable FM sta- tions transmit a signal that not only car- ries the programme but also additional information such as the station name and programme type (PTY). The station name appears in the dis- play as soon as it is received. -
Page 15: Selecting The Waveband / Memory Bank
RADIO MODE Note: REG must be separately activated/de- activated in the radio functions menu. Switching the RDS function on/off To use the RDS functions (AF and REG), press the TUNER button < in ra- dio mode. The radio functions menu appears in the display. -
Page 16: Tuning Into A Station
The memory banks are accessed in the following order: FM1, FM2, FM3 and FMT. Tuning into a station There are various ways of tuning into a station. Automatic seek tuning Move the joystick 7 down or up. The unit tunes into the next receivable station. -
Page 17: Storing Stations Automatically (Travelstore)
RADIO MODE Storing stations automatically (Travelstore) You can automatically store the six sta- tions with the strongest reception in the region (only FM). The stations are stored in the FMT memory bank. Note: Any stations that were previously stored in this memory bank are deleted in the process. -
Page 18: Optimising Radio Reception
Activating PTY To use the PTY function, press the TUNER button < in ra- dio mode. The radio functions menu appears in the display. Press the softkey 4 assigned to the “PTY” display item. If PTY is activated, the display shows the current programme type. -
Page 19: Setting The Radiotext Display
RADIO MODE Setting the radiotext display Some stations use the RDS signal to broadcast scrolling texts known as ra- diotexts. You can activate or deactivate the radiotext display. Press the TUNER button < in ra- dio mode. The radio functions menu appears in the display. -
Page 20: Cassette Mode
TRAFFIC INFORMATION Note: You will hear a warning sound: if you leave the reception area of a traffic information station that you are currently listening to. if, while listening to a CD, cassette or Multi-Media Card (depending on the car radio’s equipment), you leave the reception area of a traffic information station that you are tuned into and the subsequent au-... -
Page 21: Changing The Playback Direction
CASSETTE MODE Changing the playback direction To switch between the two playback di- rections SIDE A and SIDE B, press the softkey 4 assigned to the “REV” display item. Note: The direction of play is automatically switched over when the end of the tape is reached (autoreverse). -
Page 22: Fast Tape Winding
Resetting the tape counter The tape counter is automatically reset when the cassette is changed. Fast tape winding Fast-forwarding Briefly press the joystick 7 to the right. “FORWARD” appears in the display. Fast-rewinding Briefly press the joystick 7 to the left. -
Page 23: Cd Changer Mode (Optional)
To find out which CD changers / Com- pact Drive can be used with this unit, please refer to the "Accessories" chap- ter in these instructions or contact your Blaupunkt dealer. Note: Information on handling CDs, inserting CDs and operating the CD changer can be found in the operating instructions supplied with your CD changer. -
Page 24: Random Track Play (Mix)
Cancelling REPEAT To stop the current track or current CD from being repeated, keep pressing the softkey 4 that is assigned to the “RPT” display item until “RPT OFF” appears brief- ly in the display. Random track play (MIX) To play the tracks on the current CD in random order, Press the MENU button 8. -
Page 25: Cd Changer Mode
CD CHANGER MODE To save a name, press the softkey 4 assigned to the “NAME” display item. Deleting a CD name Listen to the CD whose name you want to delete. Press the MENU button 8. Press the softkey 4 assigned to the “CDC”... -
Page 26: Clock - Time
CLOCK - Time Setting the clock The clock can be set automatically us- ing the RDS signal. You can also set the clock manually if you cannot receive a radio station that supports this feature. Setting the clock automatically To set the clock automatically, press the MENU button 8. -
Page 27: Equalizer
EQUALIZER Equalizer This unit is equipped with a digital sound calibration feature (DSA – Digital Sound Adjustment). It provides you with three self-calibrating 5-band equalizers and five sound presets. The EQ1 - EQ3 equalizers can be cali- brated automatically with the help of a special calibration microphone. - Page 28 Note: The sound radiating from the loud- speakers must not be obstructed by any objects. All the loudspeakers must be connected. The microphone must be connected to the unit. To calibrate an equalizer, Press the DEQ+ button 5. Press the softkey 4 assigned to the “USER”...
- Page 29 EQUALIZER Manually adjusting the equalizer Notes on adjusting the settings We recommend you use a CD or cas- sette (depending on the car radio’s equipment) that you are familiar with for making changes to the settings. Before adjusting the equalizer, set the sound and volume distribution settings to zero and deactivate X-BASS.
- Page 30 Help adjusting the equalizer Sound Impression / problem Bass sound is too weak Dirty bass Booming sound Unpleasant pressure Sound very much in the foreground, aggressive, no stereo effect. Dull sound Little clarity No brilliance to the instruments EQUALIZER Measures Increase bass with Frequency: 32 to 160 Hz Level: +4 to +6 dB...
-
Page 31: Tmc For Dynamic Navigation Systems
Your car radio has a TMC output which you can use for connecting Blau- punkt navigation systems. You can find out from your Blaupunkt dealer which navigation systems can be used with your car radio. AMPLIFIER / SUB-OUT... -
Page 32: External Audio Sources
If you want to connect an external au- dio source, you will need an adapter cable. You can obtain this cable from a Blaupunkt dealer. Switching the AUX input on/off Press the MENU button 8. Press the softkey 4 assigned to the “SETP”... - Page 33 09-435 99236 01-4010 7320 01-89583 8394 01-576 9473 01-4598830 02-369 6464 40 2085 023-565 6331 66-817 157 01-2185 11111 916-467952 08-7501810 01-8471650 02-6130 0514 01-324 8756 022-8771260 0212-3460040 708-6817188 +604-6413 640 Blaupunkt GmbH CM/PSS 8 622 403 257 WWW: http://www.blaupunkt.com...
