Summary of Contents for Grundig GSS SMCIP 402 C

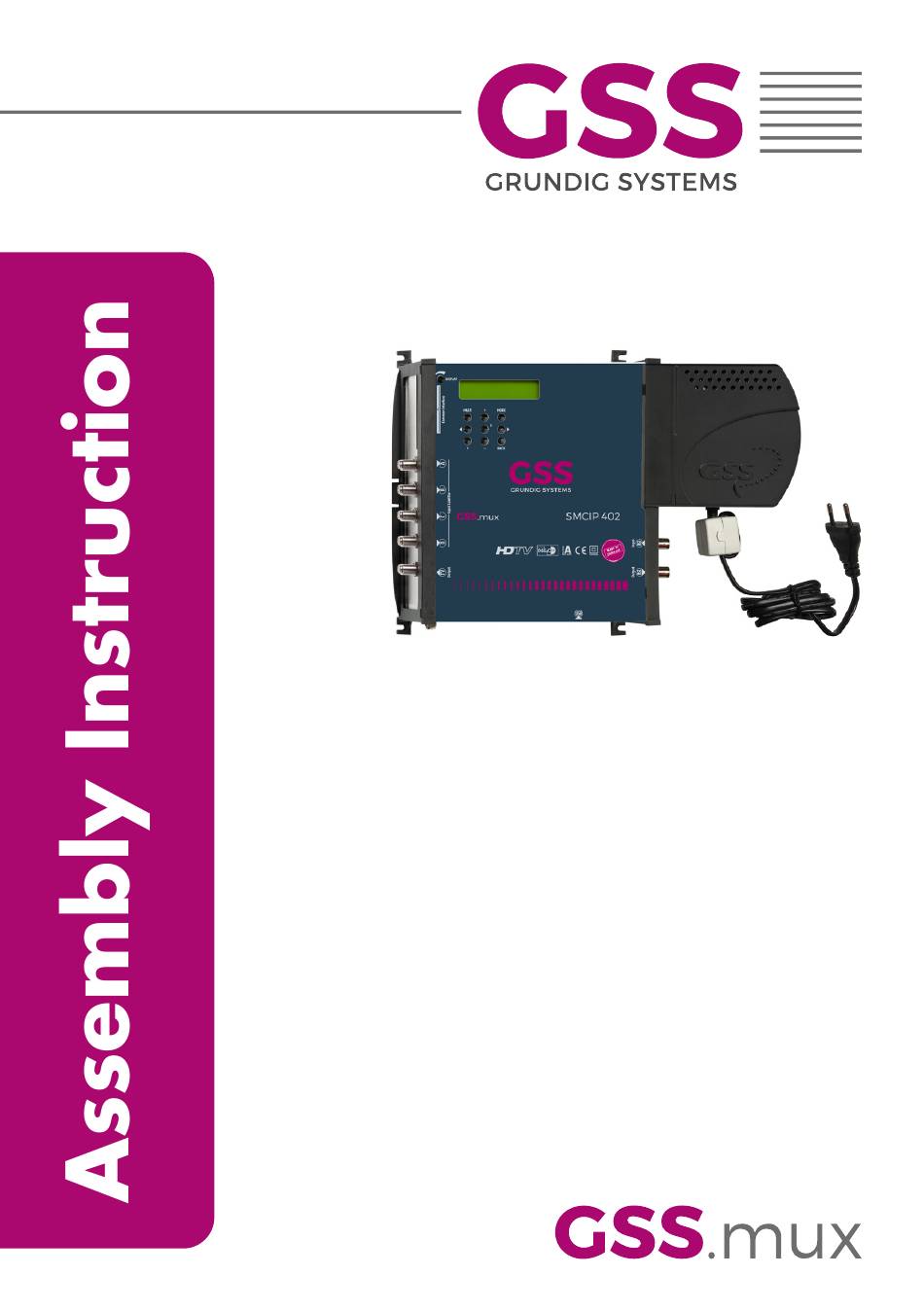

  • Page 1 SMCIP 402 C/T...

  • Page 2: Table Of Contents

    o n t e n t s 1 Safety regulations and notes ................ 4 2 General information ..................5 Packing contents ................5 Meaning of the symbols used ............5 Technical data ................6 Description ...................7 Block diagram ................7 General ..................8 3 Assembly ....................9 Installing the device ...............9 device overview ................10 Connecting the device ..............11 Potential equalisation (PE) .............11...
  • Page 3 Transmission parameters .............29 Transmitter identification .............30 ASI input selection ...............31 Input parameter ................31 LNB oscillator frequency / control voltage .........32 Input symbol rate ..............33 Input frequency ..............34 Operation with a CA module ...........34 Station selection ..............34 Output data rate ................36 Transport stream ID and ORGNET-ID ..........37 CA data packets .................38 PID monitoring ................38...

  • Page 4: Safety Regulations And Notes

    a f e t y r e g u l a t i o n s a n d n o t e s • This device is subject to the provisions of protection class II • Do not operate the device without equipotential bonding! •...

  • Page 5: Packing Contents

    Electronic devices should never be disposed of in the household rubbish. In accordance with directive 2002/96/EC of the European Parliament and the European Council from January 27, 2003 which addresses old electronic and electrical devices, such devices must be disposed of at a designated collection facility. At the end of its service life, please take your device to one of these public collection facilities for proper disposal. e n e r a l i n f o r m a t i o n 2.1 P aC k i n g C o n t e n t s 1 SMCIP 402 or SMCIP 402 T 1 Assembly instructions 2.2 m e a n i n g...
  • Page 6 2.3 t e C h n i C a l data The devices meet the following EU directives: 2006/95/EC, 2004/108/EC, 2011/65/EU The product fulfils the guidelines and standards for CE labelling (page 42). Unless otherwise noted all values are specified as "typical". RF input DVB-S2 Frequency range: ............

  • Page 7: Block Diagram

    RF output (SMCIP 402 T) Frequency range: ..........42.0 MHz … 868.0 MHz Channels: ............C5 … C12, C21 … C69 Output level: ................102 dBμV Output impedance: ................. 75 Ω Connections SAT inputs: ................4 F sockets RF output: ................1 F socket ASI input: ................1 BNC socket ASI output: .................
  • Page 8 —> Note the maximum possible output data rate of 50.8 Mbits/s (DVB-C) resp. 31.6 Mbits/s (DVB-T), which depends on the output parameter settings! If only the ASI output is needed, the modulator can be switched off. —> Then the maximum output data rate is 108 Mbit/s. e n e r a l As signal source four Tuners (or instead of Tuner D the ASI input signal) are available.

  • Page 9: Assembly

    s s e m b l y 3.1 i n s ta l l i n g t h e d e v i C e – Ensure the device is mounted so it will not be able to vibrate. Avoid, for example, mounting the device onto a lift shaft or any other wall or floor construction that vibrates in a similar way.

  • Page 10: Device Overview

    3.2 d e v i C e ov e rv i e w 4 3 5 Assembling slots PE connection terminal Display Display contrast control Control buttons Slot for CA module Micro USB socket (update) SAT tuner inputs A…D RF output ASI input ASI output - 10 -...

  • Page 11: Connecting The Device

    3.3 C o n n e C t i n g t h e d e v i C e (Pe) ot e n t i a l e q ua l i sat i o n Equalise the potential (PE) in accordance with IEC/EN/DIN EN 60728. • Connect the PE connection terminal to a PE rail (supplied by customer) using a PE wire (Cu 4 mm - 6 mm...
  • Page 12 3.4 r Ca e t r o f i t t i n g m o d u l e The device is equipped with a common interface. It allows you to connect a CA module for various scrambling systems and service providers. Scrambled channels can only be descrambled with a CA module suitable for the scram- bling system and the corresponding smart card.

  • Page 13: Firmware

    3.5 f i r mwa r e i r mwa r e q u e ry When the device is switched on, the two-line LC dis- DVB-S => DVB-CT play shows the firmware version. – – – – i r mwa r e u P dat e The firmware of the device can be updated via the micro USB socket using a PC and the software "BE-Flash".
  • Page 14 • Start the "BE-Flash" application (BEflash.exe) and select the corresponding interface (COM port). • Click on button • Select the .hex file you had unpacked before and click on button • Click on button —> The update progress is displayed. - 14 - SMCIP 402 C/T...
  • Page 15 • Close the "BE-Flash" application. • Uninstall the COM port driver from the device manager after the update is finished successfully! —> Activate the COM port driver (in this example COM4). Select in menu Action or via the context menu the menu item Uninstall. • Disconnect the USB connection. - 15 - SMCIP 402 C/T...

  • Page 16: The Control Panel At A Glance

    C o n t r o l P a n e l g l a n C e 4.1 C o n t r o l Pa n e l The key pad on the device is used to scroll through the menus step-by-step: MODE scrolls forward through the menus BACK...
  • Page 17 r o g r a m m i n g 5.1 n ot es f r e q u e n C y s e t t i n g If you fit in the "new" transponder to an existing antenna plant, you have to set the output frequency to a unused channel.
  • Page 18 5.3 P ro g r a m m i n g Pro C e d u r e Page 19 DVB-S => DVB-CT Ein / On Bedienhinweise Operating Hints abcd "blättert" Menüs vorwärts scrolls forward through the menu ABCD = Signal "blättert"...
  • Page 19 MULTI: alle ein/aus = verschlüsselt/scrambled MULTI: all on/off DATARATE DATARATE aktuell benötigt/max. current needed/max. OVER 28 / 50.8 OVER 28 / 31.6 OVER = Overflow TS/ONID 0x0001 0x0100 CA-MODE Data –> CA 204/188 Bit 01/05 MENU PID Check Vid => Information *) off / Vid / All Page 18...
  • Page 20 tat u s m e n u The status menu informs about… – the device version DVB-S => DVB-T DVB-S => DVB-C – – – – – – – – SMCIP 402 C SMCIP 402 T – the software version DVB-S =>...

  • Page 21: Output Data Rate

    —> The "Output mode" – "OUTPUT" menu is activated. MODE • Press the button. —> The "Output parameter" – "OUTPUT" menu is activated. u t P u t m o d e The output transport stream is transferred to the ASI output as well as to the modulator.
  • Page 22 – dvb-C u t P u t Pa r a m e t e r l e v e l v e rs i o n —> This menu is only displayed, if RF+ASI was selected before. In this menu you adjust the output level of the modulator and you have access to the submenus for the modulator configuration.
  • Page 23 , qam u t P u t s ym b o l r at e m o d u l at i o n In this menu you can set the output symbole rate, the QAM modulation and invert the user signal. DVB-C MODE 6900 QAM...
  • Page 24 – dvb-t u t P u t Pa r a m e t e r l e v e l v e rs i o n —> This menu is only displayed, if RF+ASI was selected before. In this menu you adjust the output level of the modulator and you have access to the submenus for the modulator configuration.
  • Page 25 Cofdm Pa r a m e t e rs The tables below show the dependence of the transmittable net data rate on the settings of the COFDM parameters. The conversion of the net data rate into the gross data rate displayed in the "Output data rate"...
  • Page 26 If the bandwidth is decreased by 1 MHz the transmittable data rate is de- creased by approx. Net data rate [kbit/s] at a bandwidth of 7 MHz Guard interval Modulation Code rate 4354 4838 5123 5278 5806 6451 6830 7037 QPSK 6532 7257 7684 7917 7257 8064 8538 8797 7620 8467 8965 9237...
  • Page 27 Transmission parameters for DVB-T at a bandwidth of 8 MHz Transmission mode Symbol duration T [µs] Carrier space ∆ f [kHz] 4.4643 2048 carrier theoretical 1705 carrier real Used bandwidth [MHz] 7.61 Total symbol duration [µs] Guard interval T [µs] Transmission parameters for DVB-T at a bandwidth of 7 MHz Transmission mode Symbol duration T [µs] Carrier space ∆ f [kHz] 4.4643 2048 carrier...
  • Page 28 u t P u t s i g n a l In this menu, you can set the bandwidth, the carrier modulation and the spectral position of the output signal. DVB-T MODE 8MHZ QAM64 Bandwidth of the output signal To transmit the output signal in the channel range of C21 to C69 a bandwidth of 8 MHz can be used.
  • Page 29 —> The "Transmission parameters" – "MODE" submenu is activated. r a n s m i s s i o n Pa r a m e t e rs In this menu you can set the code rate and the guard interval. DVB-T MODE C7/8...
  • Page 30 r a n s m i t t e r i d e n t i f i C at i o n At terrestrial transmission an identification is referred to each COFDM modu- lated transmitter. When COFDM modulated signals are fed into cable net- works this identification is not necessary usually.
  • Page 31 asi i n P u t s e l e C t i o n In this menu you select whether you would like to use the ASI input instead of tuner D. INPUT INPUT INPUT => D => OUTPUT •...
  • Page 32 lnb os C i l l ato r f r e q u e n C y C o n t r o l vo ltag e In this menu set the oscillator frequency of the LNB used and, if necessary, a LNB control voltage.
  • Page 33 —> GSS Multiswitches must be triggered by the following DiSEqC co- mands: Input group A —> DiSEqC command S01 Input group B —> DiSEqC command S02 Input group C —> DiSEqC command S03 Input group D —> DiSEqC command S04 Example: In order to trigger input group B for horizontal polarisa- tion and high band S02Hh must be set.
  • Page 34 n P u t f r e q u e n C y In this menu you set the input frequency of the desired transponder in MHz. FREQ 11244 -1.8 Once the RF receiver has synchronised to the input signal, any offset to the target frequency is displayed in MHz, e.g.
  • Page 35 01/14 ORF SPORT+ —> All stations from the channel strip will be read, and then displayed with name and station type. —> If no station is found, the following message will appear in the dis- play: "FILTER no Service". In this case, check the configuration of the antenna system, as well as the previously adjusted settings for the device.
  • Page 36 • Press button + twice to descramble a station (indi- 01/14 cation "X"). MODE • Press the button. —> Return to the "Input parameter" main menu – "INPUT". MODE • Press the button. —> The "Output data rate" – "DATARATE" main menu is activated. u t P u t data r at e...
  • Page 37 id orgnet-id r a n s P o r t s t r e a m a n d If a completely new, additional transponder is generated, IDs (ORGNET-IDs) must be assigned to it, in order that a station search of connected Receivers can be performed faultlessly.

  • Page 38: Ca Data Packets

    data PaC k e t s In this menu you can adapt the size of the data packets, which are transmitted to the CA module (depending on the CA module). CA-MODE • Use +/– buttons to set the size of the data packets (188/204 Bit). —>...
  • Page 39 —> Access to this menu is only possible with installed CA module and inserted smart card. m o d u l e The menu varies according to which CA module you are using. For this rea- son, please refer to the operating manual of your particular CA module. The relevant information is shown in the display of the device.

  • Page 40: Saving Data

    aC to ry r es e t In this menu you can reset all settings to the factory defaults. FACTORY FACTORY Defaults => STORE => S • Press the > button. —> The factory defaults are invoked. —> By pressing the MODE button, you will be returned to the menu item "Output settings"...
  • Page 41 h a n n e l a n d f r e q u e n C y t a b l e s Advice for a frequency grid (8 MHz) in the band I/III 42.00 82.00 146.00 186.00 226.00 266.00 50.00 114.00...
  • Page 42 Declaration of CE conformity GSS Grundig Systems GmbH • Beuthener Straße 43 • D-90471 Nuremberg Phone: +49 (0) 911 / 703 8877 • Fax: +49 (0) 911 / 703 9210 www.gss.de/en • info@gss.de CLASS CLASS Service: Phone: +49 (0) 911/703 2221; Fax: +49 (0) 911/703 2326; service@gss.de Alterations reserved.
