- Page 1 TYPHOON USER MANUAL Preliminary – January 2009 Triotech Amusement Inc. 190 Des Industries Lavaltrie, Quebec (Canada) J5T 3R2 Tel.: 450.586.5009 Toll free: 1-888-IN-LINE-4 Fax: 450.586.0299 e-mail: service@trio-tech.com...

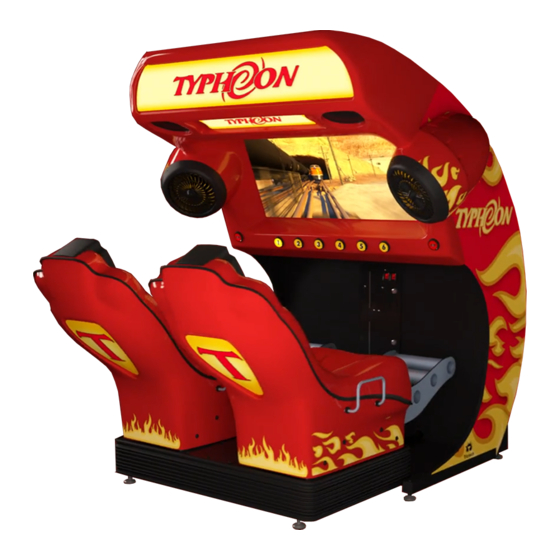

- Page 3 Dear valued customer, Congratulations and thank you for purchasing TRIOTECH AMUSEMENT’s Typhoon. You will not be disappointed with your purchase. Your 2-seat theater is coin-operated and does not require attendant. Featuring 4.1 Surround Sound and a 42” LCD screen this dual-actuator motion platform is the most realistic simulation avail- able in coin-op.
- Page 5 Reception Typhoon reception CAUTION Typhoon requires a dedicated 120V. 15 amp circuit or 220V. 7.5amp or the machine may experience sporadic technical difficulties. Your Typhoon should not share a breaker with other deluxe or motion based cabinets. Determine Optimum Location The game location must be free of: exposure to direct sunlight, high humidity, dust, salt mist, high heat, or extreme cold.
- Page 6 Reception LIST OF SUPPLIED ASSEMBLY PARTS Package Content Item Description Photo/ Image Qty. Main cabinet Motion seat module Header assy Fan’s cover (right &left) Hardware box (inside of the coin door; the access is from the front of the machine; a bag with the necessaries keys is attached to the coin door's door)
- Page 7 Reception HARDWARE BOX MANIFEST IMAGE DESCRIPTION SIZE QTY. SPARE SD-100-0215 FLAT WASHER NEORENE PAN HEAD QUADREX SD-100-0187 DRIVE #10-24 x 3/4" SD-100-0216 FLAT WASHER NEOPRENE SD-100-0190 PAN HEAD QUADREX DRIVE 1/4-20 x 3/4" SD-100-0328 LOCK WASHER 1/2" SD-100-0047 FLAT WASHER 1/2 “...
- Page 8 NECESSARY TOOLS Installation TO COMPLETE ASSEMBLY Tools Description /Image Application Forklift Capacity over 1000 lb Put the carrying package in the Appropriated long forks attached (~65”) place Socket 3/4" Install the seat module (pg.14) Wrench 3/4” Adjust the height of the cabinet and seats (pg.9 and 14) Screwdriver Install the fan’s covers on to the...
- Page 9 Installation SPACE REQUIREMENTS For installation, the required space is ~ 15’ X 10’ When fully assembled, the required space will be ~ 7.5’ X 8’...
- Page 10 Installation Uncrating 4-Pull the seat out of the cabinet about 6’’ - Start by removing the header assem- or 15cm. Then pull the 3 cables out of the bly from the seat. hole one by one as shown in the picture below.
- Page 11 Installation Header STEP 2. Header assembly Install the two fan covers (right and left) to the cabinet Tools Fasteners Reference Screwdriver no.2 Flat neoprene washer #10”(14X), Screw #10-32 x 3/4”(14X)
- Page 12 Installation Header STEP 3. Header installation Place the header on the machine as shown Tools Fasteners Reference Screwdriver no.2 Flat neoprene washer #10”(12X), Screw #10 (Down side, upside ) -32 x 3/4”(12X) Screwdriver no.2 BAG/BIN NO: Flat neoprene washer (right and left side fan’s cover) #14”(12X), BAG/BIN NO : Screw 1/4"-20x 3/4”(12X)
- Page 13 Installation Header - Open the back service door. - Connect the header cables. There are three connectors; one MOLEX, 9 pin and one 15 pins + one NEMA /standard 110V. Once connected, close & lock top door.
- Page 14 Installation Seat Align seats for wires to easily run through hole on lower right part of cabinet.
- Page 15 Installation Seat Fasten seats to cabinet using 6 hexagonal head screw 1/2" -13 x 4”, flat and lock washer. Level seats using adjustable feet Tools Fasteners Reference Ratchet 3/4" Flat washer 1/2”( 6X), lock washer 1/2 (6X), Hex. Screw 1/2”-13 x 4”( 6X) Wrench 3/4"...
- Page 16 Installation Seat Through lower right (back of cabinet) door, connect wires you ran. (Three connectors: NEMA /standard 110V to electric box, RJ45 to Opto board (only one with RJ45 connection) and the Molex 9 pin con- nector to its female connector Opto-card Main electric box Molex 9-pin...
-
Page 17: Installation
Installation Installation Before you connect, make sure main switch is in off position. Connect power cord to cabinet and wall outlet. Then turn the main switch ON... -
Page 18: Operator Setting
Configuration Operator Setting Accessing operator settings interface is done by opening the coin mech door and pushing the micro switch attached to the coin mech (while in attract mode only). - Page 19 Configuration Operator Setting To access the statistic mode screen, press the micro switch once (or toggle micro switch until you reach this screen). Amount of credits inserted into game in lifetime. Amount of money inserted into game in lifetime. Value of one credit Actuator usage time since game installed Actuator usage time since game installed Revenue from each movie installed...
- Page 20 Configuration Operator Setting Use the large dash selection buttons 1 through 6 to change configurations. To change any of the options, press the appropriate button until the desired setting is reached. To return to a previous setting, keep toggling the button until it reaches the end of the settings;...
- Page 21 Configuration Dollar bill validator information Typhoon does not ship equipped with a DBV, however it is pre-wired to accept one and we suggest the installation of one of the models below. This door accepts Mars upstacker bill validator with compact fitted Bezel (up to 10” deep)
- Page 22 Maintenance Actuator replacement Actuator replacement procedure 1. Unscrew the 2 bolts holding the defective seat (under foot rest) 2. Flip seat back (protect head rest by covering floor with something soft) 3. Remove cover plate between the 2 seats 4. Open cover of control box, and detach the actuators’s 2 connectors from the control box board (see page 38) 5.
- Page 23 Maintenance Actuator replacement Actuator replacement procedure 6. Unscrew the 4 hex socket screws from inside the actuator positioning hole 7. Unscrew the 5 hex socket screws attaching the actuator to the seat frame 8. Remove actuator 9. Reverse procedure to re-reinstall new actuator...
- Page 24 Maintenance Replacing a drive assembly Remove drive assembly from motor. Shipping a drive assembly is the cheapest way to get the actuator repaired as you save on shipping (weight).
- Page 25 Maintenance Replacing a drive assembly...
- Page 26 Maintenance Replacing control box Remove control Unplug all con- Unscrew cable Pull cables out box cover. nectors. plates. of box. Remove and replace control box.
- Page 27 Diagnostic screen and error codes Troubleshooting Continued • SYNCRONIZED No problem reported with this actuator • SYNCRONIZING Move to box below • NOT RESPONDING Goto page 43 • Software (overweight)Command OverRunFail State Goto page 36 • Software (travel)Command OverRunFail State Goto page 36 •...
- Page 28 Software (OverPos) Software (Travel) Command OverRun Fail State Cause - Mechanical fault -Unplug the Typhoon. -Lift the back of each seat to see if they move freely. DOES NOT MOVE FREELY MOVES FREELY -Re-seat actuator on side the error appeared -Replace DRIVE ASSEMBLY (diagnostic screen).
- Page 29 Diagnostic screen and error codes Troubleshooting Continued Software (Fail Hall) Software (Fail encoder) Cause - Electrical fault -Replace whole ACTUATOR on side error appears. Section 3-3.
- Page 30 Diagnostic screen and error codes Troubleshooting Continued Software (Timeout) Cause - Actuators have not received data from computer for more than one minute -Unplug machine -Wait 1 minutes -Re-plug machine...
- Page 31 Diagnostic screen and error codes Troubleshooting Continued Software Software Command OverRun Fail State Cause • Machine is sharing breaker with other devices. • Machine is not receiving at least 115volts. -Verify voltage I have more then 114volts. I have less then 115volts. Go to Step B Plug machine into other outlet with at 115volts.
- Page 32 Diagnostic screen and error Troubleshooting codes Continued Software (overPos) Command OverRun Fail State Software (fail hall) Command OverRun Fail State Cause - Mechanical, electrical and/or software fault -Remove Actuator from the side error appears on. (Sec 3-3) -Verify condition of Coupler (small aluminum cylinder Linking Drive Assembly and Motor.
- Page 33 Diagnostic screen and error codes Troubleshooting Continued Command OverRun Fail State - When error appears as is, without the word software, no problem is detected on this actuator.
- Page 34 Diagnostic screen and error codes Troubleshooting Continued Not Responding Cause - No communication or no power going to actuators. Step 1 -Open service door on bottom left in the back of the game. -Look inside at Actuator control Board. Light is RED or GREEN (LED) No light (LED) Light is YELLOW (LED) -Check power on board power...
- Page 35 Diagnostic screen and error codes Troubleshooting Continued Not Responding Step 2 -Open service door on bottom left in back of the game. -Look inside and test Power on Power Outlet There is Power There is no power -Remove seat assembly -Open Outlet and repair connections.
- Page 36 - One or more Actuator is faulty, but does not generate an error in the Diagnostic Screen. -Get mouse and keyboard out. -Press ESC. -Go to WINDOWS EXPLORER. -Copy D:\Typhoon.log on floppy disk. -Email file at SERVICE@TRIO-TECH.COM -Wait 10 minutes and call Tech Support @ 1-888-465-4634...
- Page 37 Parts Parts...
-
Page 38: Seat Assembly
Parts Seat assembly ITEM PART NUMBER DESCRIPTION SD-450-0003 PIVOT ASSEMBLY SD-450-0008 ACTUATOR MOTOR AKM 24D SD-450-0022 DRIVE ASSY AC10 SD-250-0068 ACTUATOR PLATE SD-400-0010 SKIRT, RUBBER BASE SD-900-0015 CAP PIVOT PISTON SD-450-0013 CONTROL BOX "B" SD-350-0015 FIBER GLASS SEAT SD-500-0040 HEAD CUSHION SD-500-0039 BACK REST CUSHION SD-700-0070... -
Page 39: Header Parts
Parts Header parts ITEM PART NUMBER DESCRIPTION SD-400-0071 HEADER SD-400-0075 FAN CASING, RIGHT SD-400-0074 FAN CASING, LEFT SD-700-0065 SPEAKER 5.25_2 WAY SD-250-0336 CABINET SPEAKER GRILL SD-150-0091 RED BUTTON SD-150-0090 BLUE BUTTON SD-400-0072 HEADER TOP COVER SD-400-0077 FAN GRILL IMT-0269 HEADER HARNESS SD-650-0118 HEADER BACKLITE SIGN SD-650-0117... - Page 40 Parts Cabinet PART NUM- ITEM DESCRIPTION SD-150-0035 COIN DOOR IMT-0270 COMPUTER ASSEMBLY SD-150-0098 5-12v POWER SUPPLY SD-150-0297 I/O INTERFACE SD-150-0370 10A TRANSFORMER IMT-0303 BLOWER CONTROLLER SD-700-0117 4.1 SOUND AMPLIFIER IMT-0040 ACTUATOR CONTROL BOARD SD-700-0075 SUB-WOOFER 6-1/2 IMT-0271 WIRING HARNESS (CABINET) SD-700-0129 MONITOR 42"LCD SD-150-0436...
- Page 41 Electrical...
- Page 42 Electrical...
- Page 43 Electrical...
- Page 44 Electrical...
-
Page 45: Technical Support
Technical Support 190 Des Industries Lavaltrie, Quebec Canada J5T 3R2 1-888-IN-LINE-4 Fax: 450.586.0299 www.trio-tech.com info@trio-tech.com... - Page 46 LIMITED WARRANTY Triotech warrants to the buyer, for a period of (1) one year starting on the day of product delivery, all parts against any manufacturer’s defect. During this warranty period, Triotech agrees to replace defective parts. Installation costs onsite are at the charge of the buyer.
