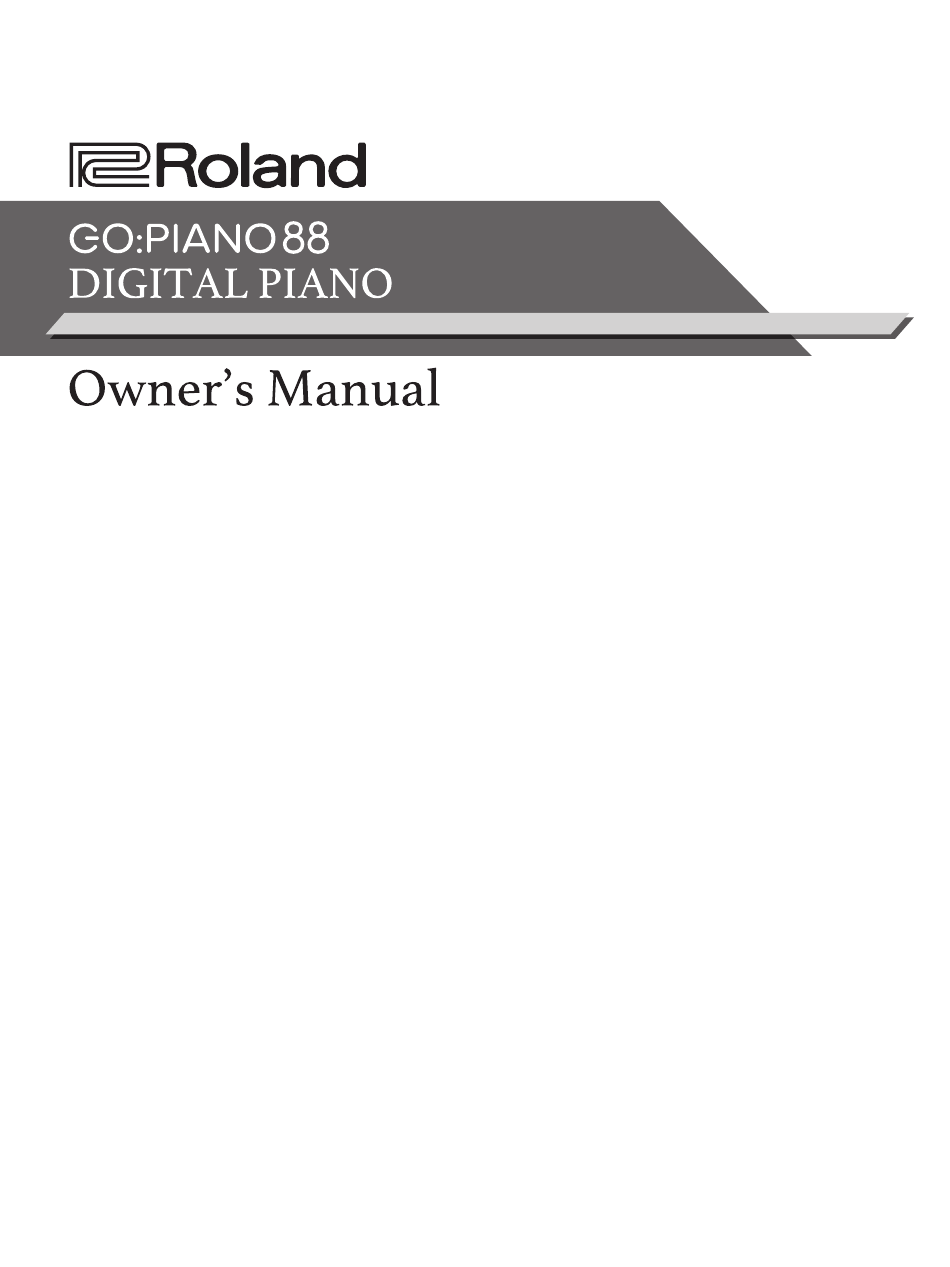

Roland GO:PIANO88 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Roland GO:PIANO88

Summary of Contents for Roland GO:PIANO88

  • Page 2 Purchasers of this product are NOT permitted to extract said content in original or modified form, for the purpose of distributing recorded medium of said content or making them available on a computer network. Roland is an either registered trademark or trademark of Roland Corporation in the United States and/or other countries.

  • Page 3: Table Of Contents

    Table of Contents Panel Description Front Panel.................................4 Rear Panel..................................5 Setup Connecting to Power Supply............................5 Setting the Music Rest..............................5 Connections Connecting a Pair of Headphones..........................6 Connecting an Audio Equipment..........................6 Connecting a Pedal..............................6 Connecting a Computer..............................6 Turning the Power On or Off............................7 Adjusting the Master Volume..........................7 Playing Demo Songs..............................7 Tones...

  • Page 4: Panel Description

    Panel Description Front Panel 1. [POWER] Switch 9. [VOLUME] Keys Turn the power on or off. Press and hold [FUNCTION] or [METRONOME], then press one of these keys to adjust the metronome 2. [VOLUME] Knob volume. Adjust the master volume. 10.

  • Page 5: Rear Panel

    Panel Description Rear Panel 16. DC IN Jack 18. SUSTAIN Jack Connect the specified power adaptor. Connect the included pedal. 17. PHONES/OUTPUT Jack 19. USB Jack Connect a pair of stereo headphones or Connect to a computer. external audio equipment. Setup Connecting to Power Supply You can power the instrument either by using the included power adaptor...

  • Page 6: Connections

    Connections Connecting a Pair of Headphones Plug a pair of standard stereo headphones in the PHONES/OUTPUT jack. Turn on the Phones Sense. Press and hold [FUNCTION], then press the [F7] key to turn on the Phone Sense function. When headphones are connected, the internal speakers system will be muted.

  • Page 7: Turning The Power On Or Off

    Turning the Power On or Off Make sure the instrument is properly connected to power supply. Rotate the [VOLUME] knob counter-clockwise to set the master volume level to minimum. Press the [POWER] switch. The button LED will light up, indicating the instrument is powered on.

  • Page 8: Tones

    Tones Selecting a Tone The instrument features 4 tones. Please refer to Tone List for details. Press one of the [TONE] buttons to select a desired tone. The button LED of the selected tone will be lit. Layering Two Tones The Dual mode allows two different tones to be layered together, creating a more full and rich sound.

  • Page 9: Reverb

    Reverb Press and hold [FUNCTION], then press one of the [Reverb] keys to set the reverb level range from 0 to 10. Press and hold [FUNCTION], then press the black key in the [Reverb] keys to restore the default setting. When the reverb level is set to "0", there will be no reverb effect.

  • Page 10: Tempo

    Tempo You can set the tempo in the following ways: Press and hold [FUNCTION] or [METRONOME], then press one of the [TEMPO] keys to set the desired tempo. Press and hold [METRONOME], then press the keys marked [1~9~0] to set the tempo value. For example, press [0], [6], [4] in sequence to enter a tempo value of 64.

  • Page 11: Twin Piano

    Bluetooth Pairing The Bluetooth function is turned on by default. You can pair the instru- ment with an external Bluetooth device. The instrument’s Bluetooth Audio name: GO:PIANO88 AUDIO. The instrument’s Bluetooth MIDI name: GO:PIANO88. Disable Bluetooth Connection Press and hold [FUNCTION], then press the key marked [AUDIO] to disconnect Bluetooth Audio.

  • Page 12: Auto Power Off

    Auto Power Off The instrument will automatically shut down after 30 minutes of inactivity. You can disable this function or change the time setting. To disable this function: press and hold [FUNCTION], then press the key [C8] (the first key to right side of the keyboard). To set the time to 240 minutes: press and hold [FUNCTION], then press the key [B7].

  • Page 13: Specifications

    Specifications Keyboard Connections 88 Keys with Touch Response USB MIDI, Bluetooth Keyboard Interaction & Expansion 3 types, Off Phones/Output Standard stereo Touch Response Tones Pedal Sustain Polyphony (max.) USB MIDI Tones 4 panel Power Supply 　 Layer Power DC12V / 2A Twin Piano Battery Six "D-size"...

  • Page 14: List Of Operations (Button + Key)

    Appendices List of Operations (Button + Key) [FUNCTION] + Key C1 D1 E1 F1 G1 C2 D2 E2 F2 G2 B2 C3 D3 E3 F3 G3 A3 B3 C4 D4 E4 F4 G4 A4 B4 C5 D5 E5 F5 G5 A5 B5 C6 D6 E6 F6 G6 A6 B6 C7 D7 E7 F7 G7 A7 B7 C8 Bluetooth MIDI Channel Metro.

  • Page 15: Midi Implementation Chart

    Appendices MIDI Implementation Chart True...
  • Page 16 GO PIANO88_G08...
