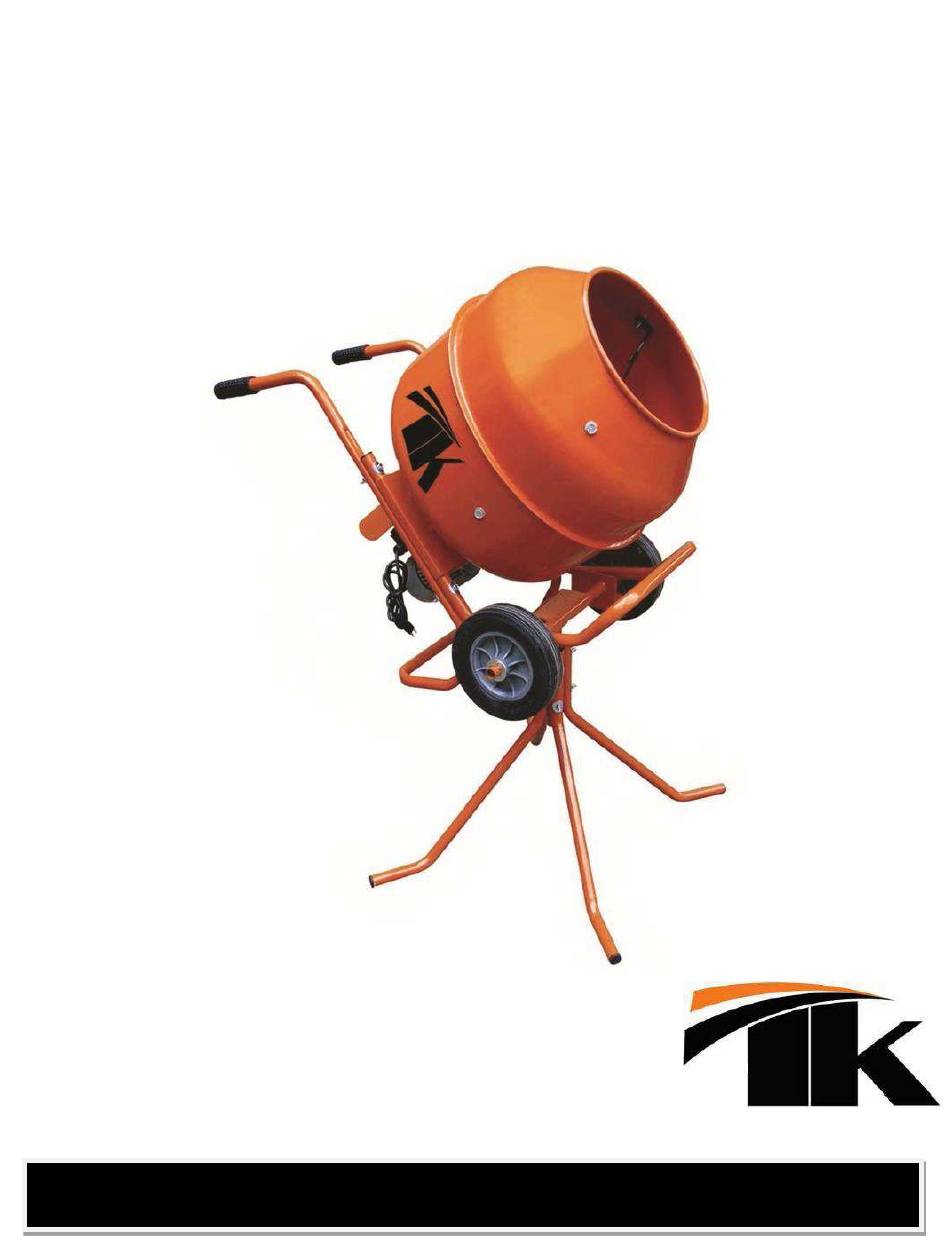

- Page 1 Operator’s Assembly and Parts Manual Max Mix Concrete Mixer It is the OWNER´S RESPONSABILITY to communicate information on the SAFE USE and OPERATION of this machine to the operators.
- Page 2 MAX MIX SERVICE & ASSEMBLY MANUAL You will need the manual for safety warnings and precautions, assembly instructions operating and maintenance procedures, parts list and diagram. Keep your invoice with this manual for your record. Keep manual and invoice in a safe and dry place for future reference.
- Page 3 15. Check for damaged parts. Before using this equipment, any part that appears damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment and biding of moving parts: any broke parts or mounting fixtures: and any other condition that may affect proper operation.
- Page 4 ASSEMBLY 1. Using the M8 x 70 mm long bolts, nuts & 12. Mount the motor Cover. washers attached the rear leg stand. 13. Next, slide the drum onto the driveshaft, then 2. Fit the 2 wheels to wheel axles and tighten anchor the drum in place with the T-bolt and T- with hex bolt M8 x 16 bolt and washer.
- Page 5 8. Place the rubber gasket to the upper drum 10. Use the M8 x 16 hex bolt, washer & nut to making sure the holes align in both drum secure each mixer drum half and tight the halves. bolts. 11. Final Product. 9.
-
Page 6: Parts Breakdown
PARTS BREAKDOWN... - Page 7 BOLTS BREAKDOWN...
- Page 8 3201255 DRUM AND ENGINE COVER WASHER M8 3206152 DRUM AND ENGINE COVER HEX BOLT M8 X 20 MAX MIX PEDESTAL LEG MAX MIX PEDESTAL LEG UNION TUBE PEDESTAL BOLT PEDESTAL WASHER PEDESTAL HEX BOLT PEDESTAL SUPPORT BASE PEDESTAL BASE L BOLT...
