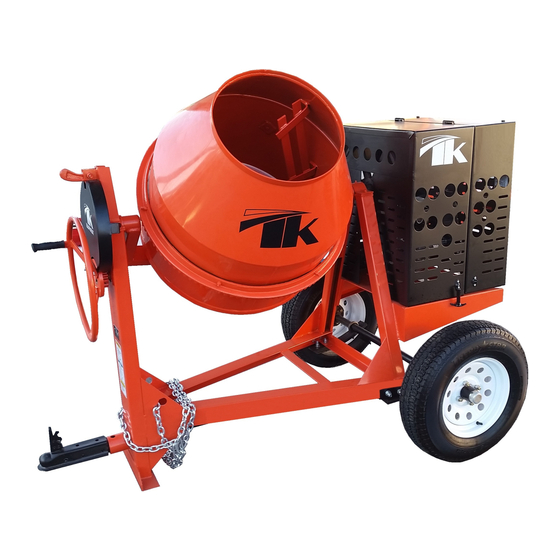

- Page 1 Operator’s Safety and Service Manual Concrete Mixer www.discount-equipment.com CM12 It is the OWNER´S RESPONSABILITY to communicate information on the TABLE OF CONTENTS SAFE USE and OPERATION of this machine to the operators. 09052014...
- Page 2 Jax, Curtis, Gehl, Heli, Honda, ICS/PowerGrit, Puckett, Waldon, ASV, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, Gorman Rupp, CH&E, Cat Pumps, Comet, General Pump, Giant,AMida, Coleman, NAC, Gradall, Square Shooter, Kent, Stanley, Tamco, Toku, Hatz, Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air, Small Line, Wanco, Yanmar...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1.Serial Number Location ..........3 2.Parts Ordering Procedure .......... 3 3.Operating Instructions ..........4 4.Safety Precaution ............6 5.Safety Notice & Decals ..........7 6.Safety Decal Location ..........9 7.Before Operating............11 8.Operation Instruction..........11 9.Starting Engine ............12 10.Service Instructions .......... -
Page 4: Serial Number Location
1. SERIAL NUMBER LOCATION The model/serial number decal is located on the shroud assembly (black). (Write model number) (Write serial number) The unit’s year of manufacture can be determined by the serial number. Contact your nearest sales branch or for more information. This Unit warranty is stated in this Operational and Safety manual on page 16. -
Page 5: Operating Instructions
3. OPERATING INSTRUCTIONS INTRODUCCION Mixers are intended for use in several applications. They are powered by four cycle gas engines or electric motors and are available in different sizes and manufacturers. This Operation manual contains only standard parts. Variations of these parts as well as other special parts are not included. - Page 6 10. Install the tow bar through the front leg. 11. Insert the pin through the front leg and the front hole in the tow bar. Secure the pin with a hairpin cotter. Insert the 3/4" bolt through the rear hole and secure with a lock washer and nut. Tighten securely.
-
Page 7: Safety Precaution
4. SAFETY PRECAUTIONS READ AND STUDY THE FOLLOWING SAFETY INFORMATION BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT. IN ADDITION, ENSURE THAT EVERY INDIVIDUAL WHO OPERATES OR WORKS WITH THIS EQUIPMENT IS FAMILIAR WITH THESE SAFETY PRECAUTIONS. WARNING - LETHAL EXHAUST GAS! An internal combustion engine discharges carbon monoxide, which is a poisonous and odorless invisible gas. -
Page 8: Safety Notice & Decals
5. SAFETY NOTICE & DECALS SAFETY NOTICE & DECALS IMPORTANT NOTICE IMPORTANT NOTICE The "SAFETY ALERT SYMBOL" is used to call attention is used to call attention to items or operations that may be dangerous to items or operations that may be dangerous to those operating or working with this equipment. -
Page 9: Important Notice
5. SAFETY NOTICE & DECALS IMPORTANT NOTICE The "SAFETY ALERT SYMBOL" is used to call attention to items or operations that may be dangerous to those operating or working with this equipment. These symbols can be found throughout the manual and on the unit itself. Please read these warnings and cautions carefully. READ SAFETY DECALS CAREFULLY Carefully read and follow all safety decals. -
Page 10: Safety Decal Location
6. SAFETY DECAL LOCATION SAFETY DECAL LOCATION... - Page 11 6. SAFETY DECAL LOCATION When is electric...
-
Page 12: Before Operating
7. BEFORE OPERATING REMEMBER! It is the owner´s responsibility to communicate information on the safe use and proper operation of this unit to the operators. Before operating, review SAFETY PRECAUTIONS listed on page 5 of this manual. Familiarize yourself with the operation of the unit and confirm that all controls function properly BEFORE starting engine. -
Page 13: Starting Engine
OPERATING 1. If using a gas engine, allow the engine t If using a gas engine, allow the engine to warm up then move the throttle to the fast o warm up then move the throttle to the fast position. 2. -
Page 14: Service Instructions
10. SERVICE INSTRUCTIONS Never service or lubricate the unit engine while running. After servicing the unit, restore and fasten all guards, shields, and covers to their original positions. Never drain oil into the ground, into open streams, or down sewage drains. ENGINE See engine owner´s manual maintenance schedule. -
Page 15: Replacements
12. REPLACEMENT Parts Tolerance or Replacement Cycle Engine Components Refer to your engine manufacturer´s Owner´s Manual V-Belts Replace if stretched to the point that the idler does not work properly. Replace the V-belts if they are cracked or torn. Roller Chain Replace if there is excessive play between the links or the links are damaged. -
Page 16: Torque Chart
13. TORQUE CHART... -
Page 17: Warranty
Jax, Curtis, Gehl, Heli, Honda, ICS/PowerGrit, Puckett, Waldon, ASV, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, Gorman Rupp, CH&E, Cat Pumps, Comet, General Pump, Giant,AMida, Coleman, NAC, Gradall, Square Shooter, Kent, Stanley, Tamco, Toku, Hatz, Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air, Small Line, Wanco, Yanmar... -
Page 19: Notes
CODIGO CODE DESCRIPCION DE PARTES DESCRIPTION OF PARTS CM7 CM9 CM12 0170CO01CH C-100 CHASIS CM7 YCM9 FRAME,CM7 CM9 0173CO01CH C-102 CHASIS CM12 FRAME CM12 0100SC01FR C-103 FRENO BRAKE 0100FG01FR C-104 MANIVELA FRENO LOCKING PIN 0100SO01PD C-105 CHUMACERA PILLOW BLOCK 0000CO01LZ... - Page 20 CAL 1 1/8" KEY CUÑERO 1/4" 1/4" PULLEY 4 1/4" POLEA 4 1/4" CAL 1 3/8" POFG414138TK C-177 CAL 1 3/8" KEY CUÑERO 5/16" 5/16" THIS PARTS MANUAL APPLIES FOR CONCRETE MIXERS CM7, CM9, and CM12 FROM SERIAL NUMBER 36683...
- Page 21 Jax, Curtis, Gehl, Heli, Honda, ICS/PowerGrit, Puckett, Waldon, ASV, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, Gorman Rupp, CH&E, Cat Pumps, Comet, General Pump, Giant,AMida, Coleman, NAC, Gradall, Square Shooter, Kent, Stanley, Tamco, Toku, Hatz, Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air, Small Line, Wanco, Yanmar...
