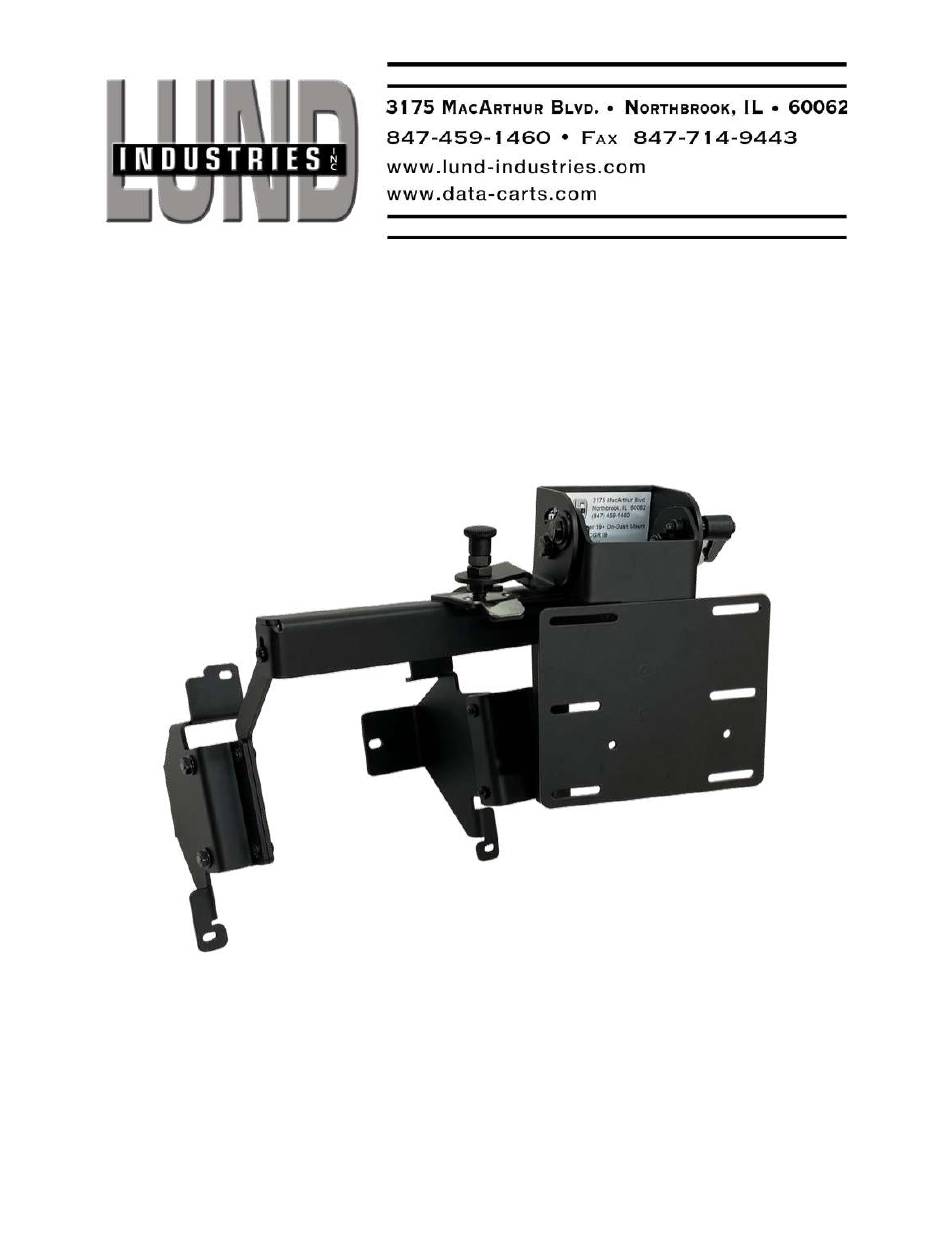

2015-20 Charger On-Dash Mount
Installation Instructions
P/N ODM-CGR
Caution:
Always be sure to secure and lock mount in place before driving.
Always!
➢ Read all instructions before installing any Lund products.
➢ Check for obstructions (Wires, brake lines, fuel tank, etc.) before drilling any holes!
➢ Use hardware provided with install kit
V1.0 04-2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lund Industries ODM-CGR
Summary of Contents for Lund Industries ODM-CGR
- Page 1 2015-20 Charger On-Dash Mount Installation Instructions P/N ODM-CGR Caution: Always be sure to secure and lock mount in place before driving. Always! ➢ Read all instructions before installing any Lund products. ➢ Check for obstructions (Wires, brake lines, fuel tank, etc.) before drilling any holes! ➢...
- Page 2 Dodge Charger Dash Gently pry along the dash with a flat blade panel Prior to installation. removal tool. Slowly working along the frame. Temporarily remove radio touch screen. Dash panel partially removed. NOTE: The touchscreen has a theft deterrent system built in so we suggest leaving the main power plugged in. Temporarily remove two (2) OEM screws and Repeat process for both sides. attach support bracket with OEM screw as shown. Make sure brackets fit around radio snug. 10mm socket. ...
- Page 3 Reinstall the radio touch screen using Attach side mounting brackets to the side support the previously removed OEM hardware. Add the brackets using provided flange nuts. top support bracket to the upper right side of radio. Repeat process for driver side and tighten hardware. Carefully reinstall previously removed dash panel. Attach the passenger side frame bracket using Make sure the side mounting brackets are even the supplied (2) 10-32 screws. along the dash and the dash is fully seated back into place. ...
- Page 4 You should now have all 3 brackets mounted and Now attach the drivers side frame bracket using ready to attach the main frame. the supplied (2) 10-32 screws as shown. Place the main frame in position. Screw in the 2 Next same process for the drivers side except only provided 10-32 screws on the passenger side.
