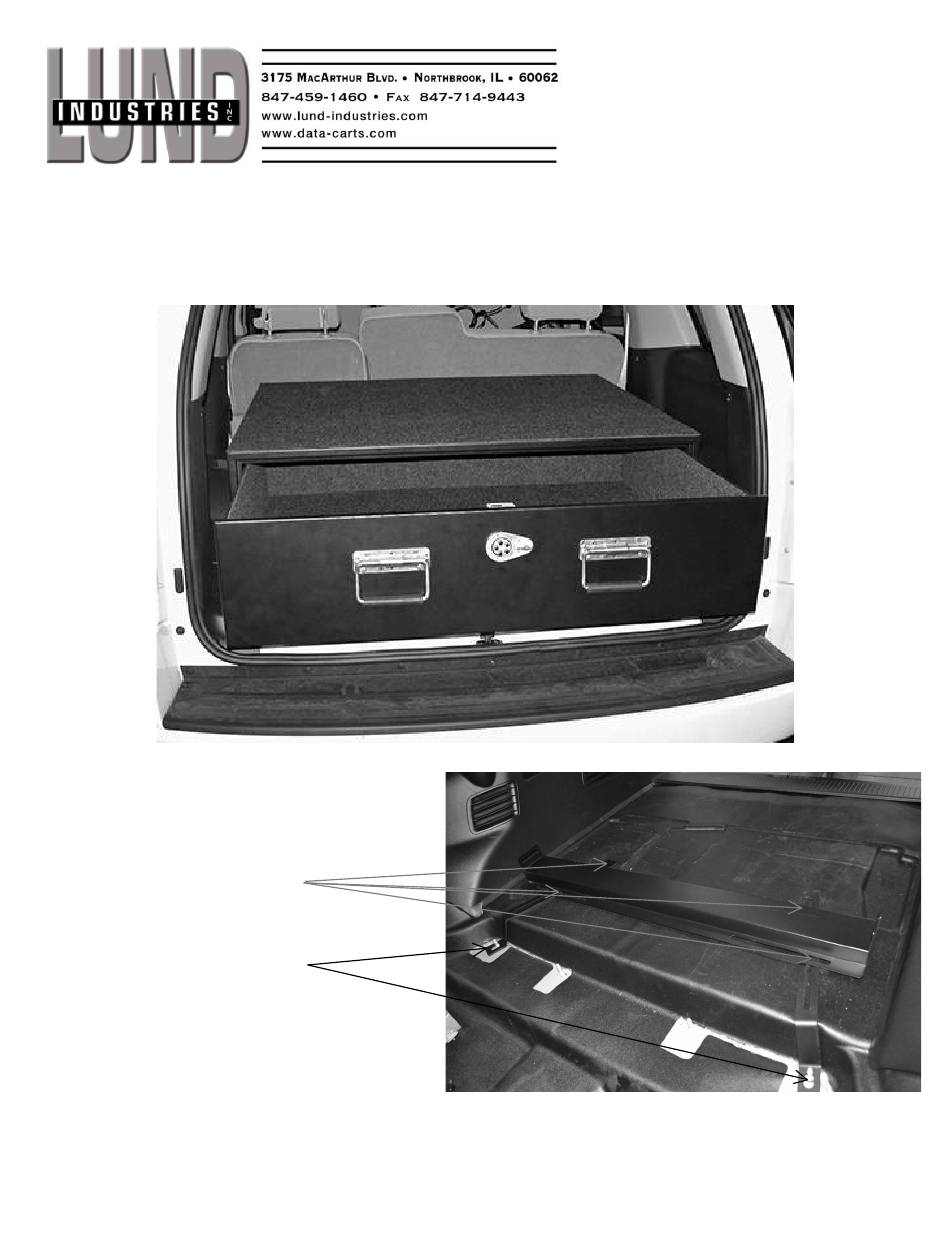

Attach brackets to rail with 4 sets of
3/8" hardware provided as shown.
Leave loose for later adjustment.
(Fig. 1)
install 2 brackets over back rear seat
studs. (Fig. 1)
Shown with seats removed.
1. Attach brackets to rail closest to middle seats with 3/8" hardware provided as shown. Leave loose
for later adjustment. (Fig. 1)
SSTB-TAH15 SecureStor SUV Vault
2015 Tahoe Mounting Instructions
415
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lund Industries SSTB-TAH15
Summary of Contents for Lund Industries SSTB-TAH15
- Page 1 SSTB-TAH15 SecureStor SUV Vault 2015 Tahoe Mounting Instructions Attach brackets to rail with 4 sets of 3/8” hardware provided as shown. Leave loose for later adjustment. (Fig. 1) Remove nuts on back seat studs and install 2 brackets over back rear seat studs.
- Page 2 2. Remove nuts on back seat studs and install 2 brackets over back rear seat studs. Re-install seat nuts and tighten (Fig. 1) 3. Attach the rail by rear hatch to vehicle floor at (2) locations on each side of vehicle. (Fig. 2a) Use metric bolts and washers to attach rail to factory hold-down brackets under mat.
