1. Instruction Note for Installation in the C Slot

1. Instruction Note for Installation in the C Slot
1. Instruction Note for Installation in the C Slot 1. Instruction Note for Installation in the C Slot 1. Instruction Note for Installation in the C Slot
Mounting kit depending on frame

Bookstyle

A2 and A3 (40 mm for one C option)
A2 and A3 (60 mm for C0 + C1 option)
B3 (40 mm for one C option)
B3 (60 mm for C0 + C1 option)
Compact
A5
B, C, D, E and F (except B3)

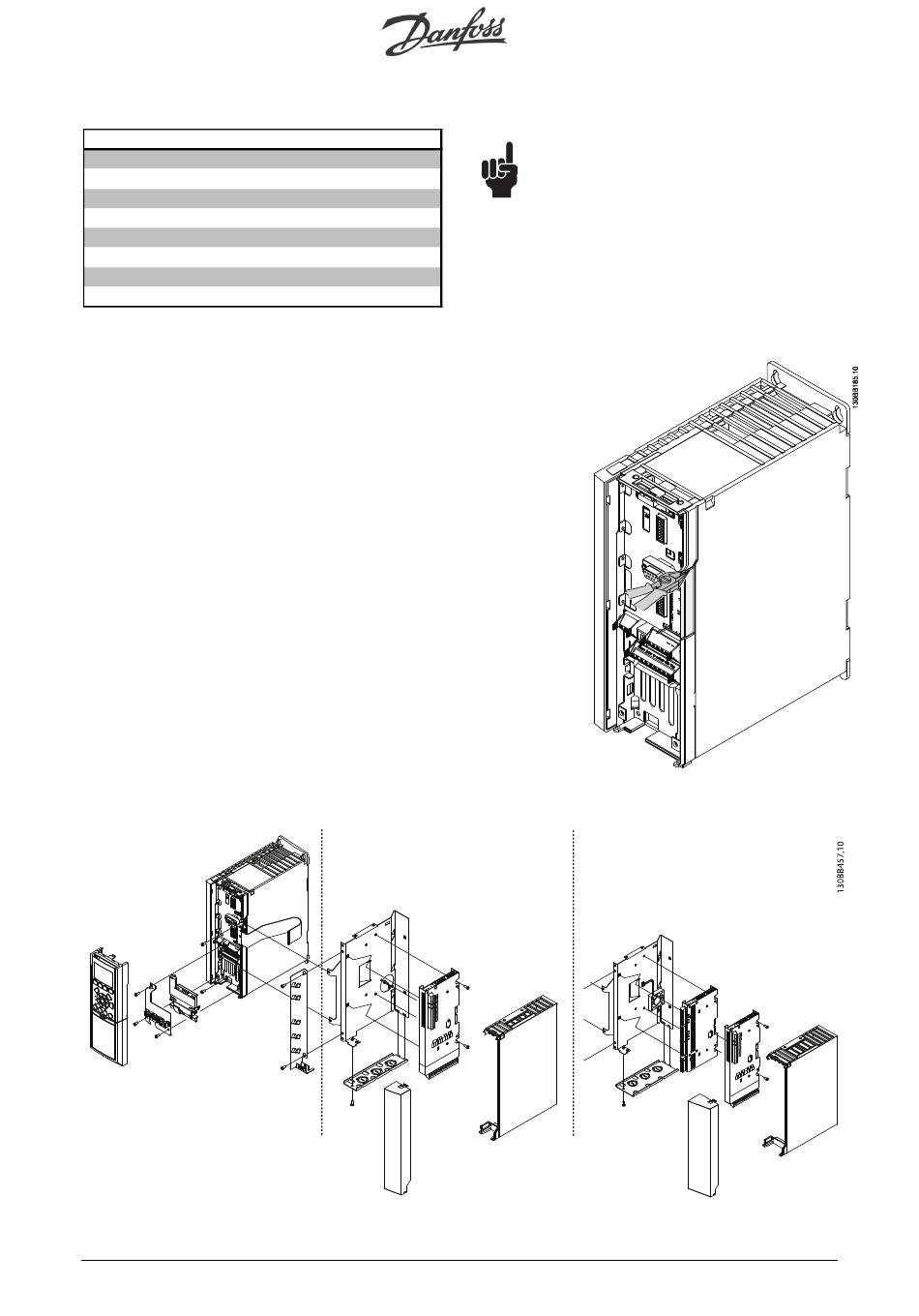

1.1 Bookstyle 1.1 Bookstyle 1.1 Bookstyle 1.1 Bookstyle 1.1 Bookstyle
Prepare the mounting kit: Prepare the mounting kit: Prepare the mounting kit: Prepare the mounting kit: Prepare the mounting kit:
1. Release the front with a srew driver.
2. Remove the support plate by releasing the two
screws (turn slightly).
3. Remove the plastic cover by unscrewing the two
screws.
Prepare the drive: Prepare the drive: Prepare the drive: Prepare the drive: Prepare the drive:
4. Remove the LCP cradle from the drive to access the
connection point for the flat cable. Cut the plastic part
illustrated in order to get access between the drive and
the C option.
5. If a D option (24 V DC) is installed, temporarily remove
this.
6. Connect the flat cable to the drive and let it through the
hole in the metal frame.
7. The metal frame attaches to the drive through four
metal parts that fit into holes on the side of the drive.
The two parts in the back are fixed with plastic snaps
and the front is fixed fixed via two screws.
8. Mount the support plate.
9. Install the option. Mount the various parts that were
removed for access again.
1. The 40 mm mounting kit is used when only one C option is used.
2. The 60 mm mounting kit is used for the MCF 106 Adaptor and also when more than one C option is used, i.e. one
C0 plus one C1 option. (Not incl. the adaptor.)
Order no.
130B7530
130B7531
130B1413
130B1414
130B7532
130B7533
1.
MI.90.R1.02 - VLT ® is a registered Danfoss trademark
Do not mount the small fan for MCB 113, MCF
106 or frame B4, C3, C4, D, E and F.
2.
