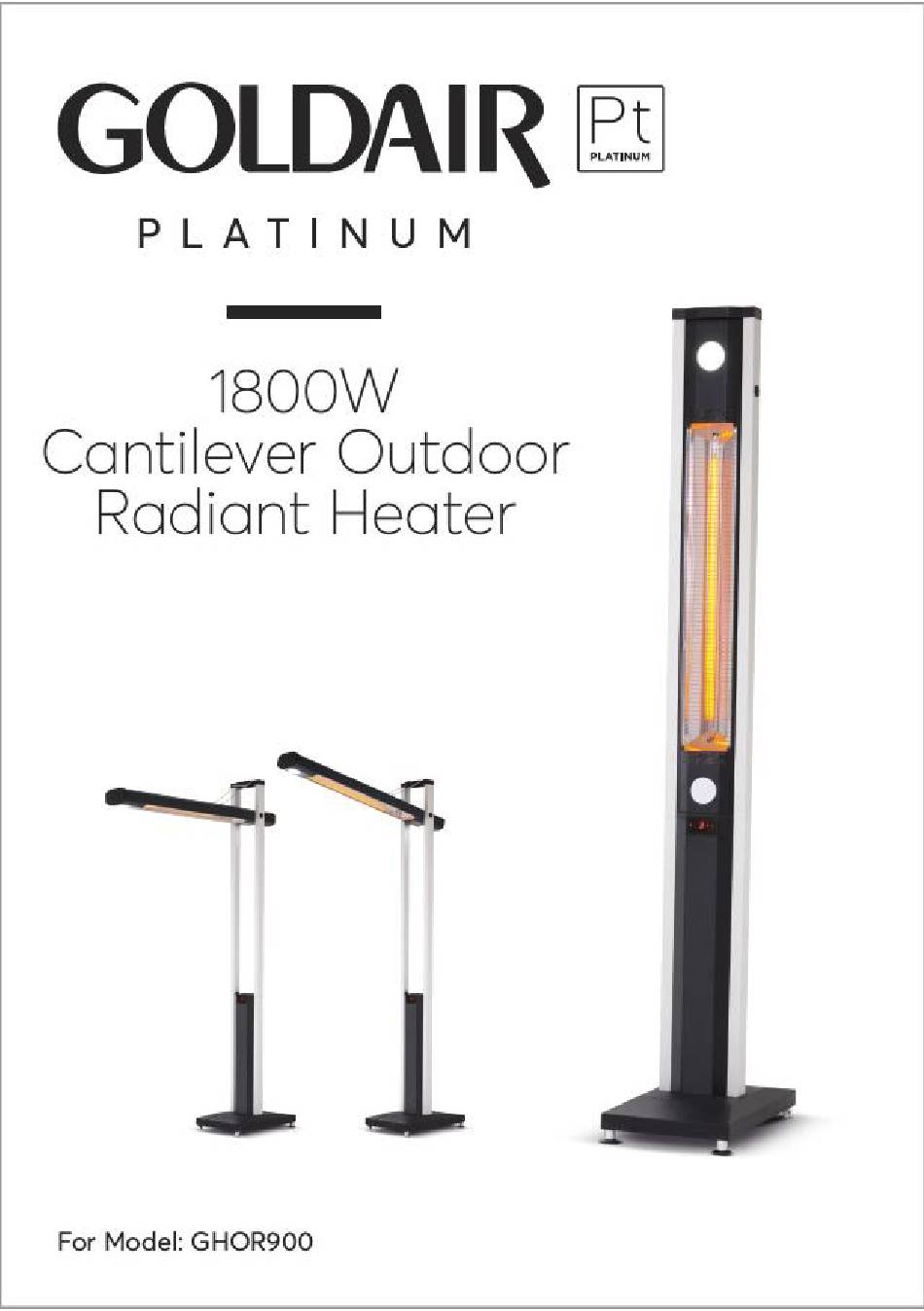

Summary of Contents for Goldair Platinum GHOR900
- Page 2 General Care and Safety Guide Thank you for choosing a Goldair Outdoor Heater. This Goldair appliance has been designed and manufactured to high standards of engineering and with proper use and care, as described in this booklet, will give you years of useful service. Please read these instructions carefully and keep for future reference.
- Page 3 Components Always choose a safe location for the appliance, keeping in mind the safety precautions outlined. Ensure all packaging has been removed from the unit before use. Part No. Part name Heater Body 1 Cover Panels 2 Support Legs 2 Base cover Base...
- Page 4 Components - Continued Always choose a safe location for the appliance, keeping in mind the safety precautions outlined. Ensure all packaging has been removed from the unit before use. Part No. Part name M4 X 10 screws Washer ST3.5 x 12 screw M6 x 50 Hexagon head bolts 4 Remote control unit Castor wheels...
-
Page 5: Assembling Your Heater
Assembling your heater 1) Attach castors to the base using M4 screws 2) Attach base foot and foot sheath to the underside of the base by turning the threaded base foot in a clockwise direction into the threaded hole in the base 3) Secure support legs to the top side of base by screwing in M6x50 Bolts using either the supplied tool or a 10mm socket... - Page 6 Assembling your heater 4) Slide base cover over support legs 5) Slide heater body into the channels of the support legs 6) Secure the heater body to the support legs with the 2x screws as shown in the exploded diagram...
- Page 7 Assembling your heater 7) Ensure the power cable is not tangled and is run between the support legs and through the central hole in the base 8) Slide the plastic base cover upwards to the height of the control panel so that it does not interfere or touch the cover panels for the next step.
- Page 8 Assembling your heater 10) Repeat cover assembly instruction process for the second side of the heater 11) Slide the base cover downwards to it’s final position over the heater base...
-
Page 9: Operating Your Appliance
Operating your Appliance Always choose a safe location for the heater, keeping in mind the safety precautions outlined. Ensure all packaging has been removed from the unit before use. This appliance requires no installation, it should be used solely as a portable appliance. WARNING: Keep all objects at least 1 metre from SAFETY DEVICES the front and sides of the unit. - Page 10 Operating your Appliance Always choose a safe location for the heater, keeping in mind the safety precautions outlined. Ensure all packaging has been removed from the unit before use. This appliance requires no installation, it should be used solely as a portable appliance. IMPORTANT: Remove protective foam pieces (these are used to protect the heating element during transportation) These must be removed before turning the heater on.
- Page 11 Operating your Appliance ON/OFF button: Use this to turn the heater on or off This will be Green when the heater is in standby mode Heat control button: Use this to control the level of heater output. There are five heat settings. Continue to press this button to cycle through to your desired setting.
- Page 12 Operating your Appliance This heater can be operated in three different positions. 1. Vertical 2. Horizontal 3. Angled In position 1 (vertical) • Only the top LED light will operate. This is normal • The control panel facing in the same direction as the heater element will be active.
- Page 13 Operating your Appliance CAUTION: The appliance generates heat during use. Proper precautions must be taken to prevent the risk of burns, scalds, fires or other damage to persons. • GHOR900 Heating arm can work in vertical or horizontal position • Open the heating arm as following instructions, and close it in the reverse direction. •...
-
Page 14: Technical Specification
Supply: 220-240VAC 50Hz Wattage: 1800W Rating: IP34 SUPPORT AND TECHNICAL ADVICE Goldair – New Zealand Goldair – Australia Monday – Friday 8am-5pm Monday – Friday 8am-5pm Phone +64 (0)9 917 4000 Phone +61 (0)3 9365 5100 Phone 0800 232 633 Phone 1300 465 324 info@cdb.co.nz... -
Page 15: Three Year Warranty
In non-domestic use Goldair limits the voluntary warranty to three months. Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the warranty period.
