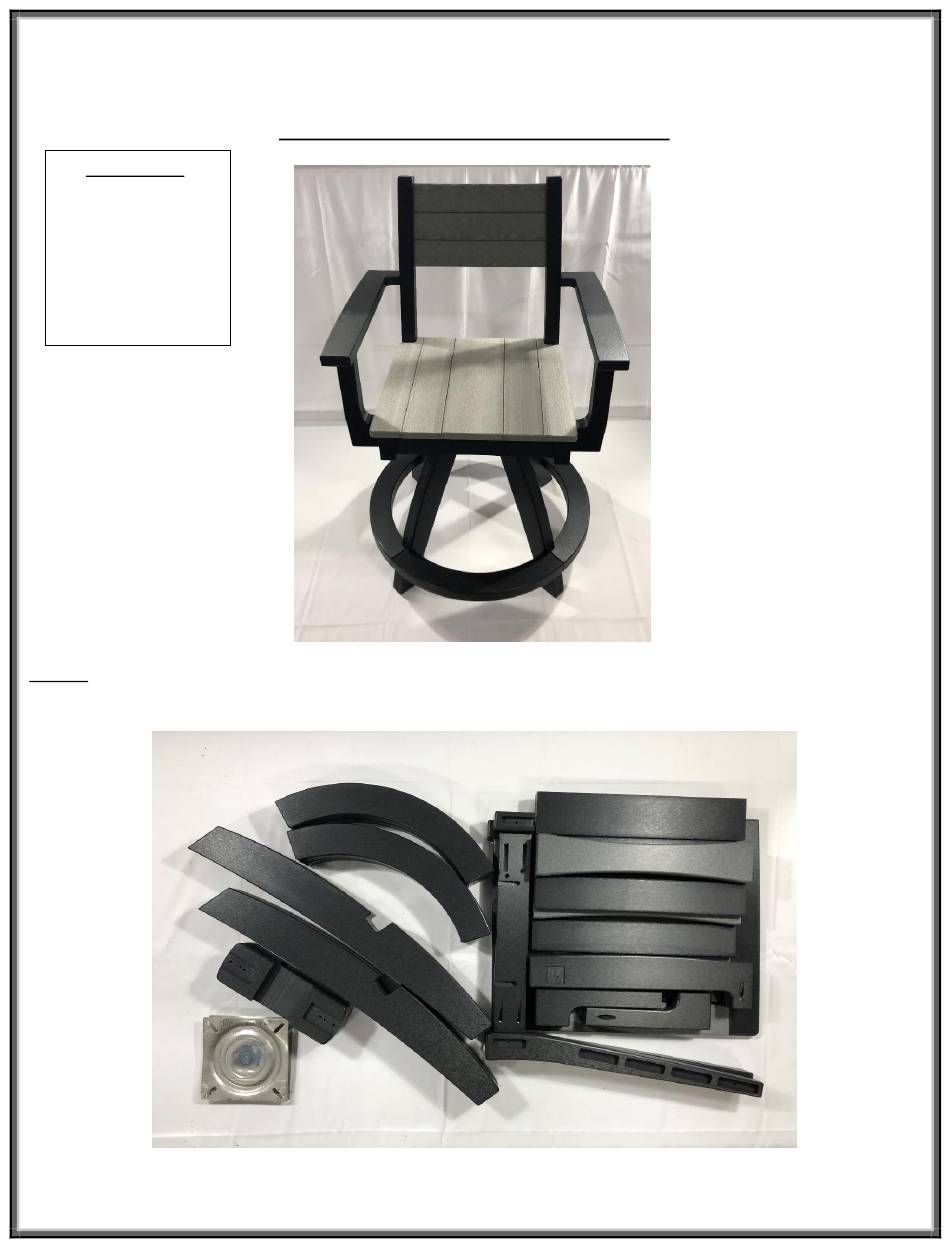

Assembly Instructions
E.C. Woods, Inc. Outdoor Furniture
ACADIA BAR HEIGHT SWIVEL CHAIR
Tools Needed
Cordless Drill
6" #2 Square Drive Bit
7/16" Nut Setter
Tape Measure
STEP 1: Lay all pieces (as needed) on a smooth soft surface such as cardboard or carpet to help avoid scratching. Be
careful to not over tighten any of the fasteners.
Advertisement
Table of Contents
Related Manuals for E.C. Woods ACADIA BAR HEIGHT SWIVEL CHAIR
Summary of Contents for E.C. Woods ACADIA BAR HEIGHT SWIVEL CHAIR
- Page 1 Assembly Instructions E.C. Woods, Inc. Outdoor Furniture ACADIA BAR HEIGHT SWIVEL CHAIR Tools Needed Cordless Drill 6” #2 Square Drive Bit 7/16” Nut Setter Tape Measure STEP 1: Lay all pieces (as needed) on a smooth soft surface such as cardboard or carpet to help avoid scratching. Be...
- Page 2 STEP 2: (a) Place the four quarters of the footrest on a smooth soft surface with the screw pockets facing up and the marked ends together. (b) Fasten the four quarters together using the 2” stainless steel round head screws provided and set off to the side.
- Page 4 STEP 4: (k) Place the chair sides, back slats, and cross rails on a smooth soft surface. (l) Put the back slats and cross rails into the mortise holes in one of the chair sides making sure that the long point is to the bottom of the chair sides. You may need to use a soft hammer to completely seat these rails.
- Page 5 STEP 5: (o) Place the arms and arm supports on a smooth soft surface. (p) Fasten the arm supports to the arms using the 1 ½” stainless steel round head screws provided. Make sure that the returns on the arm and arm support are pointed in the same direction and that the screw pocket on the arm support is facing towards the long portion of the arm.
- Page 6 STEP 6: (u) With the chair assembly upright place the seat on top of the assembly with the pocket holes facing down. (v) Rotate onto the back side and secure the seat to the chair assembly using the 1 ½” stainless steel round head screws provided.
- Page 7 STEP 7: (x) Place the base assembly upside down onto the upside down chair assembly making sure to have the side labeled Front Top toward the front of the chair assembly. (y) Center the swivel on the chair assembly and pre drill 4- 3/16”...
