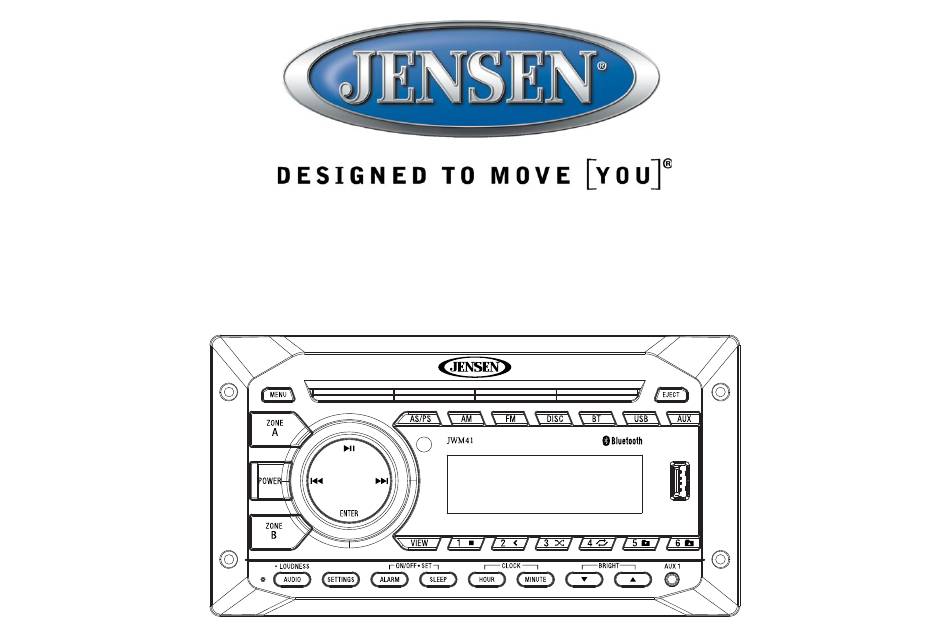

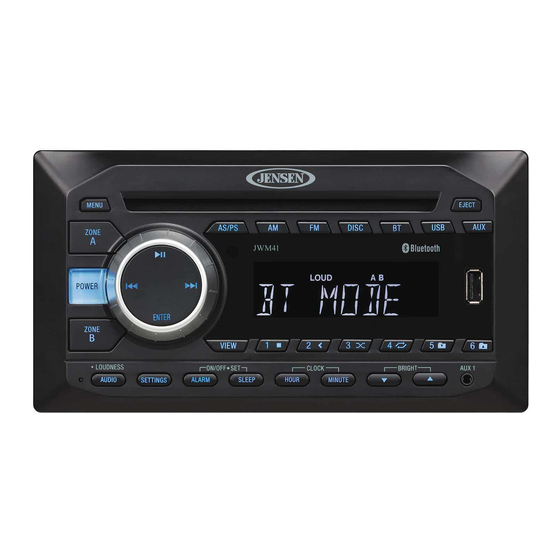

- Page 1 JWM41 MOBILE AUDIO SYSTEM Installation and Owner's Manual...
-
Page 2: Table Of Contents
JWM41 Introduction Disc Notes Installation Wiring Basic Operation Tuner Operation CD Operation DISC Operation MP3/USB Operation Bluetooth Operation Remote Control Operation DISC Setup Menu Care and Maintenance Troubleshooting Specifications FCC Notes... -
Page 3: Introduction
Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Do not open Features of Jensen JWM41 mobile audio system include: covers and do not attempt to repair the unit yourself. Refer servicing to qualified personnel. -
Page 4: Disc Notes
JWM41 DISC NOTES Depending on the recording status, conditions of the disc, and the equipment used for recording, some CD-Rs/CD-RWs may not play on this unit. For more reliable playback, please adhere to the following recommendations: Use CD-RWs with speed 1x to 4x and write with speed 1x to 2x. Ÿ... -
Page 5: Installation
7.323"+0.023" It's a good idea to read all of the instructions before beginning the installation. We recommend having your Jensen JWM41 installed by a reputable RV dealership. Tools and Supplies You will need these tools and supplies to install your JWM41: Phillips screwdriver Ÿ... -
Page 6: Wiring
JWM41 WIRING WARNING: Wiring harness comes with stripped and tinned leads to aid in the installation process. Any unused speaker wires must have their exposed ends cut The wiring diagram depicts all the wiring connections required for proper off or insulated individually. operation of the unit. -
Page 7: Basic Operation
JWM41 BASIC OPERATION The following audio menu items can be adjusted: Ÿ BAS: Adjust the Bass level from "-7" to "+7". Ÿ TRE: Adjust the treble from "-7" to "+7". Ÿ Ÿ BAL: Adjust the speaker output balance between "L7" (left) and "R7" (right). Ÿ... - Page 8 JWM41 The following audio menu items can be adjusted: Bluetooth Device (Locked/Unlocked, Disconnect/Connect, Delete): view, USB Interface Connector Ÿ lock and delete from a list of previously paired mobile device models. You can connect a USB device directly to USB interface (19) on the front of the Bluetooth Pair: Press ENTER button (4) to automatically pair a device.
- Page 9 JWM41 Reset The reset button should be activated for the following reasons: Initial installation of the unit when all wiring is completed. Ÿ Function buttons do not operate. Ÿ Error symbol on the display. Ÿ Use a ball point pen or similar object to press the RESET button (21). This may be necessary should the unit display an error code.
-
Page 10: Tuner Operation
JWM41 TUNER OPERATION Automatically Store / Preset Scan (AS/PS) Automatically Store Select an AM or FM band. Press and Hold the AS/PS button (6) for more than 3 seconds and the unit will automatically scan for and store 12 or 18 strongest station for all bands. -
Page 11: Cd Operation
JWM41 CD OPERATION Track Select Press the >>| or |<< button (5, 2) to advance to the next or previous track on the CD. The selected track number will appear on the display. Press the II button (3) to start the playback of the selected track. Fast Forward/Reverse Press and hold the >>| or |<<... -
Page 12: Disc Operation
JWM41 Remote Control Direct Track Entry Stop Playback To select a track directly, use the number pad on the remote control (9). ■ Press the 1 button (27) to suspend disc play, and “PRE STOP” will appear in the For single digit entries, press the corresponding number. For two digit entries, display. - Page 13 JWM41 2. Use the ◄►or ▲▼cursor buttons (15) on the remote control to access the 00:02:18 –total elapsed playing time of the current track; fields on the "PROG" screen. C –00:34:37 –remaining playing time of the current track; 3. Use the number buttons on the remote control to enter a track number in each T 00:02:18 –total elapsed playing time for disc;...
-
Page 14: Mp3/Usb Operation
JWM41 MP3/USB OPERATION Maximum number of folder levels: 12 Maximum number of MP3 files: 999 Maximum number of characters for MP3 files name and folder name: 32 Maximum number of Characters of ID3 Tag: ID3 Tag version 1.0: 32 ID3 Tag version 2.x: 32 MP3 Monitor Display After loading an MP3 disc or USB device, the following screen will appear on your output monitor. - Page 15 JWM41 Remote Control Direct Track Entry Intro Scan (INT) Press the AS/PS button (6) during disc play to play the first 10 seconds of each To select a track directly, use the number pad on the remote control (9). track on the current disc. Press AS/PS again to end the scan and play the For single digit entries, press the corresponding number.
-
Page 16: Bluetooth Operation
JWM41 BLUETOOTH OPERATION Bluetooth Pair (ENTER): Press and hold the BT button (10) for 3 seconds to Ÿ start pairing with a Bluetooth enabled device. Ÿ Bluetooth Device:Press the ENTER button to view a list of previously The JWM41 includes built-in Bluetooth technology that allows you to connect paired mobile devices models. - Page 17 JWM41 NOTE: If a Bluetooth device is disconnected due to the power being turned off or if the device is disconnected inadvertently, the unit will automatically search for the matching BT mobile phone when the power is restored.
-
Page 18: Remote Control Operation
JWM41 REMOTE CONTROL OPERATION DESCRIPTION TUNER BLUETOOTH CD/MP3/USB LOUD Turn radio on/standby Turn radio on/standby Turn radio on/standby Turn radio on/standby Power mode. mode. mode. mode. ALARM Adjust volume up/down. Adjust volume up/down. Adjust volume up/down. Adjust volume up/down. VOL +/- TUNE+ Press for Audio Control Press for Audio Control... - Page 19 JWM41 Press to view title TITLE menu. Use directional arrows and play button to play selected title. May not be supported by all discs. Repeat track Repeat chapter Select source for Select source for Select source for Select source for SOURCE playback playback...
-
Page 20: Disc Setup Menu
JWM41 DISC SETUP MENU Lanuage Setup Press the button (10) on the remote control to access the SETUP menu and The Language Setup menu controls the following features: adjust system settings for the following categories: System Setup – – Language Setup Audio Setup –... - Page 21 JWM41 Video Setup Digital Setup The Video Setup menu controls the following features: The Digital Setup menu controls the following features: Brightness: Adjust the brightness of the screen from the following levels: 12, – OP Mode: Select LINE OUT or RF REMOD. –...
-
Page 22: Care And Maintenance
JWM41 CARE AND MAINTENANCE TROUBLESHOOTING Keep the product dry. If it does get wet, wipe it dry immediately. Liquids – might contain minerals that can corrode the electronic circuits. Symptom Solution Keep the product away from dust and dirt, which can cause premature wear –... -
Page 23: Specifications
JWM41 SPECIFICATIONS FCC Notes FM Tuner Frequency Coverage (USA) ......87.5 to 107.9 MHz Frequency Coverage (Europe) .
