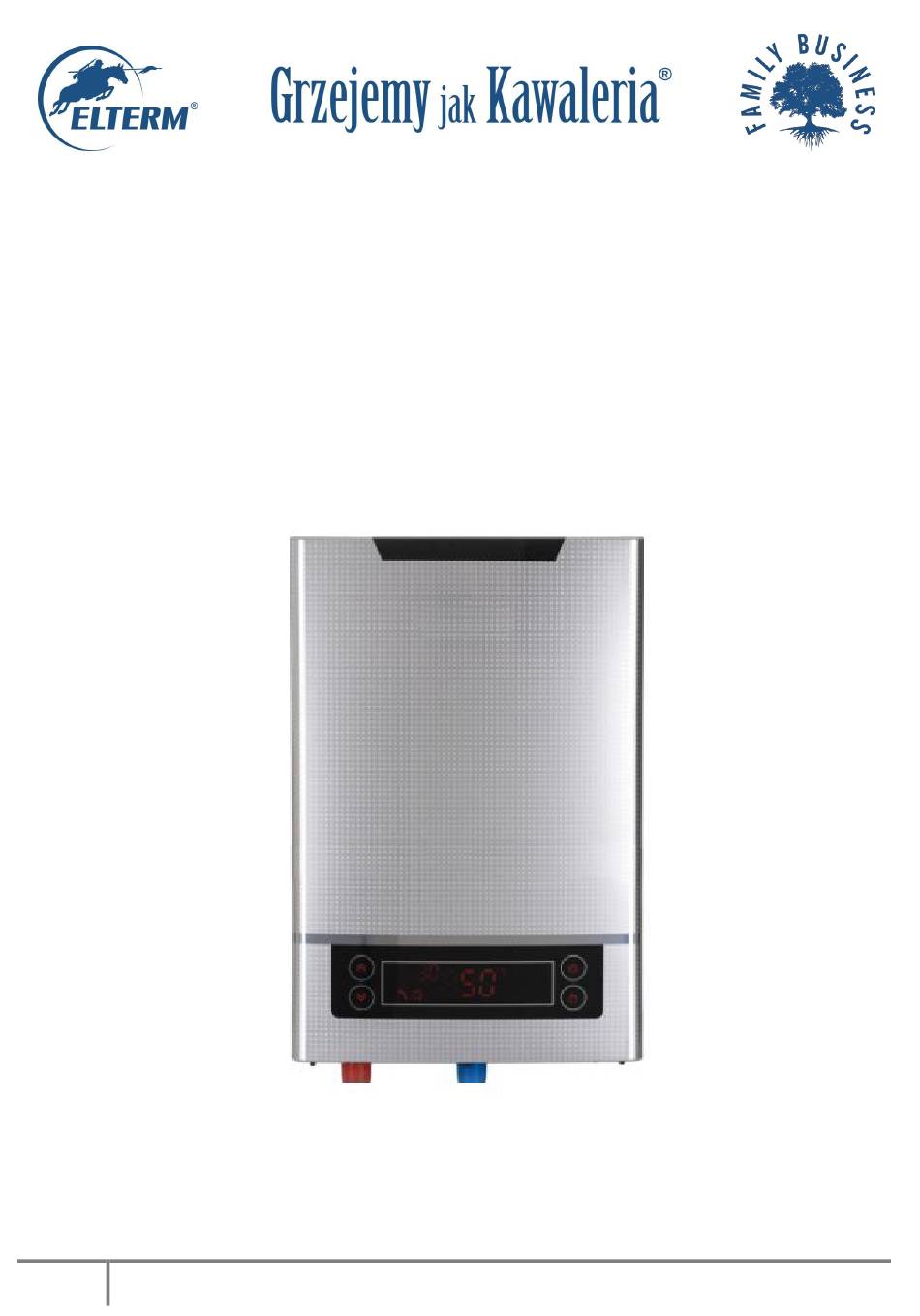

- Page 1 Operating and assembly manual: Electric instantaneous flow heater “Admiral” (build in AsC and AsC-W electric heating boilers or sold separately) Available power: 7,5kW; 12kW; 15kW; 18kW; 21kW Elterm M.M.Kaszuba Sp.J., ul. Przemysłowa 5, 86-200 Chełmno www.elterm.pl...
- Page 2 15. This water heater may cause small amount of water expansion due to residual heat after operation. In most systems this is easily accommodated by the distribution pipework and water supply system Elterm M.M.Kaszuba Sp.J., ul. Przemysłowa 5, 86-200 Chełmno www.elterm.pl...
- Page 3 Water is completely separated from live components, what ensures high durability and 100% safety. Use: Electric instantaneous flow heater Admiral can be used to obtain domestic hot water in sink or shower. Elterm M.M.Kaszuba Sp.J., ul. Przemysłowa 5, 86-200 Chełmno www.elterm.pl...
- Page 4 7. In case of longer idle time of device, power supply needs to be disconnected. 8. We highly recommend fitting an isolation valve and ball valve before the unit to close system before removal of the tap and servicing. Elterm M.M.Kaszuba Sp.J., ul. Przemysłowa 5, 86-200 Chełmno www.elterm.pl...
- Page 5 1. The installation must only be carried out by qualified electrician in accordance with all regulations. 2. The unit must be properly earthed and proper fuses need to be installed. 3. While connecting device, main electrical switch needs to be turned off (on electrical switchboard). Elterm M.M.Kaszuba Sp.J., ul. Przemysłowa 5, 86-200 Chełmno www.elterm.pl...
- Page 6 5. During standard operation display shows current water temperature, by pressing buttons set temperature is visible. 6. Device is equipped in safety valve, which will be triggered automatically when inside pressure exceeds 1,2 Mpa. Elterm M.M.Kaszuba Sp.J., ul. Przemysłowa 5, 86-200 Chełmno www.elterm.pl...
- Page 7 72°C 72°C 72°C 72°C Overheating sensor 95°C 90°C 90°C 90°C 90°C Flow rate with Δt=30°C 3,6 l/min 5,8 l/min 7,2 l/min 8,7 l/min 10,1 l/min Protection IP25 IP25 IP25 IP25 IP25 Elterm M.M.Kaszuba Sp.J., ul. Przemysłowa 5, 86-200 Chełmno www.elterm.pl...
- Page 8 Water temperature exceeded 67°C. Reduce temp. Increase water supply. Display shows E2. Leakage. Contact service. Display shows E3. Sensor malfunction. Contact service. Any attempt to fix device outside authorized service causes warranty loss! Elterm M.M.Kaszuba Sp.J., ul. Przemysłowa 5, 86-200 Chełmno www.elterm.pl...
