CAUTION
This product was designed to be installed on wood stud walls and solid concrete walls.
Before installing make sure the supporting surface will support the combined load of the
equipment and hardware. Never exceed the Maximum Load Capacity. This product is
intended for indoor use only. Use of this product outdoors could lead to product failure or
personal injury.

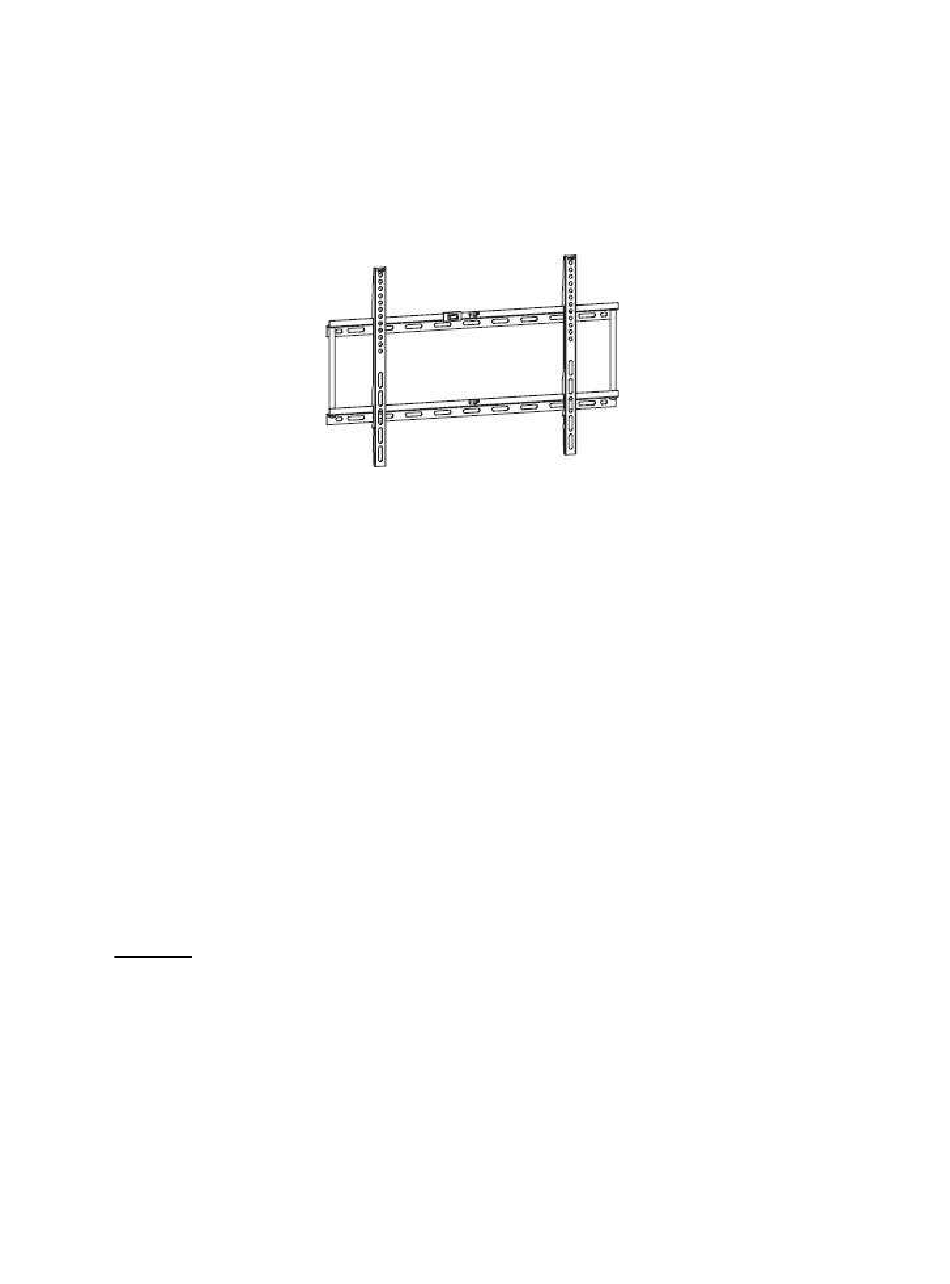

INSTALLATION GUIDE: BC80455
•
HAV Advanced Installer Mount
•
27MM Super slim profile
•
Fixed angle
•
Stud or masonry installation
•
TV size range 26"～55" [65-137.5cm]
•
Maximum weight capacity 45 kg / 99lbs
•
NON VESA & up to 600X400
•
Spirit level
•
safety screws
•
Colour silver
Thank you for choosing our product
1
Advertisement
Related Manuals for Hills BC80455
Summary of Contents for Hills BC80455
- Page 1 INSTALLATION GUIDE: BC80455 • HAV Advanced Installer Mount • 27MM Super slim profile • Fixed angle • Stud or masonry installation • TV size range 26"～55" [65-137.5cm] • Maximum weight capacity 45 kg / 99lbs • NON VESA & up to 600X400 •...
- Page 2 Hardware List:...
- Page 3 Part Wood Stud Mounting Use wall plate(1) as a template, make sure it is level, and mark six mounting holes along the center lines of the wood studs. Drill six 3/16”(5mm)dia. holes 2”(50mm) deep. Level wall plate(1) and attach to wall with six long bolts(G) and six washers(F).
- Page 4 Part Concrete Wall Mounting Level wall plate(1) and use wall as a template to mark six holes. Drill six 3/8”(10mm) dia. holes 2”(50mm) deep. Insert six anchors(H) into holes and secure wall plate with six long bolts(G) and six washers(F).Tighten screws firmly.
- Page 5 Part Attaching Brackets To Screen Center brackets vertically on back of screen. Select the small(A),medium (B or C) or large(D) screws. Attach brackets to screen using four selected screws ,four square washers(E) and spacers(I) at the top and bottom of each bracket.
- Page 6 Part Mounting the flat panel screen Hook the top of brackets(2) onto the top flange of wall plate(1). Then swing the screen down. Tighten the safety bolt(3) on each bracket to lock the screen into place. NOTE: Always use an assistant or mechanical lifting equipment to safely lift and position heavy equipment.
