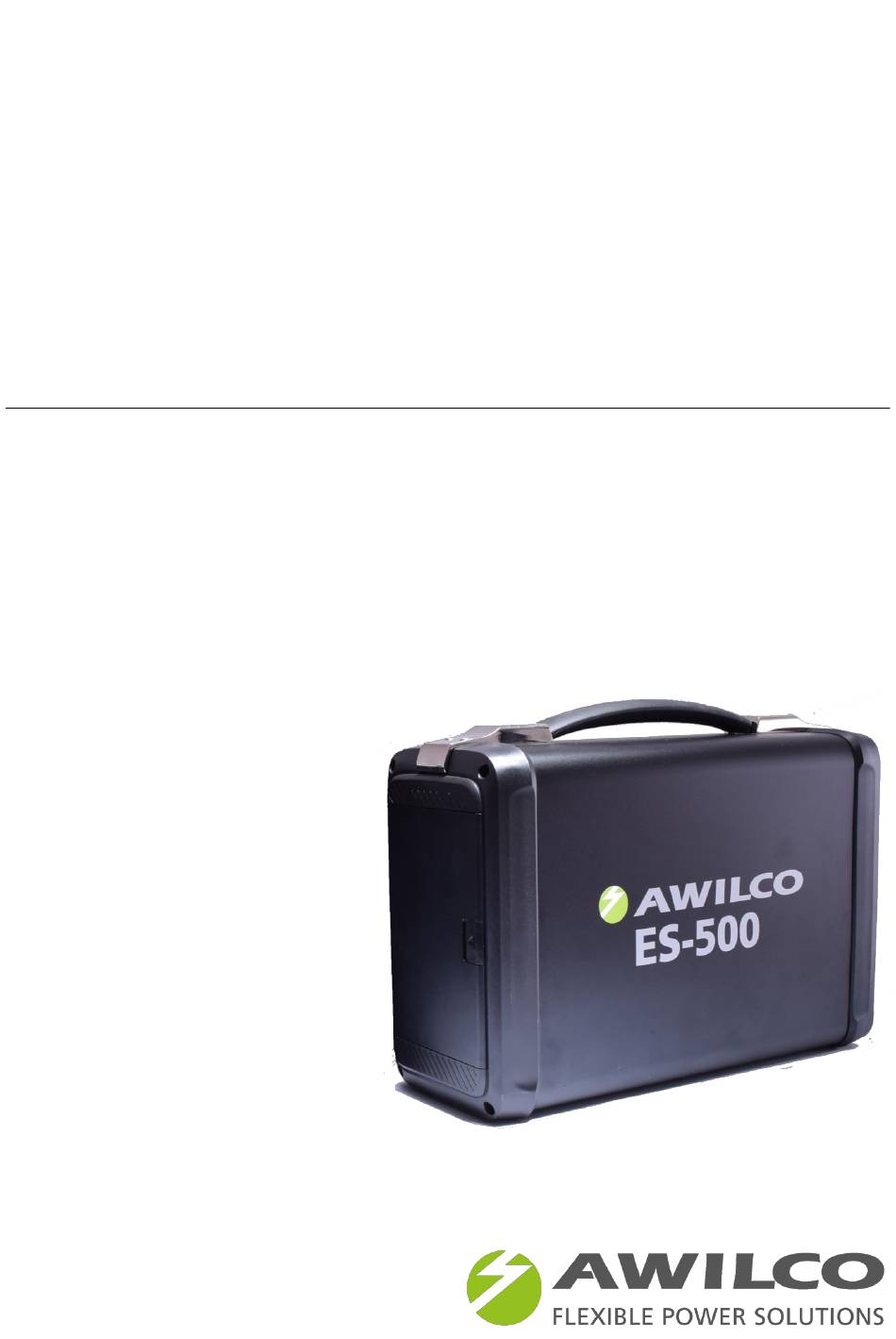

- Page 1 AWILCO PORTABLE ENERGY SYSTEM ES-500 LITHIUM POWERPACK 500W-50AH ES-500, EUROPE (230V) ES-500UK, UNITED KINGDOM (230V) OWNER’S MANUAL, ENGLISH...
- Page 2 Note: If the product is damaged or faulty, it must be returned to AWILCO for repair. If the product has been opened, or repairs have been attempted by others than AWILCO technician, the warranty will be lost.
-
Page 3: Table Of Contents
TABLE OF CONTENTS : 1. PRODUCT INFORMATION 2. PRODUCT APPLICATION 3. MAIN TECHNICAL PARAMETERS 4. PRODUCT OVER VIEW 5. SAFETY NOTICE 6. WARNINGS 7. WORKING ENVIRONMENT 8. AFTER SALES SERVICE AWILCO Energy System ES-500 / Sep-18... -
Page 4: Product Information
When in need, the battery voltage can be used for a wide variety of electrical equipment. With its compact structure, discreet design and multiple functions, this product is an ideal electric device for activities such as outdoor living, travel and construction. AWILCO Energy System ES-500 / Sep-18... -
Page 5: Main Technical Parameters
AC Output short circuit current Max 100A withstand 1ms DC Output short circuit current Max 10A Operating -10°C – +45°C temperature range Storage -10°C – +45°C temperature range System IP Closed hatch: IP55 protection class Open hatch: IP30 AWILCO Energy System ES-500 / Sep-18... -
Page 6: Product Overview
Output Port. 10. DC 12V Output Port. 11. AC 230V Output socket. 12. Dual USB DC 5V Output Port. 13. Power switch. 14. AC Output control button. 15. DC Output control button. 16. Communication Interface. AWILCO Energy System ES-500 / Sep-18... - Page 7 ON/OFF. 15. DC Output control button: This button controls the DC 12V and DC 5V. Press the button to turn DC output ON/OFF. 16. Communications Interface: The interface communicates with a computer via RS485. AWILCO Energy System ES-500 / Sep-18...
-
Page 8: Safety Notice
After the temperature drops, the system will not automatically recover. The system needs to be turned off, and then turned back on in order to reset. AWILCO Energy System ES-500 / Sep-18... -
Page 9: Warnings
12. Please turn off the energy system when it is not in use over a longer period of time. Please charge the energy system at least every three months to extend the battery life time. AWILCO Energy System ES-500 / Sep-18... -
Page 10: Working Environment
3. Do not use the product in environments with flammable and explosive atmosphere. Always shield the product from flames and sparks 4. Applicable external temperature -10℃~45℃; 5. Relative air humidity is no higher than 85% (25℃土5℃). AWILCO Energy System ES-500 / Sep-18... -
Page 11: After Sales Service
AWILCO provides 12 month free warranty service, please read the warranty circumstances bellow. If there is any damage or malfunctions to the product, and the AWILCO technician stats that the product has been used under normal circumstances, our company will provide free repairing or component replacement within the warranty period. - Page 12 AWILCO Energy System ES-500 / Sep-18...
