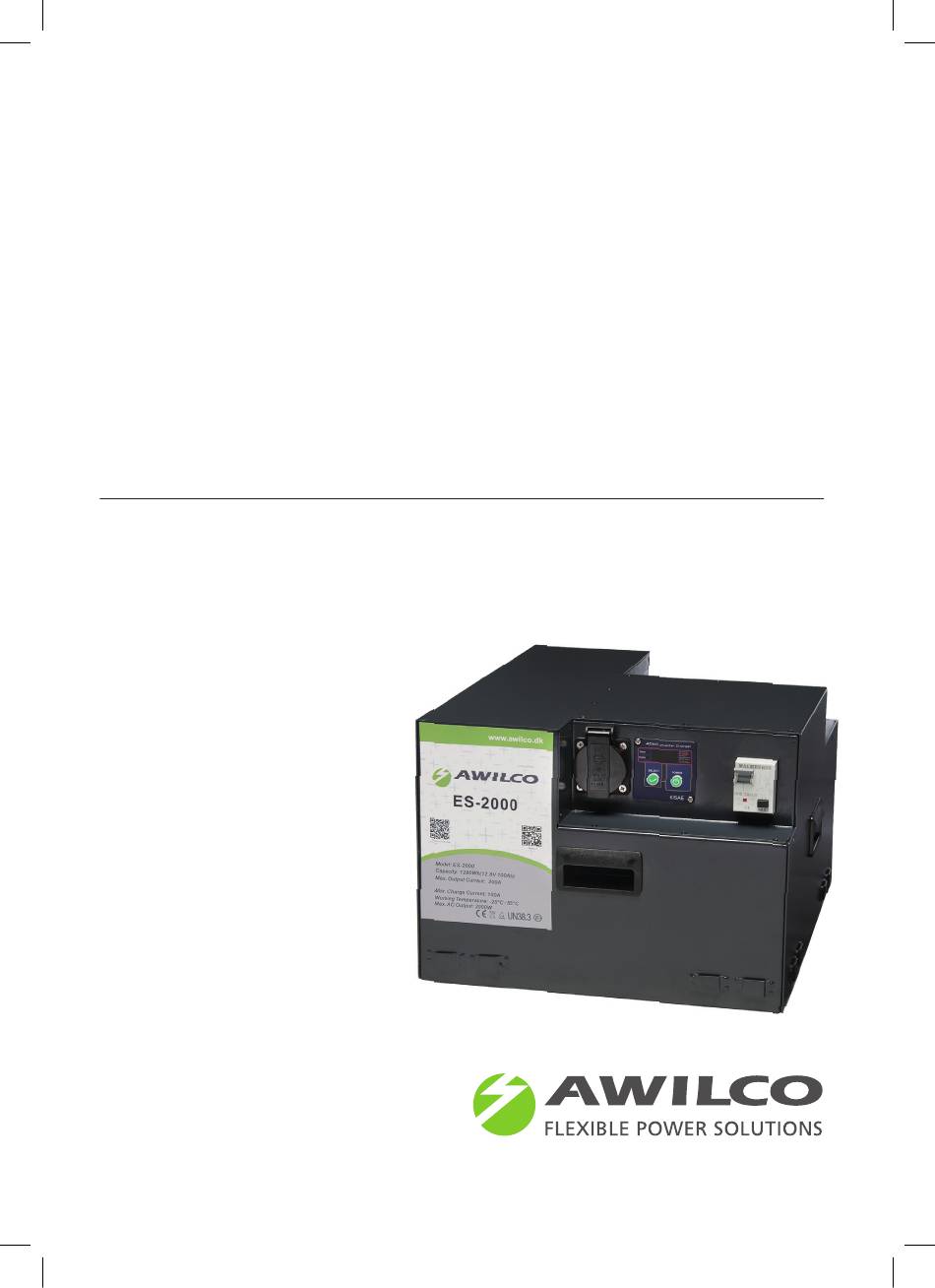

- Page 1 AWILCO ENERGYSYSTEM ES-2000 LITHIUM POWERPACK 2000W-100AH ES-2000, EUROPE (230V) ES-2000UK, UNITED KINGDOM (230V) OWNER’S MANUAL...
- Page 2 While every precaution has been taken to en- sure the accuracy of the contents of this guide, Web: www.awilco.dk AWILCO ApS assumes no responsibility for errors or omissions. Note as well that specifications and product functionality may change without notice.
-
Page 3: Table Of Contents
TABLE OF CONTENTS: IMPORTANT SAFETY INFORMATION 1. INTRODUCTION 2. PRODUCT DESCRIPTION 3. INSTALLATION 4. CONNECTING TO BLUETOOTH 5. INVERTER/CHARGER OPERATION 6. FEATURE SETTING 7. TROUBLESHOOTING 8. SPECIFICATIONS 9. WARRANTY APPENDIX I APPENDIX II Awilco Energysystem ES-2000... -
Page 4: Important Safety Information
• Guarantee is two years as of invoice date. openings and/or install in a zero-clearance Life time: 2000 cycles or 2 years*. Any compartment. damage by incorrect use will void the guarantee. Free service will not be provided by the manufacturer. Awilco Energysystem ES-2000... - Page 5 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/ TV technician for help. *) See warranty Awilco Energysystem ES-2000...
-
Page 6: Introduction
* Please contact authorized installer for proper INTRODUCTION connection to an engine alternator. Thank you for purchasing the AWILCO Energy- PRODUCT DESCRIPTION system. With our state of the art, easy to use design, this product will offer you reliable ser- ES-2000 includes the items list below. -
Page 7: Installation
8 cm. of space around the unit for optimal ventilation. (Continued on next page) REAR FRONT Andersson Connectors AC Output Socket Display AC Output Circuit Breaker Mounting for brackets AC Input Plug AC Output Plug 5V DC output Awilco Energysystem ES-2000... - Page 8 • Observe that your target area will allow full current in reverse mode. proper support for the brackets, proper room for cables leading to/from the AC and DC connectors as well as the USB connector on the rear. Awilco Energysystem ES-2000...
- Page 9 • Plug in a small AC load like a 40W table lamp or small appliance to the AC socket to verify AC is available. • The unit is successfully installed and functioning properly. Awilco Energysystem ES-2000...
-
Page 10: Connecting To Bluetooth
Under U.I.T.C. info you can follow the 1. Download the APP by scanning APP-store battery temperature and – cycles or Play store - AWILCO. b. Under System info ”Events” includes a log status of the battery. 5. Choose the dots in the lower right corner and the box ”Login dialog”... -
Page 11: Inverter/Charger Operation
See more details on Inverter Setting. Amber: Battery (Inverter) Mode ‘Display’ LED is used to indicate the digital display function. Green: Display is showing Battery voltage in volts. Amber: Display is showing Output power in KW. (Continued on next page) Awilco Energysystem ES-2000... - Page 12 ‘Select’ button function: • Turns the inverter On/Off during • Check unit setting: Press once to Battery Mode. Press and hold for 1 check or verify unit’s present set second to turn the unit either ON functions or OFF. Awilco Energysystem ES-2000...
- Page 13 A higher power system with bigger inverter surge power up to two times the rated output is required for these appliances. power, some high surge loads like sump- pumps, heavy duty motors etc. may still trigger Awilco Energysystem ES-2000...
-
Page 14: Feature Setting
SdL – Under voltage shutdown set to low setting bAt (Battery type): LI – Lithium Cb (Maximum current): Cb3 – Maximum Shore Power Current draw is 30A for 120V models and 16A for 230V models. FAO (Fan Operation Setting) Fd (Factory default) Awilco Energysystem ES-2000... - Page 15 OFF, even with the AC Input power being present in By-pass mode. When the unit is turned off using the ‘Power’ button, the display remains ON showing the battery voltage and the ‘Status’ LED will turn off. 5A-55A Bulk/Float current setting: 5A/1.5A, 15A/3A, 35A/4A, 55A/6A. Awilco Energysystem ES-2000...
- Page 16 11.8 Vdc Under voltage recovery: 12.6 Vdc ALARM SETTING Fault and warning audible alarm is disabled. Display panel only shows error code and audible alarm will not sound. Audible alarm will sound when fault or warning occurs. Awilco Energysystem ES-2000...
- Page 17 10A or higher >16Aac 5 Adc >9Aac 5 Adc >11Aac and <16Aac 15 Adc >7Aac and <9Aac 15 Adc >6Aac and <11Aac 35 Adc >3Aac and <7Aac 35 Adc <6Aac 55 Adc <3Aac 55 Adc (Continued on next page) Awilco Energysystem ES-2000...
- Page 18 There is no fans slow-speed (they run at full speed when activated). This is the factory default setting. MANUFACTURING DEFAULT SETTING Reset all settings to manufacturing default settings (In1, AL1, SdL, AGM, Cb3 and maximum current setting for the charger) Awilco Energysystem ES-2000...
- Page 19 • Press ‘Select’ button for 1 second to enter Individual Function Set Menu and you can make change to the settings. • The unit will EXIT the Main Menu automatically if ‘Power’ and ‘Select’ buttons are not triggered for more than 5 seconds. Awilco Energysystem ES-2000...
-
Page 20: Troubleshooting
“Power” button is pressed once, the display and available. LEDs stay working for about 10 sec only. With this setting, the unit will provide AC Output Power only when the AC Input Power is available. Awilco Energysystem ES-2000... -
Page 21: Specifications
ANDERSON INPUT/OUTPUT PORTS Anderson Connector 1 120A when using only one pin / 240A when using both pins Anderson Connector 2 120A 120A Anderson Connector 3 120A when using only one pin / 240A when using both pins Awilco Energysystem ES-2000... - Page 22 Charger Current (max) 55 ADC 55 ADC Charger Current Setting (A) 5,15,35,55 5,15,35,55 Battery Type Gel, Flooded, AGM, Fixed Gel, Flooded, AGM, Fixed Charge Control Bulk/Absorption/Float Bulk/Absorption/Float Efficiency >80% >80% BATTERY Type LiFePO4 LiFePO4 Capacity 12V 100AH 12V 100AH Awilco Energysystem ES-2000...
- Page 23 Dimensions: h x w x d (front view) 241 mm x 397 mm x 339 mm 241 mm x 397 mm x 339 mm OPTIONAL ACCESSORIES External Battery Bank AWILCO article LFP12100BM AWILCO article LFP12100BM Anderson Connector Wire Assembly Please refer to www.awilco.dk for options Awilco Energysystem ES-2000...
-
Page 24: Warranty
Misuse includes improper wiring or that applies to this unit, and it sets forth all connecting to improper polarity power sources. the responsibilities of AWILCO ApS. There is no other warranty, other than those described herein. Any implied warranty of merchantability... - Page 25 If the unit is repaired, new or re- call our Customer Service Department at conditioned replacement parts may be used, at mail@awilco.dk or +45 56 56 54 00 for general manufacturer’s option. A unit may be replaced information if applicable.
-
Page 26: Appendix I
APPENDIX I Awilco Energysystem ES-2000... -
Page 27: Appendix Ii
0.2C CC to 14.6V, and CV to 200mA cut off Dimensions Discharge, 0.2C DC discharge to 9.2V, 80% or TBD by Awilco on External Battery bank details. more of 1st cycle capacity at 0.2C discharge of operation, cycles quantity must not be less than ELECTRICAL FEATURES: 2000 cycles. - Page 28 Otherwise, the battery will be damaged 2. Negative terminal – (Andersson BLACK or burned. connector) from battery 1 to battery 2. EXAMPLE OF 4 EXTERNAL BATTERIES CONNECTED IN PARALLEL: BATTERY 1 BATTERY 2 BATTERY 3 BATTERY 4 Awilco Energysystem ES-2000...
- Page 29 Make sure the battery is fastened. Connection impedance < 0.1m. • Do not use the batteries in series. This will cause sparks, short circuit and destruction at the battery. Awilco Energysystem ES-2000...
- Page 30 Awilco Energysystem ES-2000...
- Page 31 Awilco Energysystem ES-2000...
