Summary of Contents for Deco Pixel Strip Drive3.0

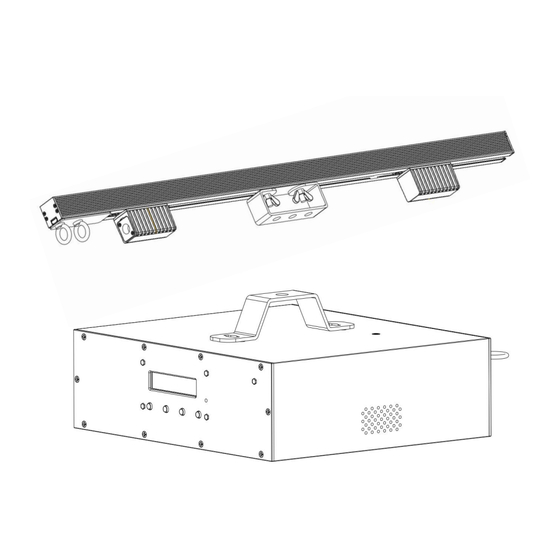

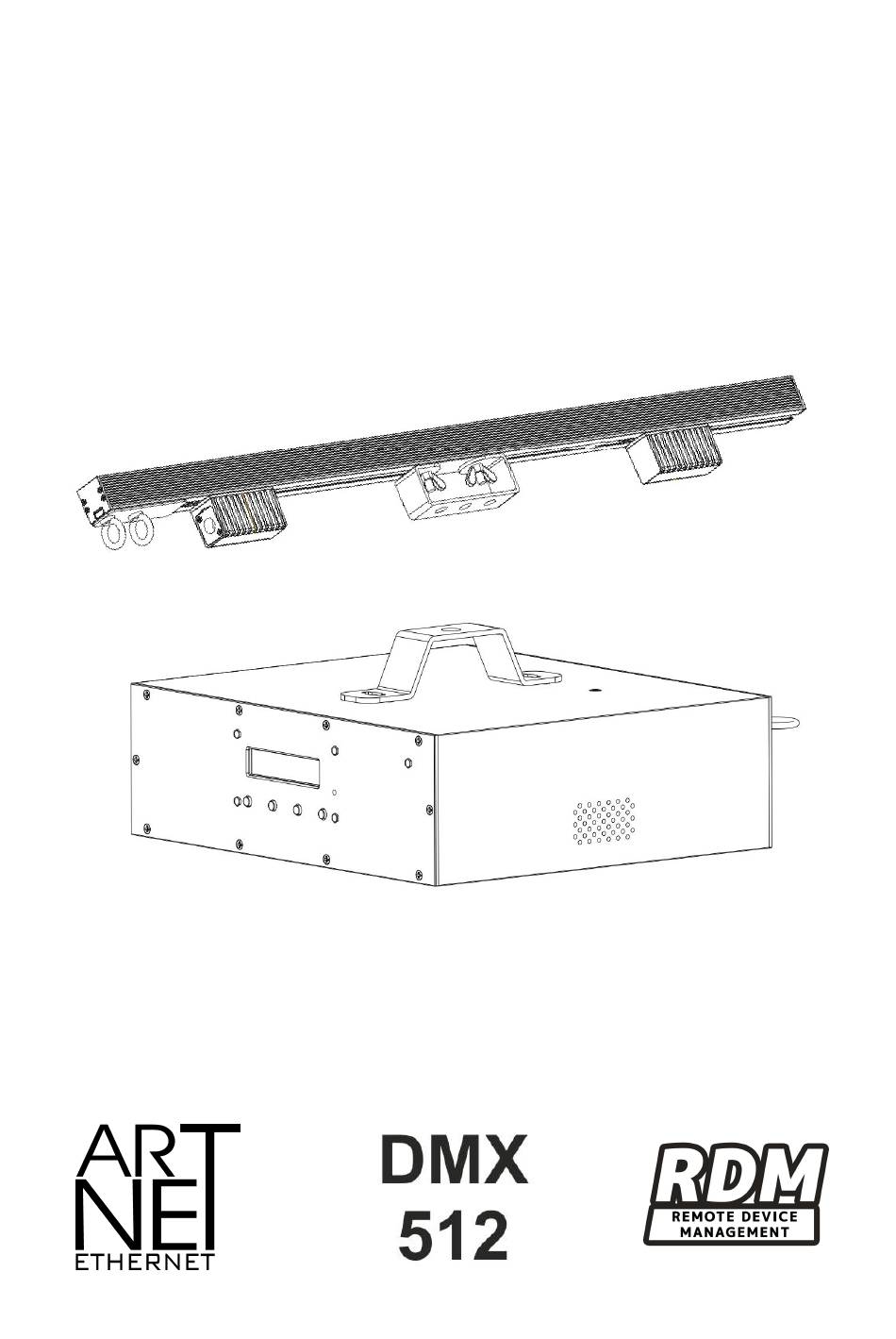

- Page 1 Pixel Strip Drive30 QRG IP65 Pixel-Strip Drive3.0 Pixel Strip Drive QRG...
- Page 2 Pixel Strip Drive30 QRG Safety Notes: Read all the following Safety Notes before working with this product. These notes include important information about the installation, usage, and maintenance of this product This icon indicates critical installation, configuration, or operation information. Failure to comply with this information may render the fixture partially or completely inoperative, damage third-party equipment, or cause harm to the user.
-
Page 3: What Is Included
Once you receive the product, carefully open the package and make sure all the pieces included are in good condition. The followng items should be included in the package: · Pixel Strip Drive3.0 · 1.5M CAT-5 Net-cable+1.2M Power Cable · Quick Reference Guide If there are any missing pieces, please contact the local dealer where you product. -
Page 4: Product Overview
Pixel Strip Drive30 QRG Product Overview: Pixel Strip Drive QRG... - Page 5 Pixel Strip Drive30 QRG Mounting The pixel-Strip Drive has four (4) mounting points (one on each corner) with 10mm holes to which you can install screws and mount this product directly to almost any flat surface, truss, or other load bearing structure in any orientation.
-
Page 6: Signal Connections
Pixel Strip Drive30 QRG Signal Connections Art-Net™ Connection Art-Net™ is an Ethernet protocol that uses TCP/IP that transfers large amount of DMX512 data using an etherCON® RJ45 connection over a large network. Kling-Net Connection Kling-Net is a network protocol that allows auto configuration of display devices using an etherCON RJ45 Ethernet connection. -
Page 7: Power Linking
Pixel Strip Drive30 QRG Each port of Drive can support 4Pcs. Pixel Strip Make sure the total length of the connecting network cables (RJ45) does not exceed 10 meters. Power Linking The \Drive supports power linking. You can power link up to ·... - Page 8 Pixel Strip Drive30 QRG Drive Power Linking Diagram: Pixel Strip Drive QRG...
- Page 9 Pixel Strip Drive30 QRG MENU: Pixel Strip Drive QRG...
-
Page 10: Technical Parameters
Pixel Strip Drive30 QRG Technical Parameters: Size:204x260x88mm Power Supplier:Auto-ranging 100v to 240v,50/60Hz Output Voltage:48V Consumption:500W Date Connections:RJ45 for Kling-net & Art-net and DMX DMX CH Model: 10CH Model: Channe Description address 0-255 General Dimmer 0-255 Strobe 0-255 0-255... - Page 11 Pixel Strip Drive30 QRG 55CH Model: Channel DMX Description address 0-255 General Dimmer 0-255 Strobe 0-255 Built-in program 1 (multi-color effect. The last one is auto running) 0-255 Built-inprogram2(singlecoloreffect,canbecontrolledbychannel9.Thelastone is auto-running 0-255 Speed for built-in effects 0-255 Color for built-in effects 0-255 Sensitivity of sound control (week ->...
