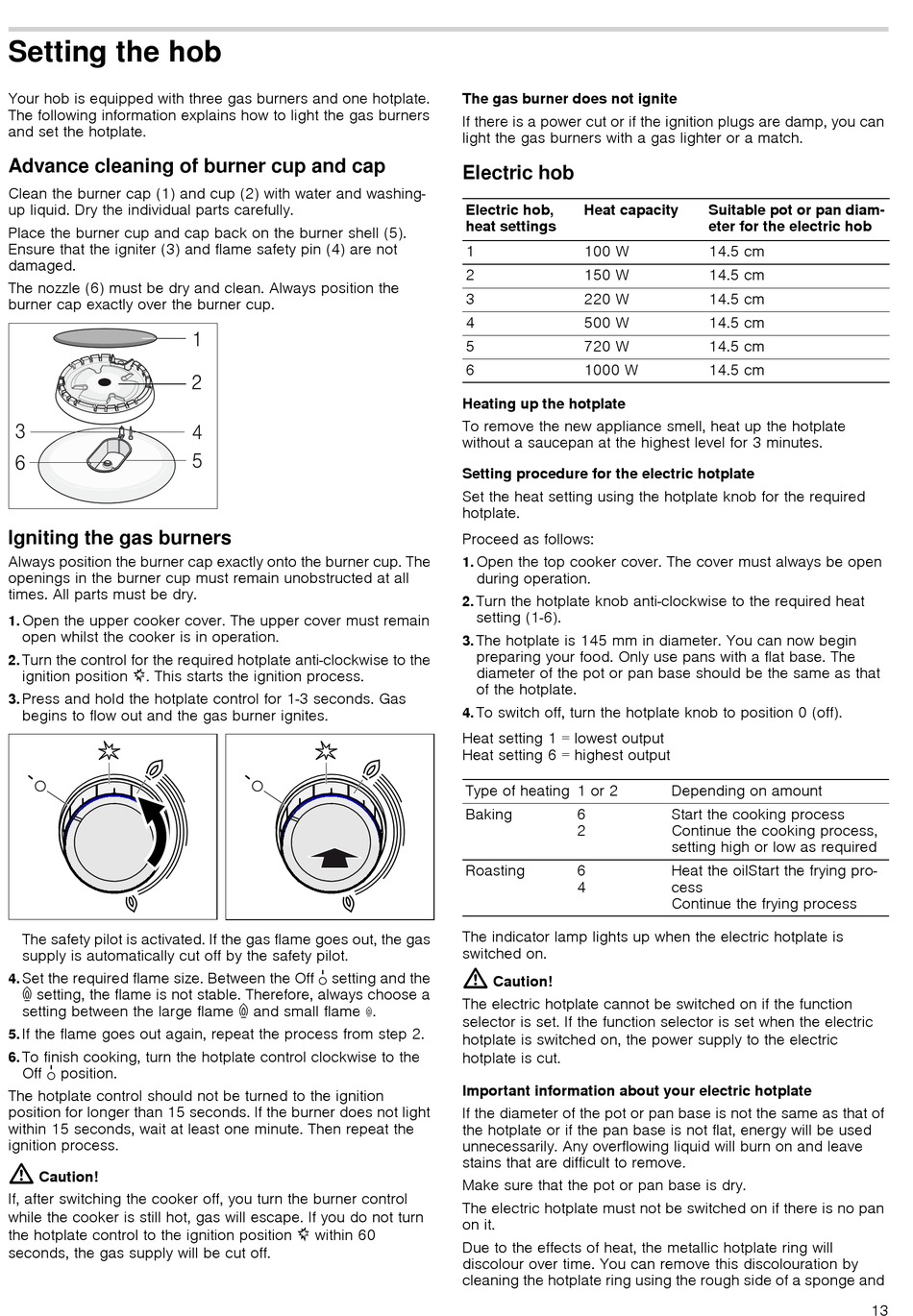

Setting the hob

Your hob is equipped with three gas burners and one hotplate.
The following information explains how to light the gas burners
and set the hotplate.

Advance cleaning of burner cup and cap

Clean the burner cap (1) and cup (2) with water and washing-
up liquid. Dry the individual parts carefully.
Place the burner cup and cap back on the burner shell (5).
Ensure that the igniter (3) and flame safety pin (4) are not
damaged.
The nozzle (6) must be dry and clean. Always position the
burner cap exactly over the burner cup.

Igniting the gas burners

Always position the burner cap exactly onto the burner cup. The
openings in the burner cup must remain unobstructed at all
times. All parts must be dry.
Open the upper cooker cover. The upper cover must remain
1.
open whilst the cooker is in operation.
Turn the control for the required hotplate anti-clockwise to the
2.
ignition position 8 . This starts the ignition process.
Press and hold the hotplate control for 1-3 seconds. Gas
3.
begins to flow out and the gas burner ignites.
The safety pilot is activated. If the gas flame goes out, the gas
supply is automatically cut off by the safety pilot.
Set the required flame size. Between the Off
4.
setting, the flame is not stable. Therefore, always choose a
—
setting between the large flame
If the flame goes out again, repeat the process from step 2.
5.
To finish cooking, turn the hotplate control clockwise to the
6.
Off þ position.
The hotplate control should not be turned to the ignition
position for longer than 15 seconds. If the burner does not light
within 15 seconds, wait at least one minute. Then repeat the
ignition process.
:
Caution!
If, after switching the cooker off, you turn the burner control
while the cooker is still hot, gas will escape. If you do not turn
the hotplate control to the ignition position
seconds, the gas supply will be cut off.
setting and the
þ
and small flame .
— ˜
8 within 60
The gas burner does not ignite
If there is a power cut or if the ignition plugs are damp, you can
light the gas burners with a gas lighter or a match.

Electric hob

Electric hob, Heat capacity
heat settings
1 100 W
2 150 W
3 220 W
4 500 W
5 720 W
6 1000 W
Heating up the hotplate
To remove the new appliance smell, heat up the hotplate
without a saucepan at the highest level for 3 minutes.
Setting procedure for the electric hotplate
Set the heat setting using the hotplate knob for the required
hotplate.
Proceed as follows:
Open the top cooker cover. The cover must always be open
1.
during operation.
Turn the hotplate knob anti-clockwise to the required heat
2.
setting (1­6).
The hotplate is 145 mm in diameter. You can now begin
3.
preparing your food. Only use pans with a flat base. The
diameter of the pot or pan base should be the same as that
of the hotplate.
To switch off, turn the hotplate knob to position 0 (off).
4.
Heat setting 1 = lowest output
Heat setting 6 = highest output
Type of heating 1 or 2
Baking 6
2
Roasting 6
4
The indicator lamp lights up when the electric hotplate is
switched on.
:
Caution!
The electric hotplate cannot be switched on if the function
selector is set. If the function selector is set when the electric
hotplate is switched on, the power supply to the electric
hotplate is cut.
Important information about your electric hotplate
If the diameter of the pot or pan base is not the same as that of
the hotplate or if the pan base is not flat, energy will be used
unnecessarily. Any overflowing liquid will burn on and leave
stains that are difficult to remove.
Make sure that the pot or pan base is dry.
The electric hotplate must not be switched on if there is no pan
on it.
Due to the effects of heat, the metallic hotplate ring will
discolour over time. You can remove this discolouration by
cleaning the hotplate ring using the rough side of a sponge and
Suitable pot or pan diam-
eter for the electric hob
14.5 cm
14.5 cm
14.5 cm
14.5 cm
14.5 cm
14.5 cm
Depending on amount
Start the cooking process
Continue the cooking process,
setting high or low as required
Heat the oilStart the frying pro-
cess
Continue the frying process
13
