MORDOMUS PIR MS Manual

1. GENERAL FEATURES:

Reading points: 24; (20) infrared memories, (1) temperature
reading, (1) brightness and (1) motion sensor, and (1) tamper;
Control Points: 8 outputs infrared;
Control: Via MD BUS;
Applications: Reading temperature and luminosity, infrared
interfacing and reading sensors PIR and Tamper;

2. GENERAL SPECIFICATIONS:

Voltage: 12VDC;
Consumption: 35mA @ 12VDC;
Storage Temperature: -10 ºC to 60 ºC;
Operating Temperature: 10 ºC to 50 ºC;
Maximum humidity: 80% non-condensing;
Reading Temperature: 0 ºC to 50 ºC;
Brightness: 10 levels;
Entries infrared: 20 keys remote control are recognized as
inputs Mordomus;
Infrared outputs: 8 Learning Keys to remote data output
(command devices infrared).
Physical Specifications:
Dimensions: 110mm X 65mm X 40mm;
Level of Protection: IP20, for indoor use.
Directives:
-Electromagnetic Compatibility Directive / EMC
Directive 2004/108/EC
3. C OMPATIBILITY:
PCCWd Compatibility: Firmware 3.4 or higher version V3.31
with BUS Adapter;
Mordomus Software Compatibility: Mordomus Software
v2015.2 or higher.

4. SECURITY:

Before making any

connections,

instructions.
Manual: PIRMS-1549-EN
PIR MS – Multi Sensor

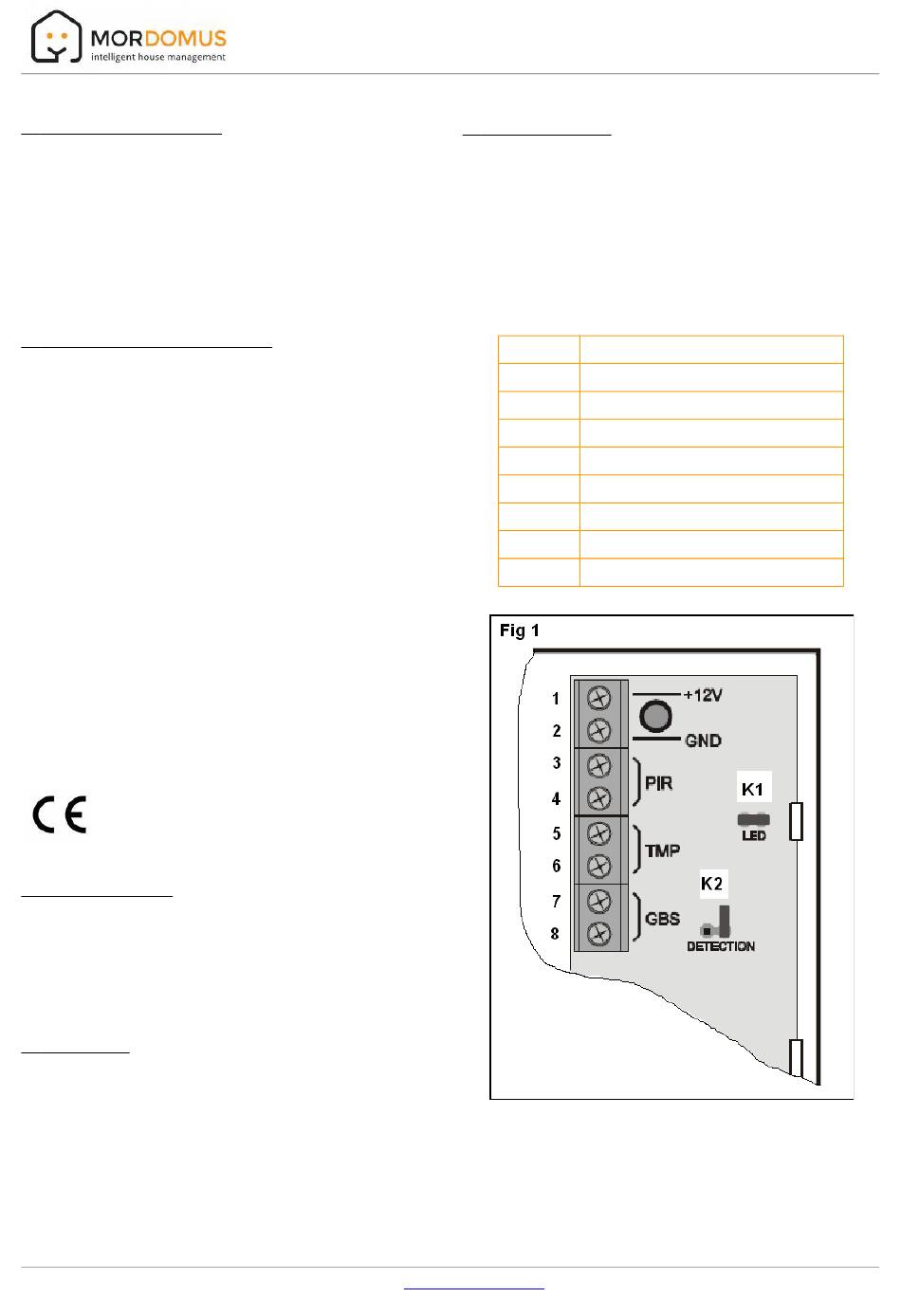

5. CONNECTIONS:
And specification section of conductors:
Table of Connections
please read these
www.mordomus.com
Circuit Bus:
CAT6 Cable F/UTP shielded, twisted;
Power Circuit:
CAT6 Cable F/UTP shielded, twisted;
:
Number
1
2
3 Contact PIR (normally closed)
4 Contact PIR (normally closed)
5 Tamper (normally closed)
6 Tamper (normally closed)
7 MD Bus RX (a)
8 MD Bus RX (b)
Hardware: V3.0
Firmware: V4.4
Function
+12VDC
GND
