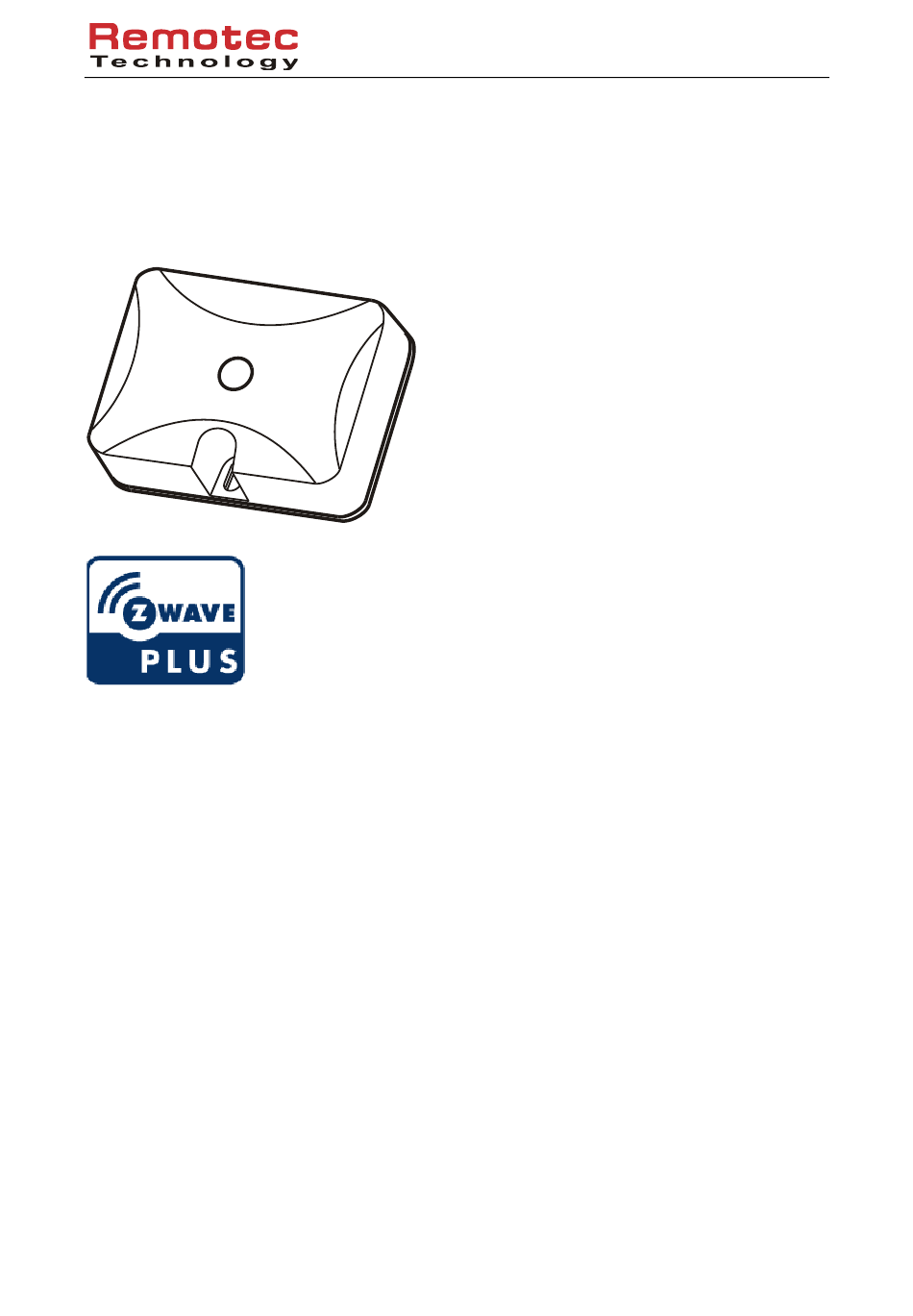

Wireless Z-Wave Control
ZRP-120NA
Z-Wave Repeater
USER MANUAL
Introduction
Thank you for choosing ZRP-120 Z-Wave Repeater product. ZRP-120 is a Z-Wave
repeater with best RF performance to replicate Z-Wave signals in a network. The
repeater re-transmits an input Radio Frequency (RF) signal by routing the signal
around obstacles and radio dead spots to ensure that the signal is received at its
intended destinations.
ZRP-120 is a security enabled Z-Wave plus device. A security Enabled Z-Wave Plus
Controller must be used in order to fully utilize the product.
Page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZRP-120NA and is the answer not in the manual?

Questions and answers

Related Manuals for Remotec ZRP-120NA

Summary of Contents for Remotec ZRP-120NA

  • Page 1 Wireless Z-Wave Control ZRP-120NA Z-Wave Repeater USER MANUAL Introduction Thank you for choosing ZRP-120 Z-Wave Repeater product. ZRP-120 is a Z-Wave repeater with best RF performance to replicate Z-Wave signals in a network. The repeater re-transmits an input Radio Frequency (RF) signal by routing the signal around obstacles and radio dead spots to ensure that the signal is received at its intended destinations.

  • Page 2: Key Features

    Glossary Device or Devices and nodes are all terms to describe an individual Z-Wave device. Node These are all interchangeable when setting up your Z-Wave network. Inclusion Add a Z-Wave device to the network. Exclusion Remove a Z-Wave device from the network. Remove To take a device out of a group, scene or association group while that device still exists in the same Z-Wave network.

  • Page 3: Product Overview

    Product Overview Status LED PROG Push button Fixing hole AC plug External screw fixture Washer Installation Location WARNING: To avoid fire, shock, or death; turn off power at circuit breaker or fuse and test that power is off before dismount or mount the unit with the screw!. In case that the user needs to mount the unit with screw, please refer to below figures and select the desired configuration.
  • Page 4 Grounded AC outlet Grounded AC outlet with Un-grounded AC outlet with center screw upper and lower screw with center screw Note: When plug the ZRP-120 into the AC receptacles, there will be an air gap between ZRP-120 and wall plate. User can use additional 1 or 2 washers to fill up this air gap and to stabilize the installation.
  • Page 5 Z-Wave setup and operations Include/Exclude ZRP-120 to/from a Z-Wave Gateway Include or Exclude the ZRP-120 from the existing Z-Wave Home Control Network with your primary controller. Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. When prompted by your primary controller, triple click the PROG button within 1 second.

  • Page 6: Restoring Factory Defaults

    Receive command / LED will flash 2 times, and then return to previous ON or OFF Send command or data stage. Configure command error LED will rapidly flash 6 times, and then return to previous ON or OFF stage. Restoring Factory Defaults All Configuration Parameter values and Association information will be restored to factory default settings and excluded from the network.

  • Page 7: Maintenance

    Do not use corrosive or abrasive cleansers on your unit. Keep the unit dust free by wiping it with a soft, dry cloth. Do not disassemble your unit; it contains no user-serviceable parts. Technical Specifications Model no. BW8141US (ZRP-120NA) RF frequency 908.42MHz Input voltage / frequency 120Vac / 60Hz Input power and current 0.5W / 12mA @ 120Vac...
  • Page 8 Certifications UL Listed: This power unit is intended to be correctly orientated in a vertical or floor mount position. FCC Information FCC ID : This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 9: Warranty

    All warranty claims must be made to Remotec appointed distributors or dealers during the applicable warranty period. This warranty gives you specific legal right and you may also have other rights which vary in each country.
