Contemporary Controls BASrouter Portable Installation Manual page 2

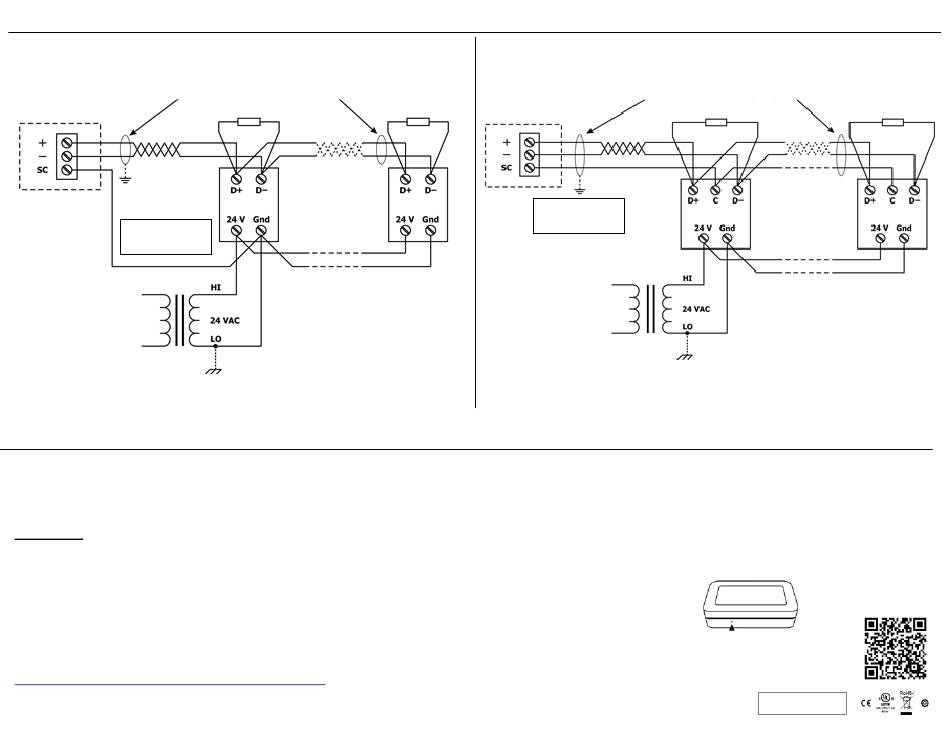

MS/TP Physical Layer Connection Options
2-wire MS/TP Bus
Connect shield to earth at only one point
BASRTP-B
Do NOT connect
shield to SC pin !
Web Page Configuration
The BASrouter is configured using a web server accessible from any PC on the local network with recent versions of any standard web browser installed. To configure the
router initially, connect it to your Windows PC using an Ethernet cable and set the PC's IP and subnet mask in Local Area Connection –> Properties. In the Internet Protocol
Version 4 (TCP/IPv4) settings of your Windows PC, specify an IP address and a Subnet mask in the same subnet as the BASrouter (e.g. 192.168.92.5 /24).
BASrouter's factory-programmed: Default IP address is 192.168.92.68 and a Class C subnet mask of 255.255.255.0 (/24). User Name is: admin and Password is: admin
ATTENTION: The default login credentials must be changed before the BASrouter system configuration can be altered. Please change the
password to an 8-10 character alphanumeric value (at least one letter and one number). This ensures authorized access to the router only.
Reset IP switch is located on the side of the unit. Press and hold the Reset IP button using a paper clip for at least 3 seconds
while the router is powered by USB cable. Remove USB power cable and then restore power again to complete the reset IP,
User ID, and Password procedure to factory-programmed defaults.
For complete datasheet and details on BASrouter, support, or compliance information, please download our BASrouter User Manual at:
https://www.ccontrols.com/basautomation/basportable.php
Contemporary Control Systems, Inc. reserves the right to make changes in the specifications of the product described within this manual at any time without notice and without obligation of Contemporary Control Systems, Inc.
to notify any person of such revision or change.
120 Ω
120 Ω
Up to 31 Full-load
MS/TP
Field Devices
(optional)
and click on the Support tab under More Information.
3-wire MS/TP Bus
Connect shield to earth at only one point
BASRTP-B
Do NOT connect
shield to SC pin !
120 Ω 120 Ω
Up to 31 Full-load
MS/TP
Field Devices
(optional)
Reset Switch
