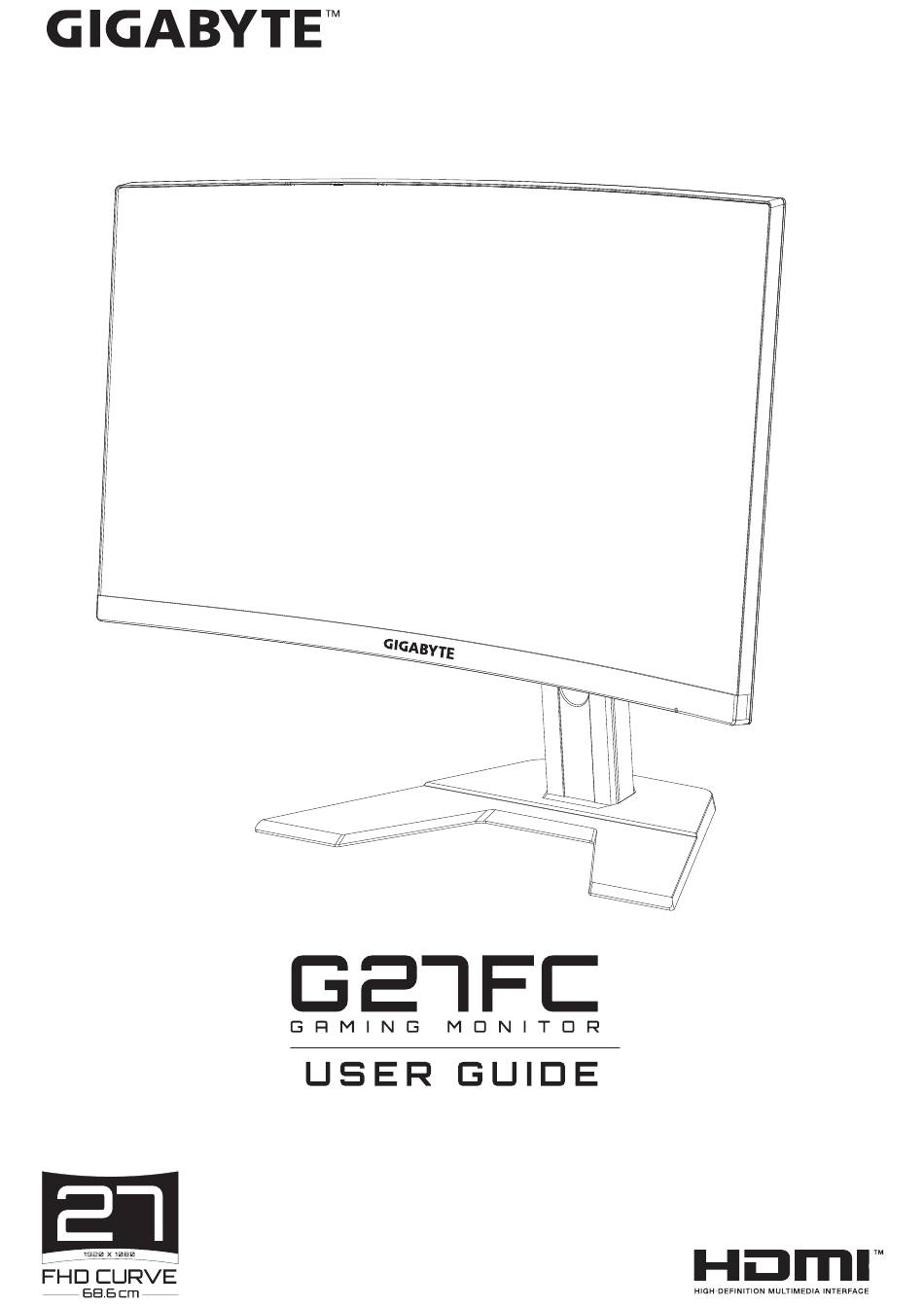

Gigabyte G27FC User Manual

Gaming monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G27FC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gigabyte G27FC

Summary of Contents for Gigabyte G27FC

  • Page 2 GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE’s prior written permission. • In order to assist in the use of this monitor, carefully read the User Guide.

  • Page 3: Safety Information

    Supplier’s Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: LCD monitor Trade Name: GIGABYTE Model Number: G27FC Responsible Party – U.S. Contact Information: G.B.T. Inc. Address: 17358 Railroad street, City Of Industry, CA91748 Tel.: 1-626-854-9338 Internet contact information: https://www.gigabyte.com...
  • Page 4 European Union (EU) Community Waste Electrical & Electronic Equipment (WEEE) Directive Statement GIGABYTE will fulfill the national laws as interpreted from the 2012/19/EU WEEE (Waste Electrical and Electronic Equipment) (recast) directive. The WEEE Directive specifies the treatment, collection, recycling and disposal of electric and electronic devices and their components.
  • Page 5 LCD Monitor User's Manual End of Life Directives-Recycling The symbol shown below is on the product or on its packaging, which indicates that this product must not be disposed of with other waste. Instead, the device should be taken to the waste collection centers for activation of the treatment, collection, recycling and disposal procedure.
  • Page 6 LCD Monitor User's Manual Niniejsze urządzenie zostało poddane testom i stwierdzono jego zgodność z wymaganiami dyrektywy. ES Prohlášení o shodě Toto zařízení splňuje požadavky Směrnice o Elektromagnetické kompatibilitě 2014/30/EU, Směrnice o Nízkém napětí 2014/35/EU, Směrnice ErP 2009/125/ES, Směrnice RoHS 2011/65/EU a 2015/863. Tento produkt byl testován a bylo shledáno, že splňuje všechny základní...
  • Page 7 LCD Monitor User's Manual China RoHS Compliance Statement 中国《废弃电器电子产品回收处理管理条例》提示性说明 为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守 国家废弃电器电子产品回收处理相关法律法规，将其交给当地具有国家认可的回 收处理资质的厂商进行回收处理。 环保使用期限 Environment-friendly use period 此标识指期限（十年），电子电气产品中含有的有害物质在正常使 用的条件下不会发生外泄或突变，电子电气产品用户使用该电子电 气产品不会对环境造成严重污染或对其人身、财产造成严重损害的 期限。 产品中有害物质名称及含量 : 有害物质 部件名称 铅 汞 汞 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Hg) (PBB) (PBDE) 印刷电路板及其电子组件 ○ ○ ○ ○ ○...
  • Page 8 LCD Monitor User's Manual 限用物質含有情況標示聲明書 Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱：液晶顯示器 型號（型式）：G27FC Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 六價鉻 多溴聯苯 多溴二苯醚 Unit 鉛 汞 鎘 Hexavalent Polybrominated Polybrominated...

  • Page 9: Safety Precautions

    LCD Monitor User's Manual Safety Precautions Read through the following Safety Precautions before using the monitor. • Only use the accessories that are provided with the monitor or that which are recommended by the manufacturer. • Keep the plastic packaging bag for the product in a place that cannot be reached by children.

  • Page 10: Table Of Contents

    LCD Monitor User's Manual Contents SAFETY INFORMATION ................. 3 Regulatory Notices ......................3 Safety Precautions ......................7 INTRODUCTION ..................... 10 Unpacking ..........................10 Package Contents ......................12 Product Overview ......................13 GETTING STARTED ..................15 Installing the Stand Base ....................15 Lift the monitor ........................17 Adjusting the Viewing Angle ..................18 Installing a Wall-Mount Bracket (Optional) ............20 Making Connections ......................22 USING THE DEVICE ..................
  • Page 11 LCD Monitor User's Manual GIGABYTE Service Information ...................44 - 11 -...

  • Page 12: Introduction

    LCD Monitor User's Manual INTRODUCTION Unpacking Open the upper cover of the packaging box. Then observe the unpacking instruction attached on the inner cover. Making sure the box is in the correct orientation, carefully lay the box on the stable surfacepen.
  • Page 13 LCD Monitor User's Manual Remove the items from the upper EPS foam. Remove the upper EPS foam. Then you can remove the stand from the lower EPS foam. - 13 -...

  • Page 14: Package Contents

    LCD Monitor User's Manual Package Contents The following items come with your packaging box. If any of them is missing, please contact your local dealer. Monitor Monitor Base Power Cable Stand USB Cable DP Cable Multilingual Installation Guide Quick Start Guide Warranty Card HDMI Cable Note: Please keep the packaging box and packing materials for future transporta-...

  • Page 15: Product Overview

    LCD Monitor User's Manual Product Overview Front View Power LED Control button - 15 -...
  • Page 16 LCD Monitor User's Manual Rear View HDMI-1 HDMI-2 USB 3.0 AC IN jack Headphone jack Kensington lock USB 3.0 ports (x2) HDMI ports (x2) USB upstream port DisplayPort - 16 -...

  • Page 17: Getting Started

    LCD Monitor User's Manual GETTING STARTED Installing the Stand Base Align the Stand base with the stand off underneath the stand. Then attach the base onto the stand. Tighten the screw to secure the monitor base in place. Note: You can either use a coin or a small flathead screwdriver to tighten the screw. - 17 -...
  • Page 18 LCD Monitor User's Manual Lift the assembled Stand & Base to an upright position and place it on a table. Then lower the stand plate to allow the safety plate to automatically release from its slot. Place the monitor on the package cushion or a flat surface, with screen facing down.

  • Page 19: Lift The Monitor

    LCD Monitor User's Manual Lift the monitor Take the monitor out of the box by holding the stand arm. Carefully lift the monitor, turn it over and place it upright on its stand on a flat even surface. Remove the foam wrap from the monitor. Note: Consider keeping the box and packaging in storage for use in the future when you may need to transport the monitor.

  • Page 20: Adjusting The Viewing Angle

    LCD Monitor User's Manual Adjusting the Viewing Angle Note: Hold the monitor base so that the screen does not topple when you make the adjustment. Adjusting the Tilt Angle Tilt the screen forward or backward to the desired viewing angle (-5˚ to 20˚). 20°...
  • Page 21 LCD Monitor User's Manual Changing the Screen Orientation Raise the screen to the highest position (130mm). 130 mm Note: Before making the height adjustment, make sure you have removed the safety plate from the stand. - 21 -...

  • Page 22: Installing A Wall-Mount Bracket (Optional)

    LCD Monitor User's Manual Installing a Wall-Mount Bracket (Optional) Use only the 100 x 100 mm wall mount kit recommended by the manufacturer. Place the monitor on a flat surface, with the screen facing down. Note: We recommend that you cover the table surface with soft cloth to prevent damage to the monitor.
  • Page 23 LCD Monitor User's Manual Attach the mounting bracket to the mounting holes at the rear of the monitor. Then use the screws to secure the bracket in place. 100 mm 100 mm Note: To mount the monitor on the wall, refer to the installation guide that is included in the wall-mount bracket kit.

  • Page 24: Making Connections

    LCD Monitor User's Manual Making Connections HDMI-1 HDMI-2 USB 3.0 Keyboard Mouse & USB disk drive Computer Power outlet Computer Headphone Power cable USB cable HDMI cable USB (A-Male to B-Male) cable DisplayPort cable Headphone cable - 24 -...

  • Page 25: Using The Device

    LCD Monitor User's Manual USING THE DEVICE Turning the Power On/Off Make sure the power switch next to the AC power input jack is switched to ON. Power On Connect one end of the power cable to the AC IN jack at the rear of the monitor. Connect other end of the the power cable to a power outlet.

  • Page 26: User Comfort Recommendations

    LCD Monitor User's Manual User Comfort Recommendations The following are some tips for comfortable viewing of your monitor: • Optimal viewing distances for monitors range from approximately 510 mm to 760 mm (20” to 30”). • A general guideline is to position the monitor such that the top of the screen is at or slightly below your eye-height when you are comfortably seated.

  • Page 27: Selecting The Input Source

    LCD Monitor User's Manual Selecting the Input Source Control Move the button right ) to enter the Input menu. Input Control Move the button center ) to select the desired input source. Then press the Control HDMI 1 HDMI 2 DisplayPort Select Exit...

  • Page 28: Operations

    LCD Monitor User's Manual OPERATIONS Quick Menu Hot Key Control By default, the button has been assigned with the specific function. Note: To change the preset hot key function, refer to the “Quick Switch” section on page 36. To access the hot key function, do the following: • Move the Control button up ( ) to enter the Black Equalizer...
  • Page 29 LCD Monitor User's Manual Control button down ( ) to enter the Picture Mode • Move the menu. Control Move the button center ) to select the desired option Picture Mode Control and press the Standard RTS/RPG Movie Reader Select Exit Control button left ( ) to enter the Volume menu.

  • Page 30: Function Key Guide

    LCD Monitor User's Manual Function Key Guide • Press the Control button to display the Main menu. Settings SETTING Dashboard Game Assist DASHBOARD EXIT GAME ASSIST Exit Power O POWER OFF Control Then use the button to select the desired function and configure the related settings.
  • Page 31 LCD Monitor User's Manual Once the Dashboard configuration is complete, it will transfer the system data to the SOC through the USB port and display the value of the selected function(s) on the screen. CPU temperature CPU frequency CPU fan Speed CPU usage Rate GPU temperature GPU frequency...
  • Page 32 LCD Monitor User's Manual • Game INFO: Configure the FPS (First Person Shooting) game related settings. √ Select Gaming Timer to select countdown timer mode. To disable this function, set the setting to OFF. √ Select Gaming Counter or Refresh Rate to enable/disable the gaming counter or real-time refresh rate setting.

  • Page 33: Configure The Device Settings

    LCD Monitor User's Manual Configure the Device Settings When the Main menu appears on the screen, move the Control button up ( ) to enter the Settings menu. Note: Use the Control button to navigate through the menu and make adjustments. Exit Move/Adjust Enter/Con rm...
  • Page 34 LCD Monitor User's Manual Item Description Aim Stabilizer When this function is enabled, it reduces the motion blur in a fast moving games. Note: This function is not available under the following conditions: - when the frequency setting is lower than 100Hz. - when the FreeSync function is activated.
  • Page 35 LCD Monitor User's Manual Picture Configure the image related settings. Resolution Brightness Contrast Sharpness Gamma Color Temperature 1920x1080 Normal Picture Mode Standard Gaming Standard Brightness Picture Contrast Display RTS/RPG Color Vibrance System Movie Sharpness Language Reader Gamma Save Settings sRGB Color Temperature Reset All Custon 1...
  • Page 36 LCD Monitor User's Manual Display Configure the display screen related settings. Resolution Brightness Contrast Sharpness Gamma Color Temperature 1920x1080 Normal Picture Mode Standard Gaming Input HDMI 1 Picture HDMI RGB PC Range HDMI 2 Display Overscan DisplayPort System Language Save Settings Reset All Exit Move/Adjust...
  • Page 37 LCD Monitor User's Manual System Configure the system related settings. Resolution Brightness Contrast Sharpness Gamma Color Temperature 1920x1080 Normal Picture Mode Standard Gaming Audio Volume Picture OSD Setting Mute Display Quick Switch Other Settings System Language Save Settings Reset All Exit Move/Adjust Enter/Con rm...
  • Page 38 LCD Monitor User's Manual Item Description Quick Switch Assign the function of the hot keys. Available options: Aim Stabilizer, Black Equalizer, Low Blue Light, Volume, Input, Contrast, Brightness, and Picture Mode. The default setting of the hot keys as below: Up ( ): Black Equalizer Down ( ): Picture Mode Right ( ): Input...
  • Page 39 LCD Monitor User's Manual Language Resolution Brightness Contrast Sharpness Gamma Color Temperature 1920x1080 Normal Picture Mode Standard Gaming English Picture 繁中 Display 简中 Deutsch System Language Français Save Settings 日本語 Reset All Exit 한국어 Move/Adjust Enter/Con rm Item Description Language Select an available language for the OSD menu.
  • Page 40 LCD Monitor User's Manual Save Settings Save all data. Resolution Brightness Contrast Sharpness Gamma Color Temperature 1920x1080 Normal Picture Mode Standard Gaming Setting1 Save Picture Setting2 Load Display Setting3 System Language Save Settings Reset All Exit Move/Adjust Enter/Con rm Item Description Setting1 After selecting, the Save and Load menu will appear for the player...
  • Page 41 LCD Monitor User's Manual Reset All Restore the monitor to its factory default settings. Resolution Brightness Contrast Sharpness Gamma Color Temperature 1920x1080 Normal Picture Mode Standard Gaming Picture Display System Language Save Settings Reset All Exit Move/Adjust Enter/Con rm - 41 -...

  • Page 42: Appendices

    LCD Monitor User's Manual APPENDICES Specifications Item Specifications Panel Size 27-inch Aspect Ratio 16:9 Resolution 1920 x 1080 Refresh Rate 165Hz LED Life 30000 hours (min.) Pixel Pitch 0.3114(H) x 0.3114(V) Response Time 1ms MPRT Brightness 250 nits (typ.) / 200 nits (min.) Contrast Ratio 3000:1 (typ.) Color Depth...

  • Page 43: Supported Timing List

    LCD Monitor User's Manual Supported Timing List Port Port HDMI 640x480@60Hz 640x480@60Hz 640x480@75Hz 640x480@75Hz 720x480@60Hz 720x480@60Hz 800x600@60Hz 800x600@60Hz 800x600@75Hz 800x600@75Hz 1024x768@60Hz 1024x768@60Hz 1024x768@75Hz 1024x768@75Hz 1280x720@60Hz 1280x720@60Hz 1280x720@120Hz 1280x720@120Hz 1280x720@144Hz 1280x720@144Hz 1920x1080@60Hz 1920x1080@60Hz 1920x1080@120Hz 1920x1080@120Hz 1920x1080@144Hz 1920x1080@144Hz 1920x1080@165Hz - 43 -...

  • Page 44: Troubleshooting

    LCD Monitor User's Manual Troubleshooting Problem Possible Solution(s) No power • Make sure the power cable is properly connected to the power source and the monitor. • Check the cable and plug to make sure they are not broken. • Make sure the monitor is turned on. No image appears • Make sure the monitor and the computer are properly on the screen...

  • Page 45: Basic Care

    PC, these devices cannot be charged using the USB cable. Vendor Device PID/VID Apple IPad PID_129A/VID_05AC Samsung Galaxy Tab2 10.1 PID_6860/VID_04E8 Samsung GALAXY TabPro PID_6860/VID_04E8 GIGABYTE Service Information More service information, please visit GIGABYTE official website: https://www.gigabyte.com/ - 45 -...
