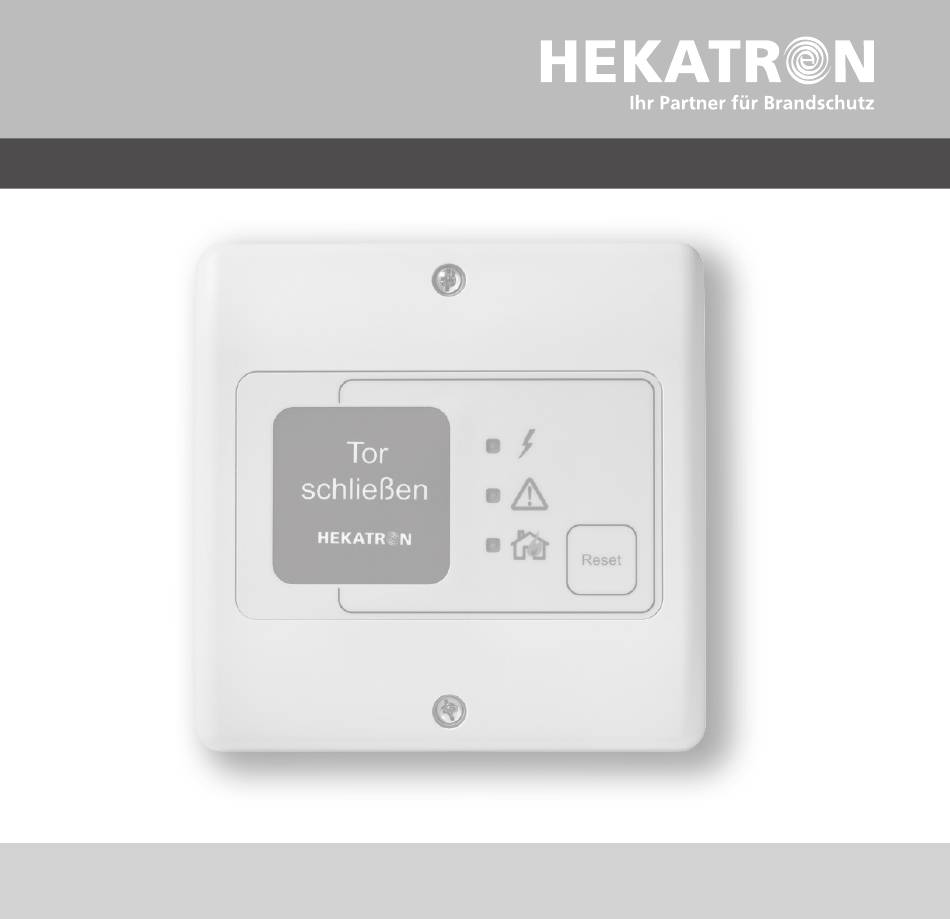

- Page 1 Instruction manual Control unit for hold-open systems FSZ Pro Edition 19.09.2018 7003067 www.hekatron.de...
-
Page 3: Table Of Contents
Product description ........7 FSZ Pro – technical data ....... . 8 Current requirements . - Page 4 11.2 Maintenance instructions ........37 11.3 Monthly functional test .
-
Page 5: General Safety Information And Protective Measures
1 General safety information and protective measures General safety information and protective measures The present documentation describes the function of the FSZ Pro with the hardware and software version applicable at the date of issue of this document. Information for Germany The currently valid test regulations of the Deutsches Institut für Bautechnik and the respective type... -
Page 6: Scope Of Delivery
(It is not allowed to dismount or manipulate the device. If the device is manipulated nevertheless, any warranty claims become void.) The information and warranty conditions in the general terms and conditions of Hekatron Vertriebs GmbH, Brühlmatten 9, D-79295 Sulzburg, shall apply. -
Page 7: Product Description
4 Product description Product description The hold-open control unit, FSZ Pro, is preferably used to supply hold-open systems with voltage. Compared to the FSZ Basis, the FSZ Pro offers some additional features. Switching power supply with higher performance (output current max. 900 mA) -
Page 8: Fsz Pro - Technical Data
5 FSZ Pro – technical data FSZ Pro – technical data Nominal voltage 230 V AC Nominal current consumption 234 mA Rated frequency 50 / 60 Hz Power consumption (apparent power / active power) 54.3 VA / 27.25 W Nominal output voltage... - Page 9 5 FSZ Pro – technical data Safety class „I“ Housing PC-ABS housing Colour signal white according to RAL 9003 Installation exposed assembly Installation position as desired Cable entries 6 x M16 und 2 x M20 Dimensions HxWxD 146 mm x 146 mm x 60.5 mm...
-
Page 10: Current Requirements
6 Current requirements Current requirements The FSZ Pro provides a total output current of 900 mA. This output current can be completely used for the required components of the hold-open system. The current required for the hold-open system consists of the sum total of all currents of the components connected. - Page 11 6 Current requirements 6.1.2 Installation of ESM Pro in FSZ Pro Open FSZ Pro enclosure and insert ESM Pro. Figure 1 The strut of the hinge serves as a guide for the groove the printed circuit board of the ESM Pro.
-
Page 12: Installing The Fsz Pro
7 Installing the FSZ Pro Installing the FSZ Pro The safe installation of the FSZ Pro requires only 2 holes (see annex drilling template). The FSZ Pro is therefore delivered including two screws and dowels. The installation position can be selected as desired. -
Page 13: Fsz Pro - Applications
A +24 V wire jumper must be fitted to connector 5 in the last detector to be connected (see Fig. 5). If no manual button (HAT) is connected, a wire bridge must be implemented to the HAT connection terminal in the FSZ Pro. If nothing is connected to the external alarm input, a jumper must also be set there. -
Page 14: Electrical Installation
9 Electrical Installation No more than 12 smoke switches must be connected to one stub. The remaining available current can be used by any number of electromagnetic door retainers (THM) and other consumer devices. The total current must not exceed 900 mA. The DIP switch 3 must be set to ON. - Page 15 The number of line connections should be kept as low as possible. Every required connection must be made by means of reliable methods. Clamped connections require the use of terminals with pinch protection. Do not place lines directly across the printed circuit board of the FSZ Pro.
-
Page 16: Control Unit Fsz Pro For Hold-Open Systems
9 Electrical Installation 9.2 Control unit FSZ Pro for hold-open systems 9.2.1 Printed circuit board with connection terminals Mains connection 230 V AC Potential-free Potential-free alternating contact alternating contact Connection of Connection of ext. manual smoke switch release and reset button... - Page 17 9 Electrical Installation Labelling Connection Note / remark Mains phase Mains neutral conductor Mains protective conductor Relay, line voltage NC Closed in the event of an alarm or fault Relay, line voltage COM1 Common potential-free contact Relay, line voltage NO Closed when system in operation +24 V Output voltage +24 V DC...
- Page 18 9 Electrical Installation Labelling Connection Note / remark Connection point terminal Activation e.g. via a contact of a fire AL_IN+ Ext. alarm input alarm control panel Activation e.g. via a contact of a fire AL_IN- Ext. alarm input alarm control panel Relay, line voltage Closed in the event of an alarm or fault Relay, line voltage...
-
Page 19: Termination Module Am 142
9 Electrical Installation 9.3 Termination module AM 142 9.3.1 Printed circuit board with connection terminals Fig . 3: Termination module AM 142 9.3.2 AM 142 connection Coming from the power supply unit or the second Going to the last smoke switch to last smoke switch ... -
Page 20: Fsz Pro - Operation
9 Electrical Installation 9.4 FSZ Pro - operation The FSZ Pro can be operated according to the requirements of DIBt and/or to the requirements of DIN EN 14637. The DIP switches in the FSZ Pro must be set accordingly. The DIP switches allow configuring the alarm storage and line surveillance features as well as using stubs with smoke switches. - Page 21 Line surveillance – DIP 3 If the FSZ Pro is used according to DIN EN 14637, this DIP switch must be set to “ON”. If the FSZ Pro is used according to DIBt, the system can be used with and without line surveillance.
- Page 22 The fault must be reset manually, only then does the system return to the operating state. If the mains voltage returns during the buffer time, the FSZ Pro returns directly to the operating state without a reset. The fault LED is switched off, all other outputs remain energized or switched on.
- Page 23 9 Electrical Installation Buffering 24 V activated - (FSZ Pro with ESM Pro) Only the 24 V supply voltage is buffered until the energy store is emptied. This means that in the event of a power failure, the smoke switches will continue to be supplied with power and devices connected to relay 1, such as the acoustic/optical signaling device (ROLP).
- Page 24 If the external alarm input is triggered, alarm forwarding is not prevented! If the horn has not been deactivated, an alarm is always acoustically signalled at the FSZ Pro. The magnet output is always switched off. Silent alarm OFF Silent alarm ON The „silent alarm“...
-
Page 25: Hold-Open System According To Din En 14637
Places 1, 4 and 5 are specified by DIN EN 14637 and place 3 by the respective type approval. Classification of a Hekatron hold-open system according to DIN EN 14637: Hold-open system DIN EN 14637... -
Page 26: Connection Configurations According To Dibt And Din En 14637
9.6 Connection configurations according to DIBt and DIN EN 14637 The module is loaded after initial commissioning! If the FSZ Pro is to be disconnected from the mains for installation purposes, wait until the „green LED“ (see page 32) has extinguished before changing the wiring. - Page 27 The system is connected to the FACP. The manual button must be simulated by a jumper. ORS/TDS ORS/TDS ORS/TDS FACP 1 2 3 6: Silent alarm FSZ Pro 5: Buffering 24 V 4: With/without horn 3: Line surveillance EN 14637 2: Number of stubs 1/2 1: Alarm storage 4 5 6 Fig . 6:...
- Page 28 Ö 1 2 3 To prevent a short-circuit, remove the red and black 6: Silent alarm connection wires. FSZ Pro 5: Buffering 24 V 4: With/without horn 3: Line surveillance EN 14637 2: Number of stubs 1/2 1: Alarm storage 4 5 6 Fig .
- Page 29 ORS/TDS ORS/TDS Magnet (termination stub) 1 2 3 6: Silent alarm FSZ Pro To prevent a short-circuit, 5: Buffering 24 V 4: With/without horn remove the red and black 3: Line surveillance EN 14637 2: Number of stubs 1/2 connection wires.
- Page 30 Ö 1 2 3 To prevent a short-circuit, remove the red and black 6: Silent alarm FSZ Pro 5: Buffering 24 V connection wires. 4: With/without horn 3: Line surveillance EN 14637 2: Number of stubs 1/2 1: Alarm storage 4 5 6 Fig .
- Page 31 ESM Pro is discharged. ORS/TDS RESET Ö Ö 1 2 3 6: Silent alarm FSZ Pro 5: Buffering 24 V 4: With/without horn 3: Line surveillance EN 14637 2: Number of stubs 1/2 1: Alarm storage 4 5 6...
-
Page 32: Signalling Of The Fsz Pro
9 Electrical Installation 9.7 Signalling of the FSZ Pro The keypad features three LEDs which signal the status of the system. LED green LED orange LED red Fig . 11: FSZ Pro keypad 9.7.1 Flashing sequences The LEDs feature different flashing sequences to indicate the different statuses. - Page 33 OFF Flashes Alarm Alarm of an external Externer alarm alarm device, e.g. a fire input alarm system Fault at FSZ Pro Fault at FSZ Pro Replace the device Flashes Fault in smoke System with line System with line switch stub (ORS)
- Page 34 Output current consumers too high current of the consumers and re-erect the system Flashes Fault at FSZ Pro Short-circuit of the 24-V Check the wiring 10 x supply Whether only one LED or both LEDs are flashing, depends on how the keypad is improperly connected.
-
Page 35: Certificate Of Conformity
10 Certificate of conformity 10 Certificate of conformity The contract firm which has installed the hold-open device must provide a declaration of the conformity of the design type with the general building type approval for each construction project. It must be in writing and must also contain at least the following information: • Z-No. -
Page 36: Commissioning And Acceptance
11 Commissioning and acceptance 11 Commissioning and acceptance 11.1 Acceptance testing according building type approval After a hold-open system has been installed ready for operation at the place of use, its proper function and installation according to instructions must be verified in an acceptance test. The applicant for the general building type approval must point out that this test must be performed. -
Page 37: Maintenance Instructions
(Company logo as well as month and year of acceptance) to be supplied by the applicant for this general design approval shall be affixed to the wall by the operator in the immediate vicinity of the closure, permanently. HEKATRON Vertriebs GmbH Postfach 1040 D-79296 Sulzburg &... -
Page 38: Monthly Functional Test
11 Commissioning and acceptance 11.3 Monthly functional test (Extract from the general building inspectorate approvals) It is the obligation of the owner/operator to keep the hold-open system operational at any time and to inspect the installation for correct functioning at intervals of no more than one month. If twelve functional tests that have been successively carried out at one-month intervals do not show any functional defects, the hold-open system only has to be inspected at 3-month intervals. -
Page 39: Functional Test
11 Commissioning and acceptance 11.5 Functional test The functional test of a hold-open system comprises the following checks: a) Manual release (manual release button or, if allowed, by manually pushing the off button) b) Release of the hold-open system by testing the fire detectors using the test procedures defined by the manufacturer of the fire detectors (e.g. -
Page 40: Maintenance
11 Commissioning and acceptance 11.6 Maintenance The maintenance of the hold-open system must comprise the elements of a functional test and, additionally, the following elements: a) Check for compliance with the documentation and the general building type approval; b) Cleaning of the functionally relevant components of the hold-open system, as far as contamiation can lead to impairment;... -
Page 41: Annex
12 Annex 12 Annex 12.1 Order data FSZ Pro 31-5400003-01-xx ESM Pro 31-5400004-01-xx Accessories kit 31-4100010-02-xx Termination module 142 (AM 142) 31-5700002-01-xx Magnet line surveillance QUP 10 31-4100015-01-xx Servicing and maintenance set IW Set RS 7001949 Slide-in unit FSZ QUP 10, english... -
Page 42: Technical Support And Application Support
12 Annex 12.3 Technical support and application support Hekatron Vertriebs GmbH Phone: +49 (0) 76 34 5 00-8050 Brühlmatten 9 Mailto: rs-support@hekatron.de D-79295 Sulzburg Werk 2 Z-6.510-2358 Z-x.x-xxxx... - Page 43 Terminal assignment ......16 Annual testing and maintenance ..38 Termination module AM 142 ....19 Application class ........25 Installing the FSZ Pro ......12 IW Set ..........40 Warranty ..........6 Buffering 24 V ........10 Building type approval ......36 LED .............
- Page 45 Bohrschablone Textanker...
- Page 48 Hekatron Vertriebs GmbH Brühlmatten 9 D-79295 Sulzburg Techn. Support +49 (0) 7634 500 - 8050 A company of rs-support@hekatron.de Securitas Gruppe Schweiz www.hekatron.de...
