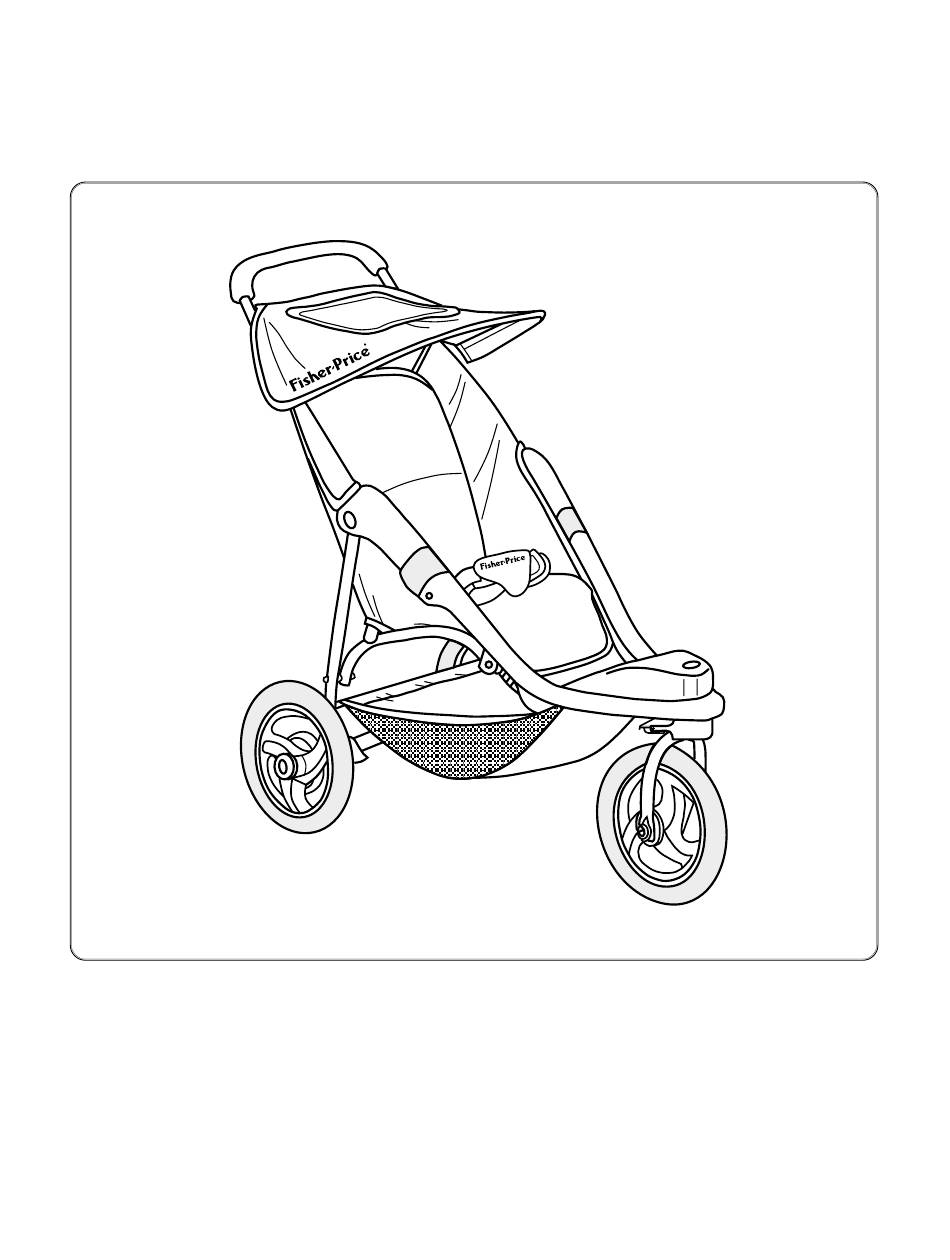

Town & Country
™
Stroller
Model Numbers: 79235, 79278, 79292
• Please save these instructions for future reference.
• Adult assembly is required.
• Tool needed for assembly: Adjustable Wrench.
• Tool needed for maintenance: Large Adjustable Wrench,
Long Shaft Phillips Screwdriver.
• Maximum weight of child: 40 lbs.
• Maximum height of child: 38 inches.
• Maximum storage weight for carry compartment: 8 lbs.
Fisher-Price
®
Advertisement
Table of Contents
Related Manuals for Fisher-Price Town & Country Series
Summary of Contents for Fisher-Price Town & Country Series
- Page 1 • Tool needed for assembly: Adjustable Wrench. • Tool needed for maintenance: Large Adjustable Wrench, Long Shaft Phillips Screwdriver. • Maximum weight of child: 40 lbs. • Maximum height of child: 38 inches. • Maximum storage weight for carry compartment: 8 lbs. Fisher-Price ®...
-
Page 2: Message To Parents
Message to Parents Thank you for purchasing the Fisher-Price Town & Country Stroller.The design of this stroller makes it easier to take your child everywhere you go...over sand, over grass and even gravel.We believe you will find the features of this Fisher-Price product to be a great help in the day-to-day care of your child. - Page 3 Parts Canopy Stay Canopy Frame Rear Wheel Rear Wheel Rear Axle Front Axle Tube Rear Axle Bolt Front Wheel CAUTION Please keep small parts and plastic bags out of children’s reach. Bolt - " x 3 " BOTH SHOWN ACTUAL SIZE...
- Page 4 Assembly To Unfold Handle Frame Latches Fork • Rest the fork on the floor. Handle • Lift the handle up until the frame latches “snap” into position. • Position the stroller with the handle on the floor. Handle Footrest Frame Latches Footrest •...
-
Page 5: Front Wheel Assembly
Front Wheel Assembly Front Wheel Front Axle Tube • Tighten the nut with an adjustable wrench. • Insert the front axle tube completely into the hole in the front wheel. Rear Wheel Assembly Please Note: To reduce friction and prevent excessive heat build-up, lubricate the rear axles with a light oil before assembly and regularly during use. -
Page 6: Canopy Assembly
Window Flap Keyhole Canopy • Test to be sure the rear wheel is secure by pulling on it. Mount • Repeat this procedure to attach the other rear axle and rear wheel. Canopy Stay Canopy Assembly • Turn the stroller upright. •... -
Page 7: Operation And Use
Operation and Use To Unfold Frame Latches Footrest • Position the stroller with the rear wheels on the floor. • Test to be sure both frame latches are secure by lightly pushing down on the handle while holding the footrest down.The frame latches should remain locked in Footrest position. - Page 8 Anchored End Buckle Seat Back Free End To tighten the waist belts: • Feed the anchored end of the waist belt up through the buckle to form a loop • Pull the free end of the waist belt • Repeat this procedure to tighten the other waist belt. Please Note: After adjusting the waist belts to fit your child, make sure you pull on them to be sure they are securely To adjust the seat back:...
- Page 9 To Fold for Storage Front (Swivel) Wheel Please Note: Lock the front (swivel) wheel to prevent wob- bling at higher speeds, or to keep the front (swivel) wheel Canopy straight when strolling over sand, grass or gravel. Frame Latches Lock Unlock •...
-
Page 10: Maintenance
Maintenance Over time, the fork may loosen causing the front of the stroller to wobble. To eliminate wobbling, please follow maintenance steps through Lock Nut Fork Tube Swivel Lock Bar • Position the stroller with the handle on the floor. •... - Page 11 Cone Nut Lock Nut Fork Tube • Replace the lock nut onto the fork tube. • With your hand, tighten the cone nut counter-clockwise a turn. • Tighten the lock nut counter-clockwise with an adjustable wrench. Do not over-tighten. Front Frame Retainer Front Washer Frame...
- Page 12 In Canada, call 1-800-567-7724, or write to: Mattel/Fisher-Price, 6155 Freemont Blvd., Mississauga, Ontario L5R 3W2. In Great Britain, telephone 01734 770488. In Australia, call the Fisher-Price Australian Consumer Advisory Service toll-free at 1-800-800-812, or write to: Fisher-Price, Mattel Pty. Limited, 461 Plummer Street, Port Melbourne,Victoria 3207.
