Summary of Contents for BEKA BA414DF-F

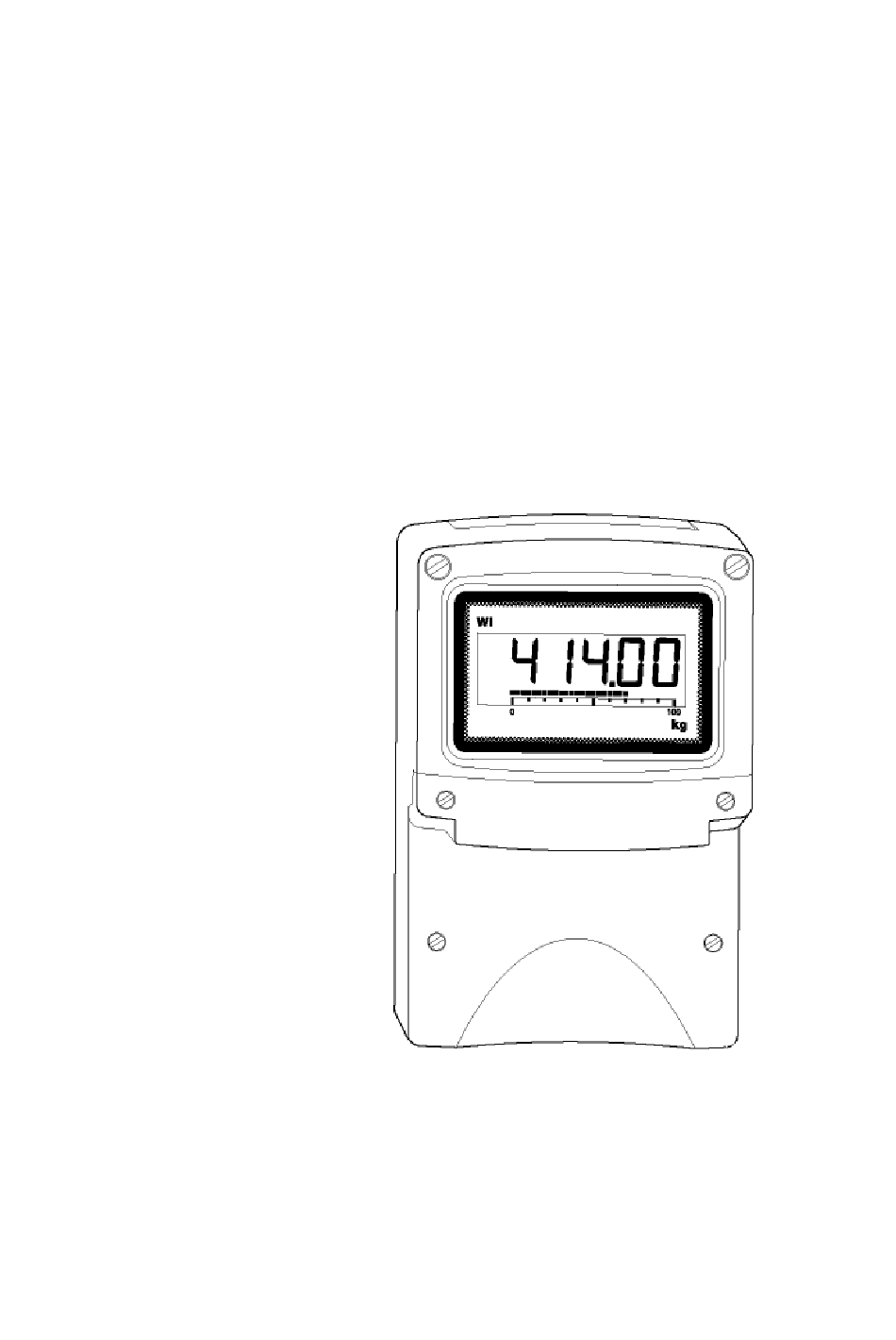

- Page 1 BA414DF-F FOUNDATION™ fieldbus Intrinsically safe Field mounting Fieldbus Indicator Issue: 9 Issue: 9 27th March 2019...
-
Page 2: Table Of Contents
5.1 Fault finding during commissioning 5.2 Fault finding after commissioning 5.3 Servicing 5.4 Routine maintenance 5.5 Guarantee 5.6 Customer comments The BA414DF-F is CE marked to show compliance with the European Explosive Atmospheres Directive 2014/34/EU and the European EMC Directive 2014/30/EU... -
Page 3: Description
ATEX dust certification is an option – see Appendix 1. For use in the presence of combustible dust, please refer to Appendix 1. For use in the USA and Canada, the BA414DF-F is available with optional intrinsic safety nonincendive FM and cFM Approval –... -
Page 4: Ex Ic Zones, Gas Groups And T Rating
2.3 Ex ic Zones, gas groups and T rating 2.5 Certification Label Information The BA414DF-F also has Group II Category 3G The certification information label is fitted in a Ex ic IIC Gc T4 –40 ≤ Ta ≤ 70 C entity parameter recess on the top outer surface of the enclosure. -
Page 5: Ex Ia Entity Systems
Therefore these BA414DF-F parameters do not need to be considered. 3.3 Ex ic entity systems The BA414DF-F Fieldbus Indicator also has Ex ic certification with entity parameters for applications in Zone 2. The higher Ui voltage allows the indicator to be used with segment couplers powered by Ex e or Power-i fieldbus trunks. -
Page 6: Installation
The BA414DF-F Fieldbus Indicator is housed in a apparatus, the instrument shall be installed robust IP66 glass reinforced polyester (GRP) such that even in the event of rare incidents, an enclosure incorporating an armoured glass window ignition source due to impact or friction and stainless steel fittings. -
Page 7: Maintenance
If a BA414DF-F fails after it has been functioning correctly, the table shown in section 5.1 may help to identify the cause of the failure. -
Page 8: Servicing
All communications are acknowledged whenever possible, suggestions 6.2 Tag plate implemented. The BA414DF-F can be supplied with a blank or custom laser engraved stainless steel plate secured by two screws to the front of the instrument enclosure. This plate... -
Page 9: Appendix 1
A1.2 Ex ic IIIC entity systems A1.1 Ex ia IIIC entity systems The BA414DF-F Fieldbus Indicator also has The BA414DF-F Fieldbus Indicator has Ex ia IIIC Ex ic IIIC certification for applications in Zone 22. T100ºC Da IP66 certification. Installations should... - Page 10 The segment can provide an additional 13mA to power the Fieldbus Indicator. equivalent capacitance BA414DF-F Fieldbus Indicator is zero and the equivalent inductance is insignificant. Therefore these BA414DF-F parameters do not need to be considered. A1.3 Certification Label Information The certification label is fitted in a recess on the top outer surface of the enclosure.
-
Page 11: Appendix 2
For installations in the USA and Canada, a version system shown in Fig 1 of this manual may of the BA414DF-F is available with FM and CFM therefore be used for installations in the USA and intrinsic safety and nonincendive approval, project Canada, providing the fieldbus power supply, identifications 3027031 and 3027031C. -
Page 19: Appendix 3
IECEx Certificate of Conformity A3.4 Versions of the BA414DF-F The BA414DF-F Fieldbus Indicator has been All versions of the BA414DF-F Fieldbus Indicator issued with an IECEx Certificate of Conformity have IECEx certification. This includes: number IECEx ITS 06.0012X which specifies the following certification codes: ATEX version for use in gas atmospheres.
