- Page 1 Operating instructions Paris RCM 104...
-

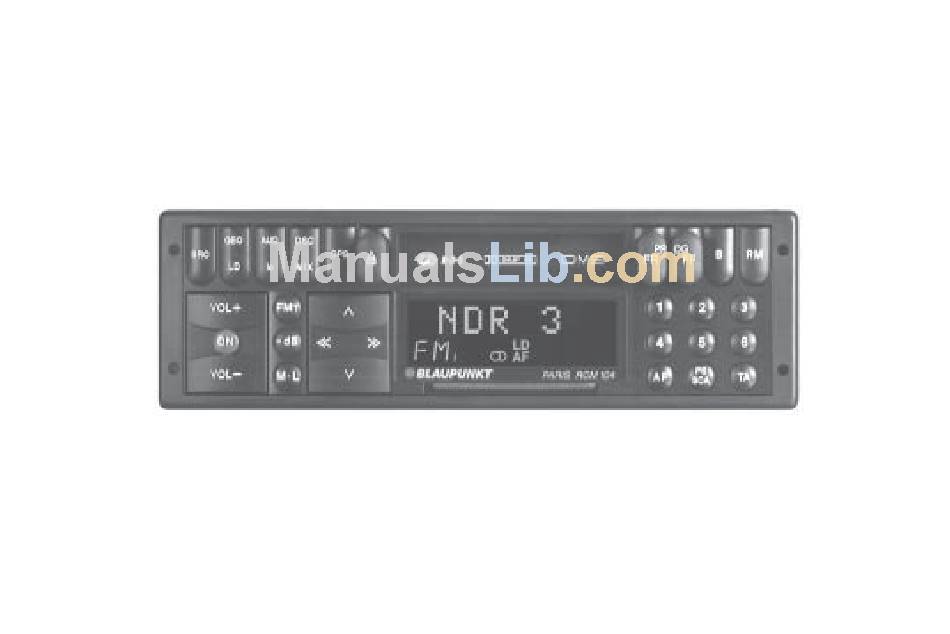

Page 2: Control Panel
18 17... -
Page 3: Table Of Contents
Contents Short description ... 21 Important notes ... 25 What you must know! ... 25 Traffic safety ... 25 Installation/connection ... 25 Optical indication of theft protection ... 25 KeyCard ... 25 Replacing a KeyCard ... 26 Radio operation with RDS (Radio Data System) ... -
Page 4: Short Description
Short description 1 Switching on: Press ON (the KeyCard has to be in- serted), the set plays with the pre-adju- sted volume. Switching off: Press ON for approximately 1 second. If the set was turned on by pressing ON, the KeyCard can be used for swit- ching the system on and off (KeyCard = passive anti-theft protection). -
Page 5: Rocker Switch
6 Rocker switch Station search down in short up in short intervals intervals (when AF is off) (when AF is off) down Extra functions: Track CD operation Press briefly: to select the title. Hold down: CUE/REVIEW << >> To select the disc. In the DSC mode Select function and... - Page 6 ; TA (Traffic Announcement) If “TA” lights up in the display, the sy- stem will only play traffic stations. To activate/deactivate the priority for traffic announcements: Press TA. < 1, 2, 3, 4, 5, 6 - preset buttons You can store 6 stations on each FM memory bank (I, II, and “T”) and another 6 stations on W and LW each.
- Page 7 E AUD To adjust the treble and bass frequen- cies using the rocker button. Treble Bass Bass Treble The last setting will be automatically stored. If the setting remains unchanged within 8 seconds, the display will show the previous status. F lo To change the seek tuning sensitivity lo lit up in the display indicates normal...
-
Page 8: Important Notes
Blaupunkt also offers designer KeyCards for an additional fee. You can find the service providers listed in the car radio service register ( ). In case of... -
Page 9: Replacing A Keycard
Replacing a KeyCard Any KeyCard can only be replaced by a new one with the same identification number (1 or 2). For example, to replace KeyCard 2, • insert KeyCard 1 into the set and turn it • Slightly push in the card so that it is released;... -
Page 10: Selecting The Waveband
Selecting the waveband With your car radio you can select between the following wavebands: FM 87.5 – 108 MHz MW 531 – 1602 kHz, and LW 153 – 279 kHz • Select the desired waveband by pres- sing the FM or M•L button. -
Page 11: Storing The Strongest Stations Automatically With Travelstore
Now the station is stored. The activated pre- set button is indicated in the display. Note: Should you tune into a station which has already been stored, the corresponding pre- set button and the memory bank will start flashing in the display for a short while, if you have selected another memory bank. -
Page 12: Reception Of Traffic Announcements With Rds-Eon
Reception of traffic announcements with RDS-EON Many FM broadcasters provide their service area with traffic messages at regular inter- vals. All traffic program stations transmit a special telegram signal in addition to the radio pro- gram, which is recognised and decoded by the car radio. -
Page 13: Tape Operation
Tape operation Inserting a tape • Turn on the set. • Insert a tape. Eject Insert cassette with side A or 1 facing up, the open side facing cassette to the right The tape will be played in the direction used last. -
Page 14: Dolby B-Nr
Dolby B-NR* With this set you can play cassettes recorded with or without Dolby-B noise reduction. Cassettes recorded with Dolby NR* distin- guish by their reduced background noise and the improved dynamic characteristics. To switch Dolby on/off: • press B. When Dolby is on, “B” is indi- cated on the display. -
Page 15: Dsc Programming
DSC programming This car radio offers direct software control (DSC), which allows you to adapt a number of default settings to your preference and to store these values. In the following you will find an overview of all the default settings adjusted at the factory. To change a programmed parameter, •... - Page 16 LOUDNESS When listening at a low level, the loudness function will create a more natural sound by emphasizing the low fre- quency range. LOUD 1 - low boost LOUD 6 - strong boost SCANTIME Use this function to specify the scan time in the radio mode).
-
Page 17: Cd Changer Control (Option)
CD changer control (option) This car radio makes it possible to remote control a Blaupunkt CD changer: CDC-A03, -F03, -A05. Switching the CD mode on using SRC of the car radio Be sure that a CD magazine is inserted in the changer. -
Page 18: Enter/Display Cd Names
Enter/display CD names You can allocate names for up to 99 CDs. When playing a CD, the display will then give you entered name, e.g. VIVALDI. Precondition: NAME must be set under DSC - CD DISP. Entering a name: Be sure that at least 1 CD is inserted in the CD magazine. -
Page 19: Appendix
Appendix Technical data Amplifier: Output power: 4 x 20 watts RMS acc. to DIN 45 324 4 x 25 watts music power acc. to DIN 45 324 0.9 µV at 26 dB FM sensitivity: S/N ratio Frequency response: 35 - 16,000 Hz (-3 dB) Cassette (metal) 30 - 16,000 Hz (-3 dB) Subject to modifications! - Page 20 1/95 Blaupunkt-Werke GmbH Bosch Gruppe K7/VKD 3 D94 147 007...
Need help?
Do you have a question about the PARIS RCM 104 and is the answer not in the manual?
Questions and answers
Boa noite. Tenho um rádio "Blaupunkt paris rcm 104" no meu Audi A4. O ecrâ está danificado e não consigo ler nada do que aparece no ecrâ. Comprei um adaptador de isqueiro para colocar música pelo telemóvel e conseguir utilizar o rádio mas estou com dificuldades a encontrar a frequência 87.5 pois não consigo ler o ecrâ. Como posso solucionar?
To set the frequency to 87.5 on a Blaupunkt PARIS RCM 104 radio with a damaged screen, follow these steps:
1. Select the FM waveband by pressing the FMT button.
2. Use the rocker switch (left/right) to change the frequency in small steps.
3. Hold down the rocker switch to speed up tuning.
4. Stop when you reach the lowest frequency (87.5 MHz). Since the screen is damaged, count steps or listen for audio cues to confirm the station.
This process requires careful manual tuning due to the lack of visual feedback.
