Summary of Contents for 4RF Aprisa LTE

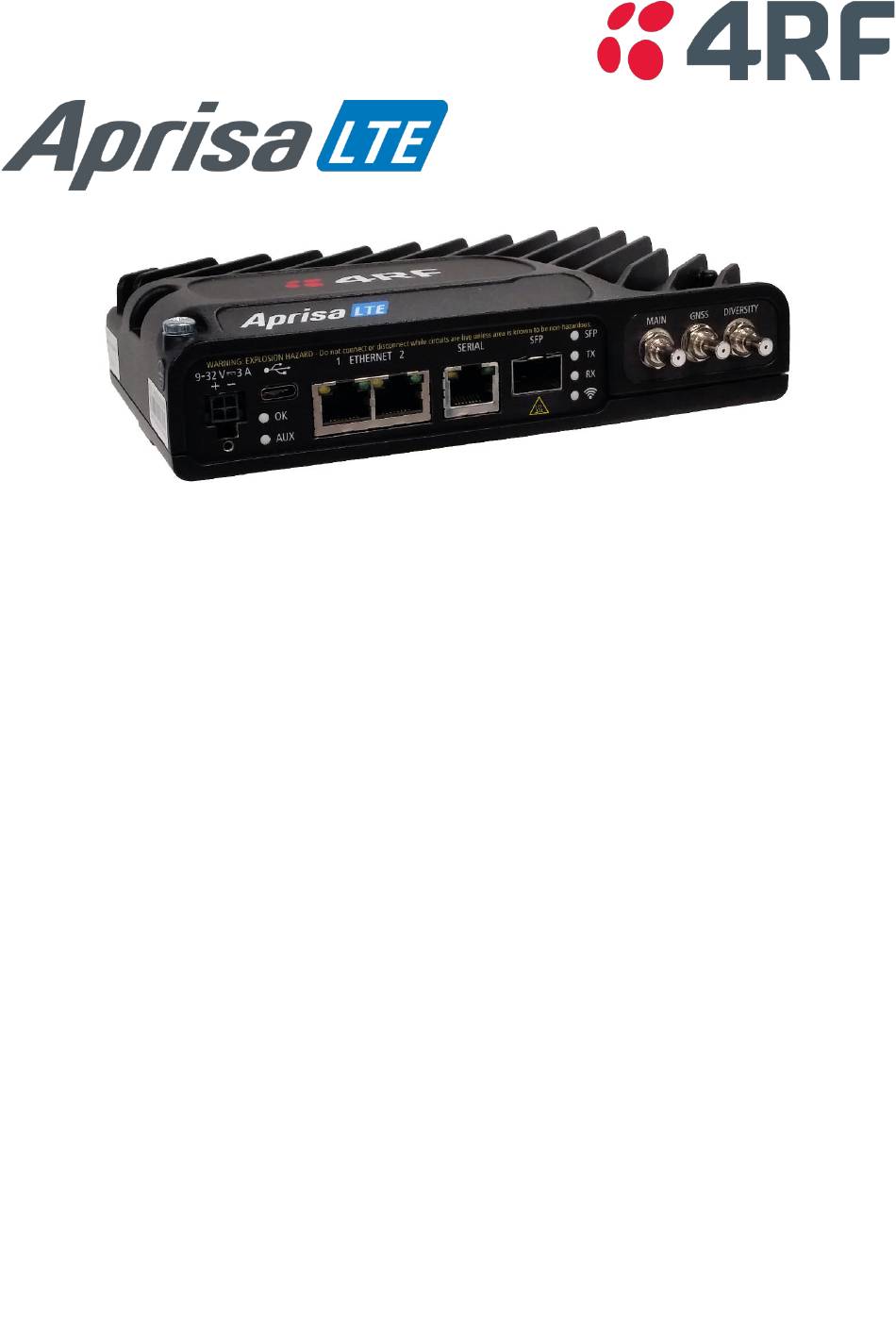

- Page 1 Quick Start Guide Aprisa LTE Cellular Router Contents Follow these steps to operate your Aprisa LTE cellular router: Check the box contents Install the Aprisa LTE and connect the protection earth Set up and apply power to the Aprisa LTE...
- Page 2 Page 2 Aprisa LTE Quick Start Guide 1.0.0 © 2020 4RF Limited. All rights reserved. This document is protected by copyright belonging to 4RF Limited and may not be reproduced or republished in whole or part in any form without the prior written permission of 4RF Limited.
- Page 3 One power connector locking plate and screw (secures the power connector to the LTE) 2. Install the Aprisa LTE and connect the protection earth The Aprisa LTE has four threaded holes (M4) in the base and two holes (for M5 screws) through the enclosure for mounting. Mounting options include: •...
- Page 4 Attach either separate antennas for LTE, GNSS and Wi-Fi or a single combo antenna to the appropriate QMA connectors on the Aprisa LTE. The Aprisa LTE is operated from a DC source of voltage between +9 VDC and +32 VDC (negative earth) and consumes up to 15 Watts. External power supplies are available from 4RF as accessories (see the Aprisa LTE User Manual).
- Page 5 Page 5 4. Connect to the Aprisa LTE The Aprisa LTE has a factory default IP address of 192.168.4.1 with a subnet mask of 255.255.255.0. • Setup your PC for a compatible IP address e.g. 192.168.4.100 with a subnet mask of 255.255.255.0 •...
- Page 6 Page 6 5. Configure the Aprisa LTE Verify that the Aprisa LTE active software and LTE module are correct for the provider. Go to SuperVisor > Cellular > Summary to view the currently supported bands. Go to SuperVisor > Cellular > General to view the SIM status.
- Page 7 Test DNS connectivity by pinging a well know DNS address e.g. 4rf.com • Try browsing the internet from the configuration PC For more information, please refer to the ‘Aprisa LTE User Manual’ available from the 4RF website www.4rf.com/secure/ (login required).
