Summary of Contents for Red Sea ReefWave 25

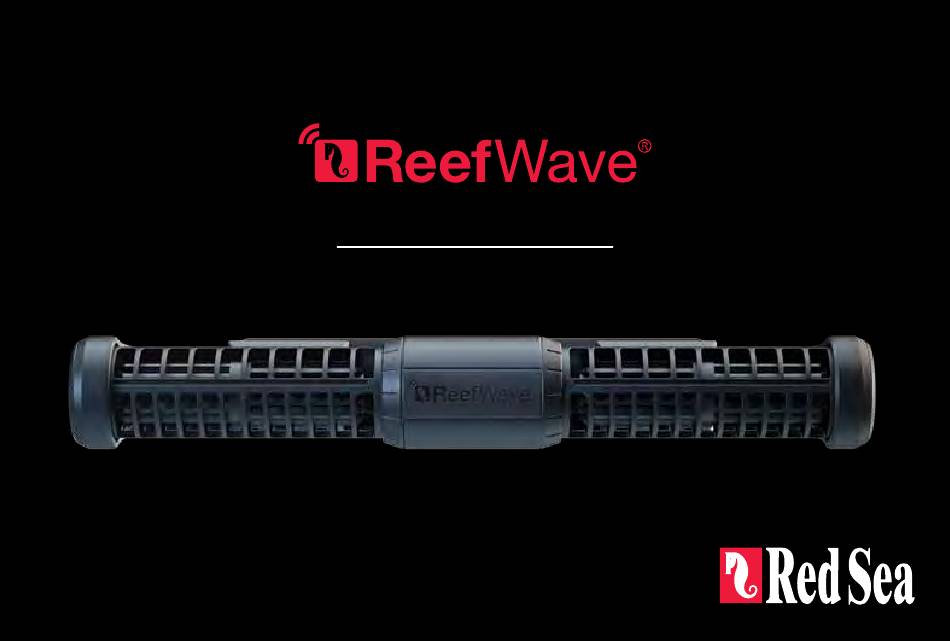

  • Page 1 User Manual...
  • Page 3 Silent - Smart - Powerful User Manual...

  • Page 4: Table Of Contents

    Red Sea ReefWave ® Contents Introduction................5 Safety ...................6 ReefBeat app................7 ReefWave control options...........8 Installation.................10 ReefWave Controller............12 Using ReefWave without ReefBeat........13 ReefWave with ReefBeat - Setting up......13 Settings................16 Operation with ReefBeat..........18 Device Manager..............18 Maintenance..............21 Troubleshooting..............22 Spare Parts list..............24 Warranty................26...

  • Page 5: Introduction

    Consumption wave pump. 23cm (9") L x 7cm 31.5cm (12.4") L x 8cm ReefWave is part of Red Sea’s suite of smart devices that can be Dimension (2.8") W x 4cm (1.6") H (3.2") W x 5cm (2") H operated via Wi-Fi by Red Sea’s ReefBeat app which needs to be ®...

  • Page 6: Safety

    Red Sea ReefWave ® Safety PLEASE READ AND FOLLOW ALL SAFETY INSTRUCTIONS Close supervision is necessary when any appliance is used by or near children. THIS DEVICE IS INTENDED FOR INDOOR USE ONLY. To avoid injury, do not contact moving parts.

  • Page 7: Reefbeat App

    Red Sea website at www.redseafish.com on our website. If this is your first Red Sea connected device, it is recommended that Through your personal user account on the cloud, ReefBeat enables you complete the physical installation of your ReefWave units before you to set up and manage any number of aquariums and add multiple installing the ReefBeat app.

  • Page 8: Reefwave Control Options

    Red Sea ReefWave ® Local Controller Functions Regular Flow ReefBeat Mode Pump provides a constant flow of water at the intensity you set in In the event that a ReefWave controller has been programmed forward or reverse direction. by ReefBeat, selecting this mode will implement the last known 24-hour wave schedule even when not connected to the ReefBeat App.
  • Page 9 Red Sea ReefWave ® ReefBeat Connected Functions ReefBeat Schedule Surface Wave User defined 24 hour schedule of up to 10 time slots per day. Each Pump pulses at a user definable uniform pulse rate set in 1/10 of time slot will implement a user defined wave in the forward, reverse a second to create a standing wave pattern on the water surface.

  • Page 10: Installation

    Red Sea ReefWave ® Installation Pump WARNING: Running the pumps outside of the water will damage the bearings and impellor shaft causing noisy operation and a The ReefWave pumps can be mounted in the horizontal or vertical shortened life for these wear parts! orientation.
  • Page 11 Red Sea ReefWave ® Power Supply The internal magnets are a north/south pair (look for the N/S markings) and work together with the external magnet that has a north and south Place the power supply in a dry ventilated area. Only use the power end.

  • Page 12: Reefwave Controller

    Red Sea ReefWave ® ReefWave Controller Power Indicator LED Flow Intensity Flow direction dial (10-100%) indicator LEDs Red light when DC power is available. Wi-Fi Settings Button and Status LED If indicator LED is off (ReefWave Wi-Fi is off): Pressing button for 5 seconds (until double blink) activates Wi-Fi AP mode.

  • Page 13: Using Reefwave Without Reefbeat

    Red Sea ReefWave ® Connection and initial setup with ReefBeat Flow Intensity Dial To change the flow intensity for a Controller Mode wave, press and hold In the event that you do not have an available Wi-Fi network you will not the center of the dial until the intensity indication LEDs start to blink.
  • Page 14 Tap the Add Device button (+) from the Device Manager page, select and 60% reverse. At this stage you can either accept these default the ReefWave 25/45 icon and follow the instructions on the app. If no settings or customize them however we recommend that you only...
  • Page 15 Up to 3 ReefWave units can “Grouped” together and share a common 3-dot menu of the homepage. Schedule and customized waves however the forward and reverse flow intensities need to be set for each pump individually. ReefWave 25 and ReefWave 45 can belong to the same group.

  • Page 16: Settings

    Red Sea ReefWave ® ReefWave Dashboard - Settings ReefWave is designed to operate automatically according to a 24-hour Current Wave Settings schedule that defines up to 10 time-slots allowing different wave types Tapping on the current wave card opens the wave settings page with all or intensities during a day.
  • Page 17 Red Sea ReefWave ® Forward Intensity selected to be applied directly as the current wave in the 24-hour schedule. The Wave Library can be accessed from the 3-dot page menu Pump flow intensity from 10% to 100% in forward direction.

  • Page 18: Operation With Reefbeat

    ReefBeat homepage and the ReefWave Dashboard, and contains a will all work together with a common schedule but with their individual list of all of the Red Sea connected devices that are installed on each flow intensities. aquarium. The devices are listed according to type and in the order in which they were added to the aquarium.
  • Page 19 Red Sea ReefWave ® Firmware Updates prevent ReefBeat from giving you notifications that communication with the unit has been lost. When returning the unit and/or switching it back From time to time you may receive a notification that a new firmware on, remember to return its status to “In-service”.
  • Page 20 A “No communication” message could be due to a power or internet outage, router failure or a fault with a specific connected device. If you have more than one Red Sea connected device and connection to one or more (but not all) devices are lost, you will receive a “Partial communication”...

  • Page 21: Maintenance

    Red Sea ReefWave ® Maintenance For continued, quiet and trouble-free running of the ReefWave, we Inspect the silicone and plastic parts that connect the impellors to the recommended a regular maintenance routine for the pump. motor. These are wear-parts and may need to be replaced occasionally.

  • Page 22: Troubleshooting

    Red Sea ReefWave ® Troubleshooting A full and up to date FAQ for the ReefWave and the ReefBeat app is Don’t soak the parts in the diluted vinegar solution for more than a available in the app ( ) and on our Homepage Main Menu >...
  • Page 23 Red Sea ReefWave ® • Your router may be configured not to allow devices like the Q. I have connected the ReefWave to the ReefBeat or I am working in controller mode and the intensity LEDs on the controller are ReefWave to be connected.

  • Page 24: Spare Parts List

    Red Sea ReefWave ® Spare Parts list Part Description RW25 RW45 Pump Assembly R35228 R35229 Controller R35230 R35241 Power Supply R35231 R35242 Motor assembly R35232 R35243 Rotor (shaft/magnet) R35233 R35244 Impeller set R35234 R35245 Impeller Cage set R35235 R35246 Mounting Bracket...
  • Page 25 Red Sea ReefWave ® Part Description RW25 RW45 Internal magnet set R35237 R35248 External magnet R35238 R35249 End Caps R35239 R35250 Snail Guards (4 units) R35240 R35251 Controller Mounting Bracket R35252 RW 25/45 Pump Extension cable R35253 2m/79" RW Pump Service Pack...

  • Page 26: Warranty

    ® Certificate of Warranty Thank you for purchasing a Red Sea aquarium product (hereunder “the The sole and exclusive remedy against Red Sea shall be for the repair product”). or replacement of the product, as provided above. NO OTHER REMEDY (including but not limited to, incidental or consequential damages for RED SEA AQUATICS (UK) Ltd.
  • Page 27 (2) this device must accept any interference received including interference that may cause undesired operation. Any changes or modifications not expressly approved by Red Sea could void the user’s authority to operate the RF Module and/or the product that incorporates the RF Module.
  • Page 28 Red Sea U.S.A Red Sea Europe UK & Ireland Germany & Austria China ドシー事業部 Red Sea Aquatics (UK) Ltd Red Sea Deutschland Red Sea Aquatics (GZ) Ltd 4687 World Houston Parkway 655 Rue des Frères 〒174-0063 Block A3, No.33 Hongmian Road, #150 Houston, Lumière 27130 Verneuil...
