Red Sea MAX 130D Installation Instructions

Installation Instructions

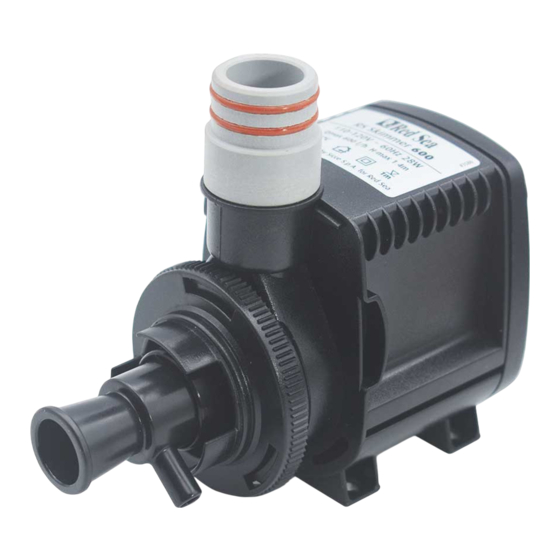

MAX 130D Upgrade Circulation Pump
®
1

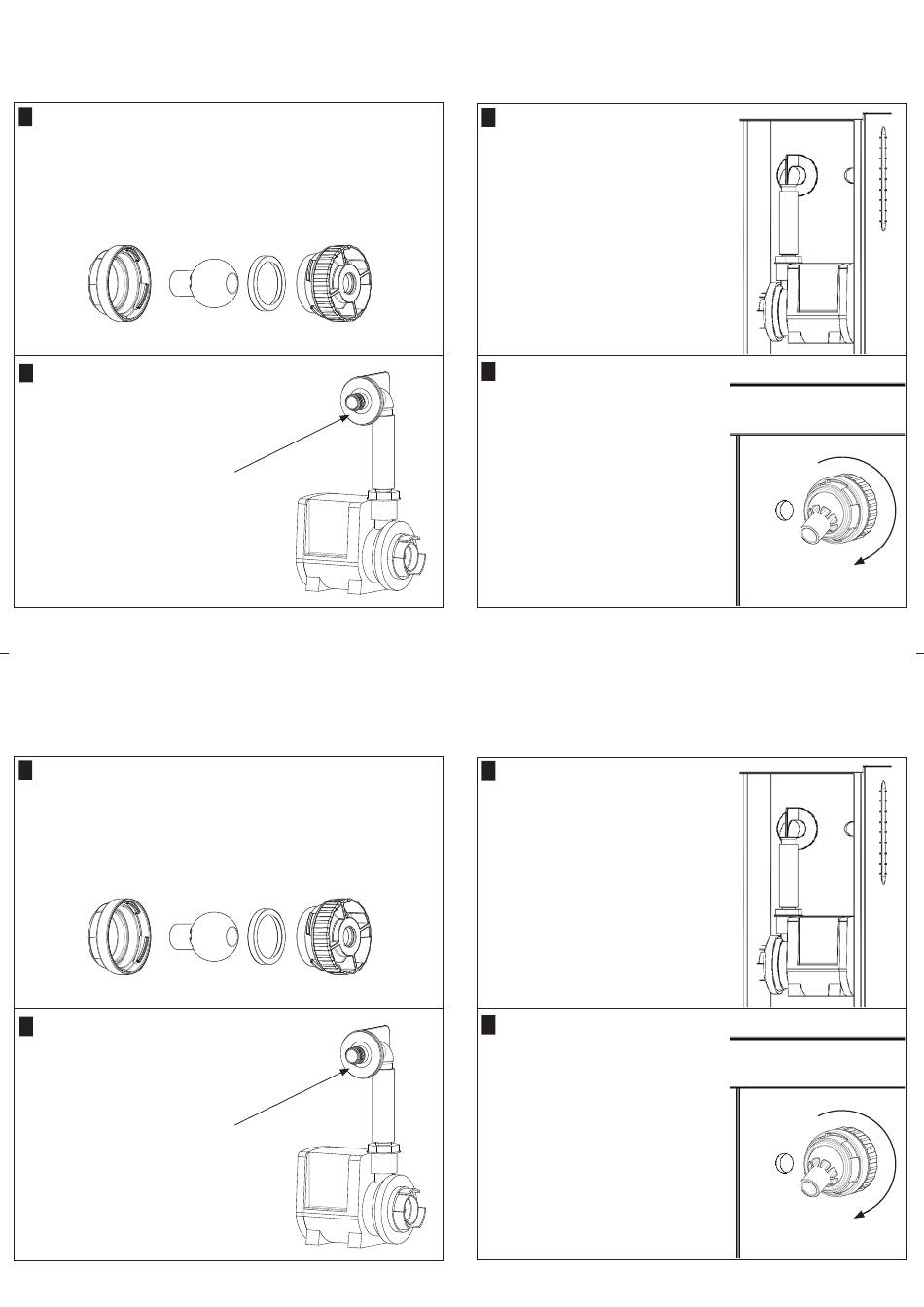

Familiarize yourself with the multidirectional outlet by disassembling
and reassembling it a few times.
When dry the nozzle does not rotate freely in the socket. Once
assembled in the aquarium it will move as required and will remain in
the desired position.
2
Assemble the Pipe set to the pump so
that the threaded connector for the outlet
nozzle is perpendicular to the pump as
shown in the drawing.
Ensure that the rubber washer is in place
on the connector.
Check that the pump is assembled correctly
and that the pump and power cable are
not damaged.
Installation Instructions
MAX 130D Upgrade Circulation Pump
®
1
Familiarize yourself with the multidirectional outlet by disassembling
and reassembling it a few times.
When dry the nozzle does not rotate freely in the socket. Once
assembled in the aquarium it will move as required and will remain in
the desired position.
2
Assemble the Pipe set to the pump so
that the threaded connector for the outlet
nozzle is perpendicular to the pump as
shown in the drawing.
Ensure that the rubber washer is in place
on the connector.
Check that the pump is assembled correctly
and that the pump and power cable are
not damaged.
3
Insert the pump into the pump chamber
so that the threaded connector goes
through the hole on the right when
viewed from the front.
(picture shows view from the rear)
4
Screw the outlet onto the threaded
connector and tighten against the
glass. Initially adjust the nozzle to the
downward position.
3
Insert the pump into the pump chamber
so that the threaded connector goes
through the hole on the right when
viewed from the front.
(picture shows view from the rear)
4
Screw the outlet onto the threaded
connector and tighten against the
glass. Initially adjust the nozzle to the
downward position.
