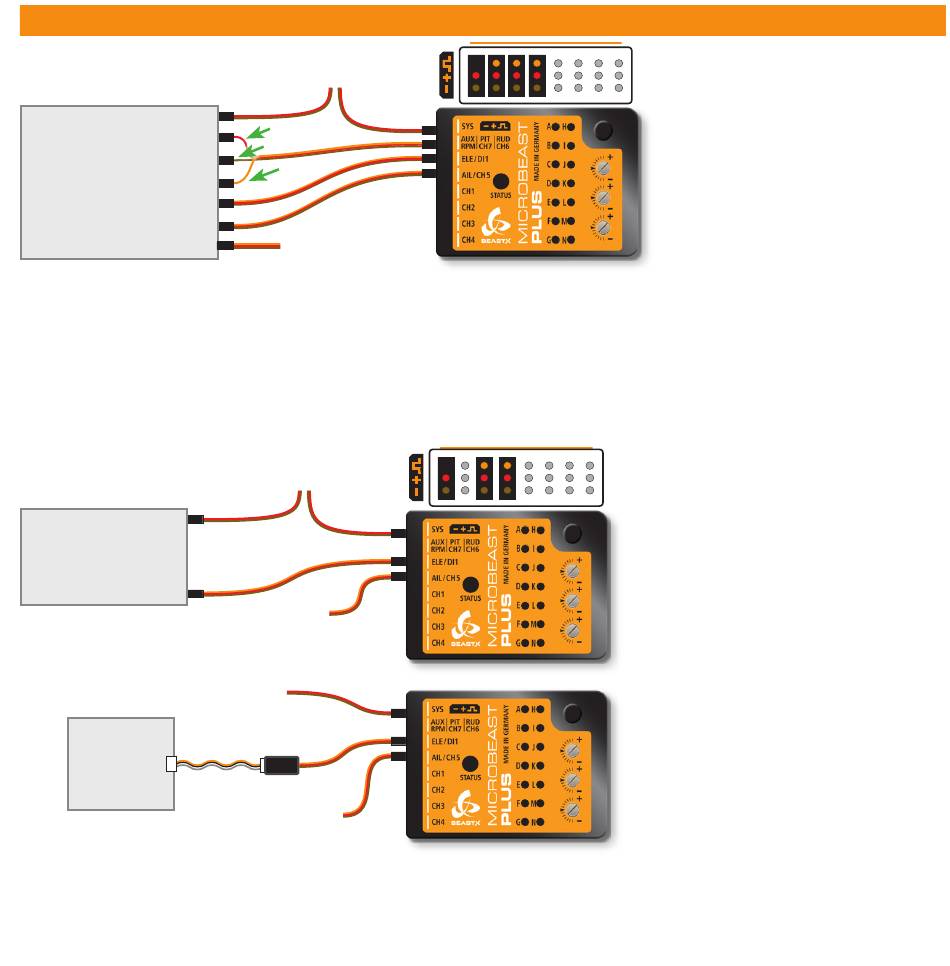

2. CONNECTING THE RECEIVER

BAT
Pitch
Gyro
STANDARD
Rudder
RECEIVER
Elevator
Aileron
Throttle
The assignment of functions to the radio channels is mentioned in the manual of your radio system. Also you may find out the
function assignment by checking your transmitter's servo monitor. The connectors of MICROBEAST PLUS are assigned to the
functions as follows:
AIL|CH5 = Aileron, ELE|DI1 = Elevator, RUD (orange wire) = Rudder, PIT (red wire) = Thrust, Aux (brown wire) = Gyro gain
The wires for aileron and elevator additionally transfer the power between MICROBEAST PLUS and receiver.
Using a Single-Line receiver all channels/functions are transferred by one single connection wire. This allows to use even more
than 5 channels, i. e. for controlling the nitro RPM Governor, AttitudeControl function and/or additional servo output channels.
BAT
SINGLE-LINE
RECEIVER
Signal
BEC/Receiver battery (if required)
or Spektrum
JR® or
Spektrum®
remote
satellite
Always make sure the power supply is stable and dimensioned sufficiently for the intended application. If possible always
connect the power source directly to MICROBEAST PLUS. Especially when using standard size servos it is recommended to
use more than one power supply cable in parallel to preserve a stable voltage and to reduce power loss due to connection
resistance. The additional supply cables may be connected to free receiver ports. We recommend to use MICROBEAST PLUS HD
which offers a low resistant high-power input and which is well suited for larger model helicopters.
BEC/Receiver battery
(if required)
red
brown
orange
Throttle servo/ESC
BEC/Receiver battery
(if required)
Throttle servo/ESC
®
bind plug
Satellite adapter
(BXA76009)
Throttle servo/ESC
The illustrations are only
intended as examples! The
function assignment of the
transmitter determines which
channel on the receiver controls
which function.
Supported receivers/transmission
protocols:
• SRXL: JR® XBus (Mode B), Multiplex®
SRXL (V1+V2), Jeti® UDI, Graupner/SJ®
HOTT SUMD, Spektrum® SRXL
• Futaba® SBUS
• Spektrum® remote satellite (DSM2/
DSMX)
• JR DMSS remote satellite (JR RJ01)
• PPM serial signal (SPPM)
Using a single remote satellite is only
recommended for 450 size helis or
smaller! For larger helis you may use a
SRXL compatible Single-Line receiver.
