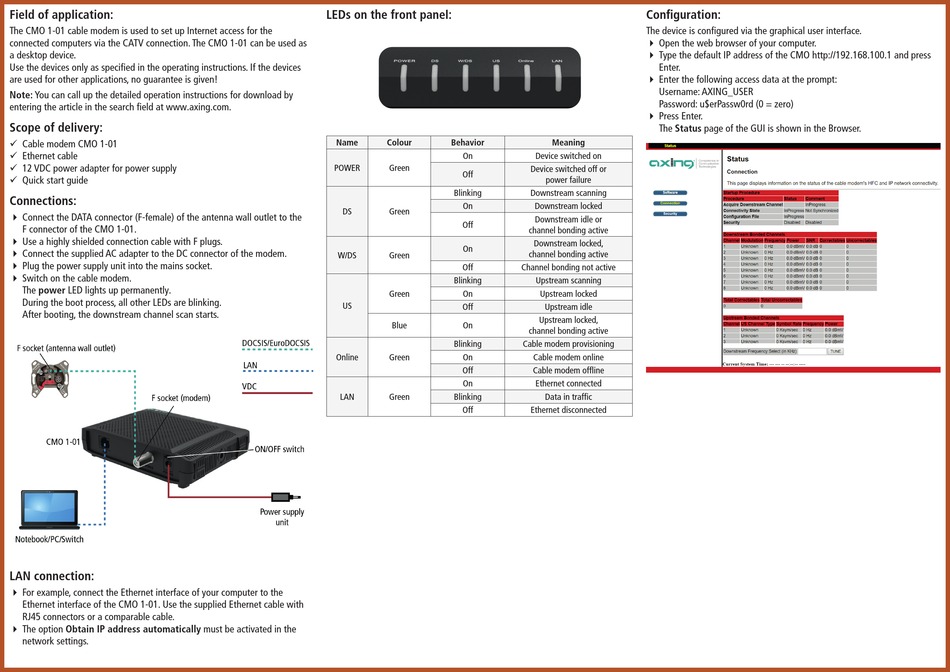

Field Of Application; Scope Of Delivery; Connections; Lan Connection - axing premium-line CMO 1-01 Quick Start Manual

Field of application:

The CMO 1-01 cable modem is used to set up Internet access for the
connected computers via the CATV connection. The CMO 1-01 can be used as
a desktop device.
Use the devices only as specified in the operating instructions. If the devices
are used for other applications, no guarantee is given!
Note: You can call up the detailed operation instructions for download by
entering the article in the search field at www.axing.com.

Scope of delivery:

9 Cable modem CMO 1-01
9 Ethernet cable
9 12 VDC power adapter for power supply
9 Quick start guide

Connections:

 Connect the DATA connector (F-female) of the antenna wall outlet to the
F connector of the CMO 1-01.
 Use a highly shielded connection cable with F plugs.
 Connect the supplied AC adapter to the DC connector of the modem.
 Plug the power supply unit into the mains socket.
 Switch on the cable modem.
The power LED lights up permanently.
During the boot process, all other LEDs are blinking.
After booting, the downstream channel scan starts.

LAN connection:

 For example, connect the Ethernet interface of your computer to the
Ethernet interface of the CMO 1-01. Use the supplied Ethernet cable with
RJ45 connectors or a comparable cable.
 The option Obtain IP address automatically must be activated in the
network settings.

LEDs on the front panel:

Name Colour Behavior
On
POWER Green
Off
Blinking
On
DS Green
Off
On
W/DS Green
Off
Blinking
Green On
US
Off
Blue On
Blinking
Online Green On
Off
On
LAN Green Blinking
Off

Configuration:

The device is configured via the graphical user interface.
 Open the web browser of your computer.
 Type the default IP address of the CMO http://192.168.100.1 and press
Enter.
 Enter the following access data at the prompt:
Username: AXING_USER
Password: u$erPassw0rd (0 = zero)
 Press Enter.
The Status page of the GUI is shown in the Browser.
Meaning
Device switched on
Device switched off or
power failure
Downstream scanning
Downstream locked
Downstream idle or
channel bonding active
Downstream locked,
channel bonding active
Channel bonding not active
Upstream scanning
Upstream locked
Upstream idle
Upstream locked,
channel bonding active
Cable modem provisioning
Cable modem online
Cable modem offline
Ethernet connected
Data in traffic
Ethernet disconnected
