Robotical MARTY the ROBOT Build Manual
Hide thumbs
Also See for MARTY the ROBOT:
- Build manual (20 pages) ,
- Build instructions (16 pages) ,
- Build manual (22 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Robotical MARTY the ROBOT
Summary of Contents for Robotical MARTY the ROBOT

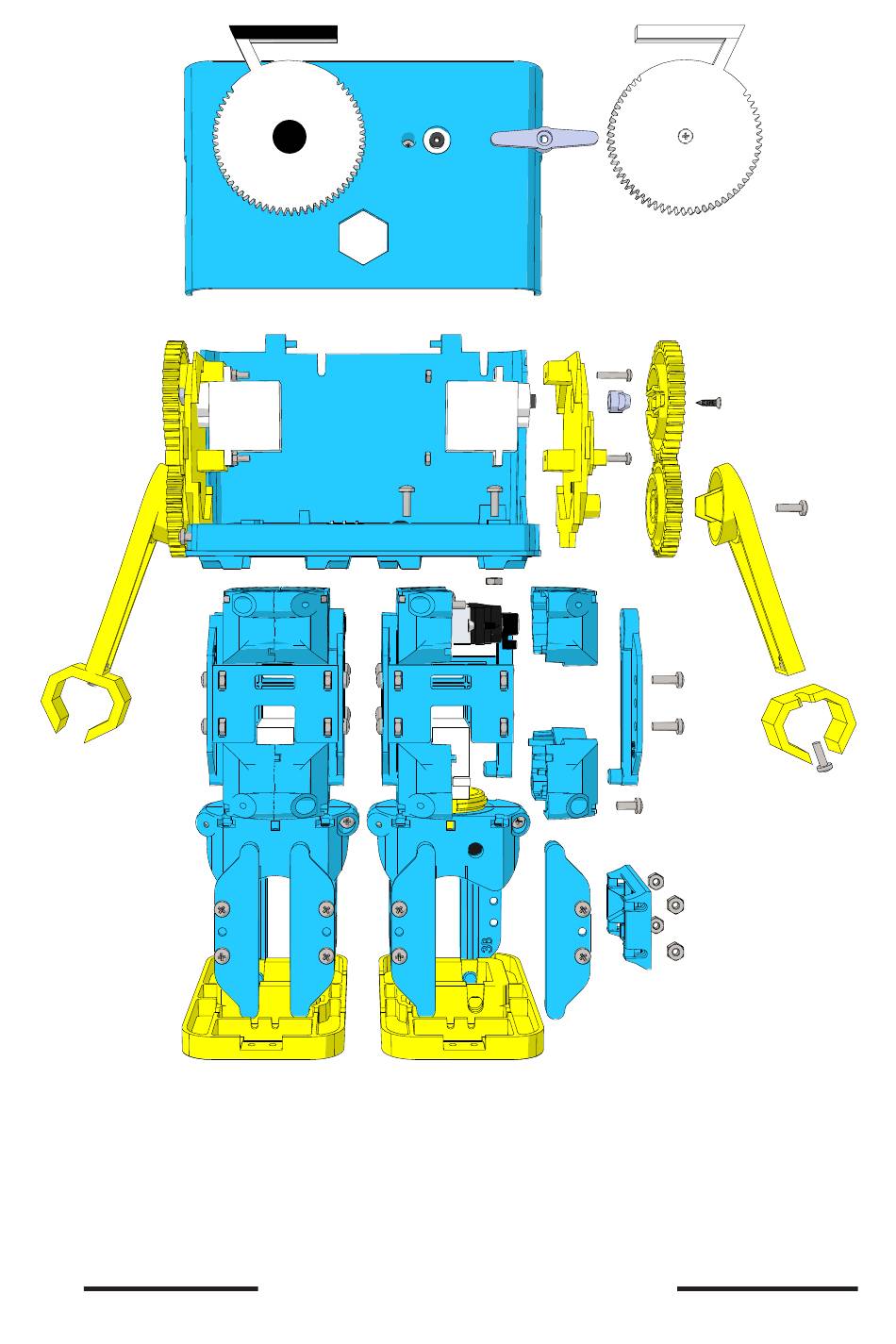

- Page 1 MARTY the ROBOT Build Guide...
- Page 2 Not trap or squish the cables. • Get help from an adult if your under 14. M2.5 Nut (2.5mm) • Have fun! Top Tip: Go to robotical.io/getstarted for M2 Nut (2mm) detailed written instructions. Servo Horn Screw Twist 90˚ Build 2...
- Page 3 M2.5 Bolt Be careful not to trap cables...
- Page 4 x 16 x 16 M2.5 Nut M2.5 Bolt...
- Page 5 Leg Two Leg One Rotate foot 180° from Leg One to Leg Two Rotate view 180° Leg One Leg Two from Step 10...
- Page 6 M2 Nut Servo Horn M2 Bolt Screw Position Arm straight down M2.5 Nut M2.5 Bolt...
- Page 7 Push onto thread and finger tighten M2.5 Nut M2.5 Bolt...
- Page 8 M2.5 Nut M2.5 Bolt M2 Nut Eyebrows and servo horn should be parallel to the top of the head M2 Bolt Servo Horn Screw...
- Page 9 Have you got all your assemblies? Check that you have assembled all 6 parts of Marty. You should have: If in doubt, go to robotical.io/getstarted for detailed written instructions and support.
- Page 10 Check your leg assembly Check that you have assembled both of Marty’s legs correctly and they resemble the image below. Servo cables coming out the top Hip Servos facing same direction No servo cables visible No servo horn visible Foot notches and springs in the middle Front...
- Page 11 Back Front M2.5 Nut M2.5 Bolt Legs must be the correct way round. Double check this using the page to the left and graphics above.
- Page 12 x 1 Sticker Sheet Attach the head and servo stickers: attach the numbered stickers to the black servo connectors and clip the two head parts together. Eye (8) Right Arm (7) Left Arm (6) Right Knee (5) Left Knee (2) Right Leg Twist (4) Left Leg...
- Page 13 Plug in the Servos: pay attention to the orientation and colour of the cables. White = Top Red = Middle Black = Bottom Orange = Top Red = Middle Brown = Bottom 0 = LEFT HIP 3 = RIGHT HIP 6 = LEFT ARM 4 = RIGHT LEG TWIST 1 = LEFT LEG TWIST...
- Page 14 Attach the Battery, ON/OFF Cable and Power Cable: read the Saftey Warnings on the back of your Parts Guide. WIFI Activity - Blue Status - Orange Power (ON) - White Charging - Blue...
- Page 15 Check the image below - make sure you have all the cables connected and in the correct place. Place battery securely behind the control board Optional - Tidy Marty’s cables: using the cable ties provided in your Marty kit, strap the cables down to the base of Marty’s head.
- Page 16 Lock Marty’s head: using two nuts and bolts, lock Marty’s head to keep all the electronics secure. M2.5 Bolt x 1 Sticker Sheet Personalise your Marty!
-
Page 17: Next Steps
Next steps! You have now finished building your Marty! To get your Marty up and running go to: robotical.io/setupmarty Great job! - Page 18 play Marty Football Remove the lid insert from your Marty packaging and try to score a goal. You can even introduce a second Marty and play against each other! Connect a Raspberry Pi - optional Raspberry Pi is not included in a standard Marty Kit Rick (Marty’s Brain)
- Page 19 Marty Use and interact with Marty on multiple platforms, with several different programming languages. Go to robotical.io/getstarted for support on the following: The simplest way to begin programming Scratch your Marty. Combine blocks to build a program to get your Marty up and about.
- Page 20 For further help see: robotical.io/gettingstarted robotical.io/support “Robotical” and “Marty the Robot” are Trademarks (™) of Robotical Ltd. The Robotical Mark is a registered trade mark (®) of Robotical Ltd. 171026 - P00011048...
