MARTY the ROBOT
Build Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the MARTY THE ROBOT and is the answer not in the manual?

Questions and answers

Related Manuals for Robotical MARTY THE ROBOT

Summary of Contents for Robotical MARTY THE ROBOT

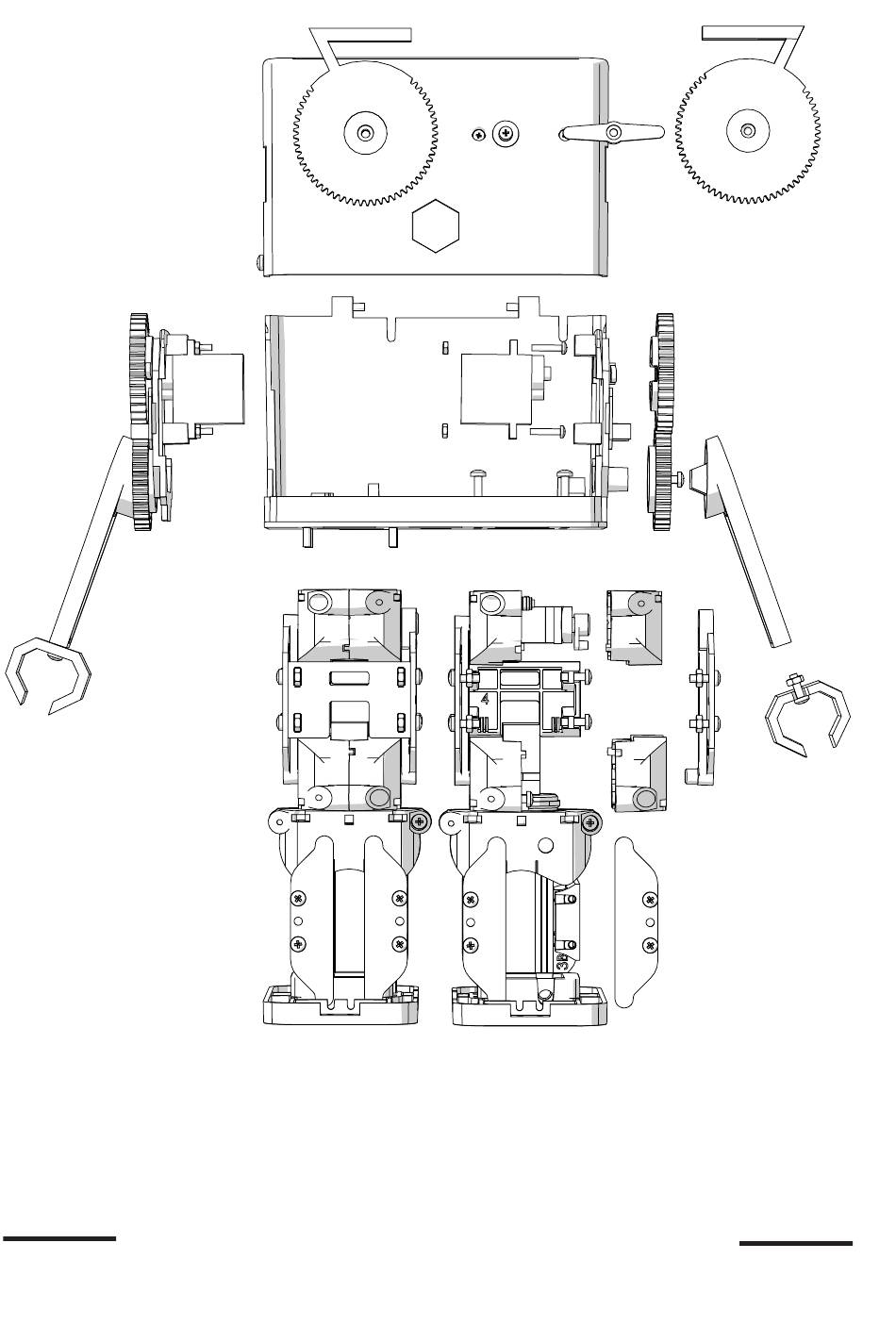

  • Page 1 MARTY the ROBOT Build Instructions...

  • Page 2: Getting Started

    Getting Started Please go to robotical.io/gettingstarted to find digital tools to help you get started with your Marty build. Note that bolts are 2.5 x 8mm unless otherwise indicated Build 1 - HEAD...
  • Page 3 Top Tip: For further detail on eye placement go to: robotical. io/gettingstarted for access to the detailed build guide Servo Horn Screw Bolt (2.5x8mm) Bolt (2x10mm)
  • Page 4 Build 2 - LEG (Right) Knee Servo Leg Twist Servo...
  • Page 6 (Complete this step twice) Important for Build 3...
  • Page 8 Hip Servo (Complete this step twice)
  • Page 9 Build 3 - LEG (Left) For left leg, please follow the instructions from Build 2 Rotating the foot 180 degrees at step 2h as seen below.
  • Page 10 Build 4 - ARMS (Complete this step twice) Bolt (2x10mm) Top Tip: Do not over tighten the 2.5x8mm arm bolt in step 4b. This will make the arm stiff! Bolt (2.5x8mm) Servo Horn Screw...
  • Page 11 Build 5 - ATTACH TOGETHER Top Tip: Make sure that the foot tabs (seen to the left) are facing inward and the duel Leg Links are facing forward...
  • Page 12 Build 6 - ELECTRONICS Attach the head and plug in the servos: Attach the servo numbering stickers provided with your Marty kit to the black servo connectors. Eye (8) Right Arm (3) Left Arm (6) Right Knee (5) Left Knee (2) Right Leg Twist (4) Left Leg...
  • Page 13 Top Tip: Remove the arms for easier access to the electronics and attaching the servos Plug in the Servos: pay attention to the White = Top orientation and colour of the cables Red = Middle Black = Bottom Orange = Top Red = Middle Brown = Bottom 0 = LEFT HIP...
  • Page 14 Attaching the Battery, Power Switch and Charging Port Board LEDs WIFI - Blue Power (ON) - White Status - Bat + Charging - Blue Bat - Bat - Bat + Chg + Chg -...
  • Page 15 Optional - Connect a Raspberry Pi! Rick (Marty’s Brain) Raspberry Pi (Raspberry Pi not included) Optional - Bump Switches Bump switches are optional extras included within your Marty kit. They can be used for advanced customisation. Happy Hacking!
  • Page 16 Next steps & Coding Marty robotical.io/gettingstarted Go to for help in getting started with coding and to find more detailed build instructions. Great job! For further help see: robotical.io/gettingstarted robotical.io/support ‘Robotical’ , ‘Marty The Robot’ and associated logos are trademarks of Robotical Ltd. 2017-06-20...
