MARTY the ROBOT
Build Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the Marty the Robot and is the answer not in the manual?

Questions and answers

Related Manuals for Robotical Marty the Robot

Summary of Contents for Robotical Marty the Robot

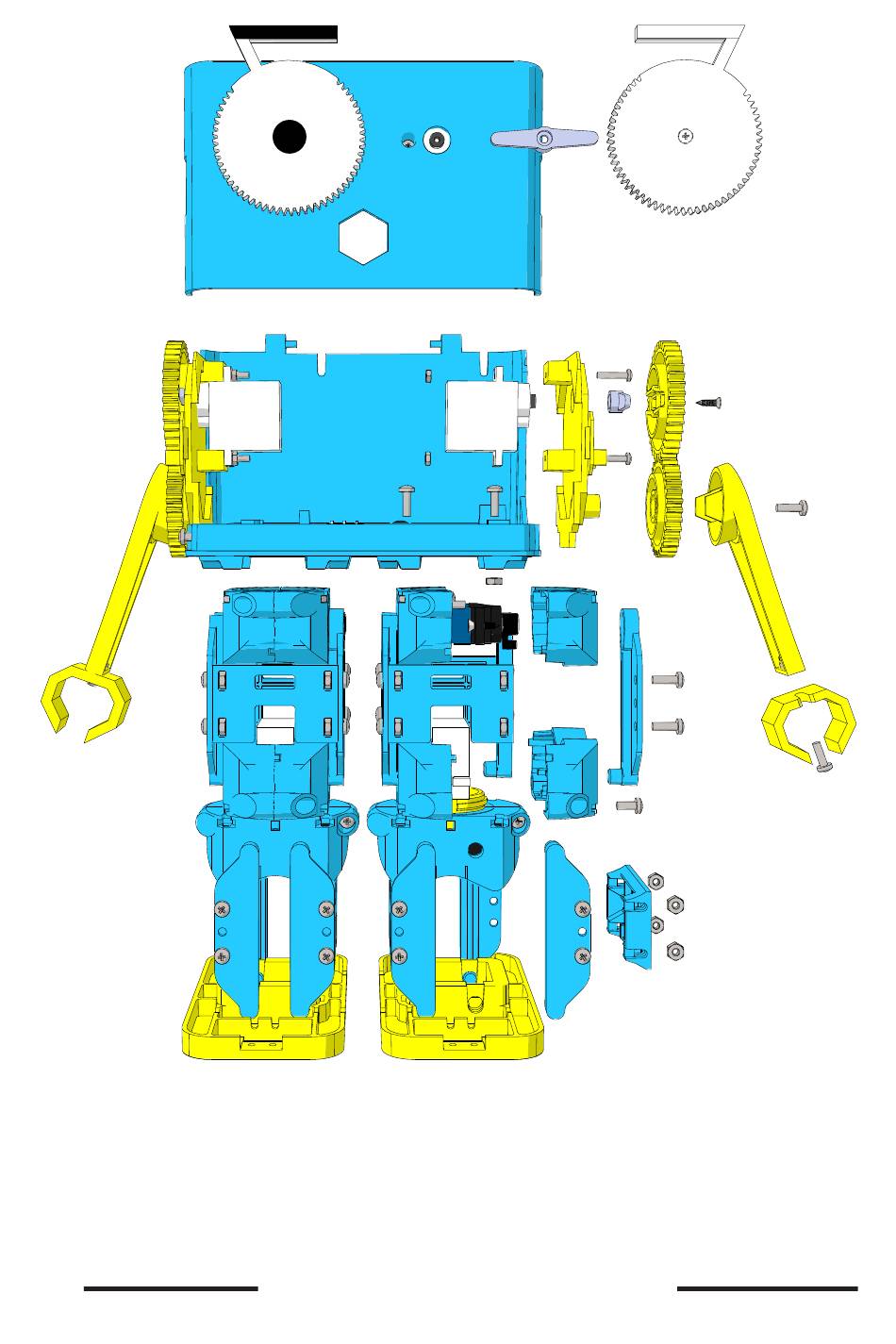

  • Page 1 MARTY the ROBOT Build Guide...
  • Page 2 Marty the robot - Build Guide This guide will help you put your Marty the Robot together. Top Tips M2.5 Bolt (2.5x8mm) • Get help from an adult if you’re under 14. Size Guide • Check you have all the parts.
  • Page 3 Do not trap cables...
  • Page 4 x 16 x 16...
  • Page 5 Leg One Leg Two Rotate foot 180° from Leg One to Leg Two Rotate legs 180° Leg Two Leg One from Step 10...
  • Page 6 Check your leg assembly Check that you have assembled both of Marty’s legs correctly and they resemble the image below. Servo cables coming out the top Hip Servos facing same direction No servo cables visible No servo horn visible Foot notches and springs in the middle Front...
  • Page 7 Position gears as illustrated DO NOT twist into position...
  • Page 8 Push onto thread and finger tighten...
  • Page 9 Eyebrows and servo horn should be parallel to the top of the head...
  • Page 10 Have you got all your assemblies? Check that you have assembled all 6 parts of Marty. You should have: If in doubt, go to robotical.io/getstarted for extra help including videos & support.
  • Page 11 Back Front Legs must be the correct way round. Double check this using the graphics above.
  • Page 12 x 1 Sticker Sheet Attach the head and servo stickers: attach the numbered stickers to the black servo connectors and clip the two head parts together. Eye (8) Right Arm (7) Left Arm (6) Right Knee (5) Left Knee (2) Right Leg Left Leg Twist (4)
  • Page 13 Plug in the servo motors: pay attention to the orientation of the cables. Orange = Top Red = Middle Brown = Bottom 0 = LEFT HIP 3 = RIGHT HIP 6 = LEFT ARM 1 = LEFT LEG TWIST 4 = RIGHT LEG TWIST 7 = RIGHT ARM 2 = LEFT KNEE 5 = RIGHT KNEE...
  • Page 14 Connect the Battery, ON/OFF Cable and Power Cable: read the Safety Warnings on the back of your Parts Guide. WIFI status - Blue Activity - Orange Power (ON) - White Charging - Blue...
  • Page 15 Check the image below - make sure you have all the cables connected and in the correct place. Place battery securely behind the control board Optional - Tidy Marty’s cables: using the cable ties provided in your Marty kit, strap the cables down to the base of Marty’s head.
  • Page 16 Lock Marty’s head: using two nuts and bolts, lock Marty’s head to keep all the electronics secure. x 1 Sticker Sheet Personalise your Marty!
  • Page 17 Great job!
  • Page 18 play Marty Football Remove the lid insert from your Marty packaging and try to score a goal. You can even introduce a second Marty and play against each other! Connect a Raspberry Pi - optional Raspberry Pi is not included in a standard Marty Kit Rick (Marty’s Brain)
  • Page 19 Marty Use and interact with Marty on multiple platforms, with several different programming languages. Go to robotical.io/getstarted for support on the following: The simplest way to begin programming Scratch your Marty. Combine blocks to build a program to get your Marty up and about.
  • Page 20 “Robotical” and “Marty the Robot” are Trademarks (™) of Robotical Ltd. The Robotical Mark is a registered trade mark (®) of Robotical Ltd. V1.2/180608 - P00011048...
