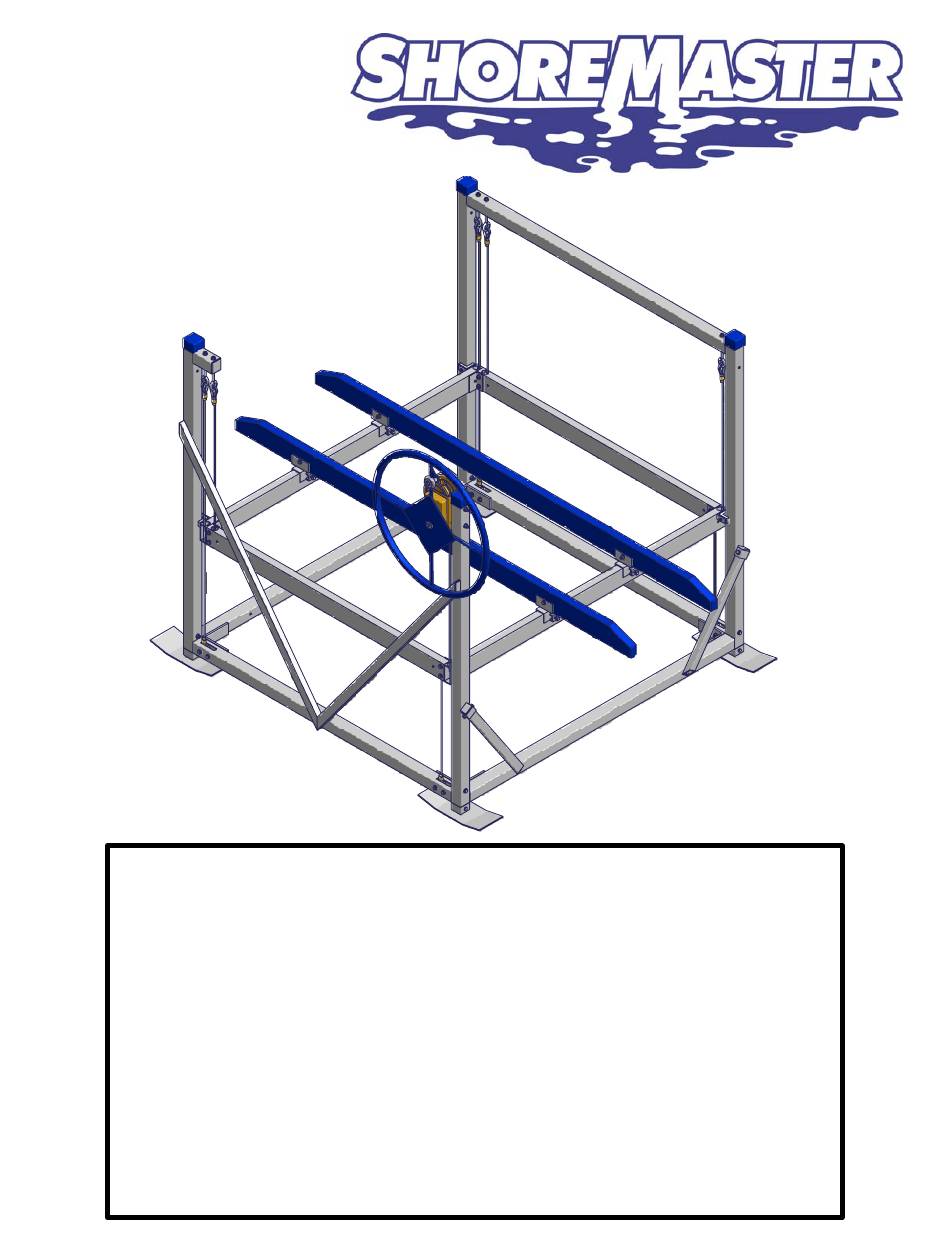

1264 Vertical Lift:
Instructions and Safety Tips
1200 lb. Capacity
Note: With 1502 DL Winch
CAUTION - PUT SAFETY FIRST
Before attempting to install or operate this hoist, study and fully understand
1.
the proper operating procedures and safety precautions outlined in this
owner's manual.
Never exceed the recommended weight capacity of your lift. The lifted
2.
weight will include hull, engine, fuel, battery, and added accessories or
gear. Weigh your fully loaded boat at a certified scale to be absolutely
sure of the total weight.
Do not allow anyone on, in or under the lift while operating.
3.
NOT COMPLYING WITH THE PROCEDURES AND PRECAUTIONS
4.
OUTLINED IN THIS MANUAL WILL INVALIDATE THE WARRANTY AND
MAY RESULT IN PERSONAL INJURY OR DEATH.
If you have any questions about assembly, installation, operation or
5.
suitability of this product, contact an authorized dealer.
10/1/13
Advertisement
Related Manuals for Shoremaster 1264
Summary of Contents for Shoremaster 1264
- Page 1 1264 Vertical Lift: Instructions and Safety Tips 1200 lb. Capacity Note: With 1502 DL Winch CAUTION - PUT SAFETY FIRST Before attempting to install or operate this hoist, study and fully understand the proper operating procedures and safety precautions outlined in this owner's manual.
- Page 2 Weight Dimensions Cubic Ft Bundle 145 LBS 7" x 65" x 68" 17.91 Hardware Box PARTS LIST "A" *1003932 - Bundle 1264 Vertical Lift* ITEM PART NUMBER DESCRIPTION PARTS LIST "C" 1007448 WHEEL *1004415 - Bolt Bag 1264* 1003638 Lift V Side...
- Page 3 WINCH HARDWARE KIT NUT 1/4 W/ BOLT CARRIAGE 1/4 X .75 STAR WASHER QTY. ONE QTY. ONE CABLE CLAMP QTY. ONE BOLT 5/16 X 1 NYLOC WASHER FLAT 5/16 QTY. ONE WHEEL SPACER QTY. ONE QTY. ONE 10/1/13...
- Page 4 ASSEMBLY INSTRUCTIONS Your safety is the most important issue related to this product. Fully read and understand each step before proceeding with that step. Wear protective gloves, clothing and eyewear when assembling and installing the lift. Do not assemble, install or use this product if items are missing or damaged. For ease of assembly find a flat area with plenty of room to assemble lift.
- Page 5 STEP 2 Place the Lift V Side and Lift Opposite Side about 5 feet apart as shown. Attach one Bottom Beam to the front of the Lift Sides. Secure to each side with one Bolt 3/8 x 3.25, two Washers Flat 3/8 and one Nut 3/8 - as shown in Detail "A."...
- Page 6 STEP 3 Attach both Lift Braces to the Bottom Beam with one Bolt 3/8 x 4.0, two Washers Flat 3/8 and one Nut 3/8 - as shown. Attach one Lift Brace to the T-slot on the front of each Lift Side with one Bolt Carriage 3/8 x 1.75, one Washers Flat 3/8 and one Nut 3/8 - as shown.
- Page 7 STEP 4 Set Rack Side Right in the Lift V Side and the Rack Side Left in the Lift Opposite Side - as shown. NOTE: The bolt heads for the pulleys must be facing out. A - Set Aluminum Eye end of cable in the slot of the front of the lift side bottom. Secure with one Bolt 3/8 x 3.25, two Washers Flat 3/8 and one Nut 3/8 - as shown in Detail "A."...
- Page 8 STEP 5 A - Attach the Rear Rack to each Rack Side. Secure at each end with two Bolts 3/8 x 2.25, four Washers Flat 3/8 and two Nuts 3/8 Nyloc - as shown in Detail "A." B - Set Aluminum Eye end of cable into the slot in the rear of the Lift Side bottom. Secure with one Bolt 3/8 x 3.25, two Washers Flat 3/8 and one Nut 3/8 - as shown in Detail "B."...
- Page 9 STEP 6 Set the Front Rack in place and attach to the Rack Sides. Secure at each end with two Bolts 3/8 x 2.25, four Washers Flat 3/8 and two Nuts 3/8 Nyloc - as shown in Detail "A." Insert the Eye Bolt end of cable through the hole in the Lift Side top. Secure with one Washer Flat 3/8 and one Nut 3/8 Nyloc - as shown in Detail "B."...
- Page 10 STEP 7 Route the Winch Cable in between the two cross-bolts of the Bolt Carriage Winch. Insert the Winch Cable through the hole in the 1/4 x .75 Winch Hub and create a loop around the square hole. Secure with one Bolt Carriage 1/4 x .75, one Cable Clamp, and one Nut 1/4 w/ Star Washer as shown in Detail "A."...
- Page 11 STEP 9 Thread Wheel clockwise onto Wheel Shaft until it touches the Brake Pad. The wheel must be fully against Brake Pad and a clicking sound must be heard when turning wheel up! Using a sharp knife or razor blade, cut a small hole in the middle of the Wheel, where the wheel sticker covers the attaching bolt hole.
- Page 12 Nut 1/2 Square, and one Set Screw 1/2 x 1.25 - as shown in Detail "A." Attach optional ShoreMaster Carpeted Bunks to the Bunk Brackets with one Bolt 3/8 x 2.75, two Washers Flat 3/8, and one Nut 3/8 in each place - as shown in Detail "A."...
- Page 13 Proper Cable Locations Rack Side Left Rear Rack Cable Cable Eye Bolt Eye Bolt Front Rack (winch) Cable Eye Bolt Rack Side Right Cable Eye Bolt Front of Lift Rear Rack Cable Attached here Left Rack Side Cable Attached Here Front of Lift Right Rack Side Cable Attached here CAUTION...
- Page 14 Proper Cable Adjustment a) There are four cables with Eye Bolts and nuts that must be adjusted to properly level cables. These Eye Bolts are all located near the rear uprights as shown. b) Turn wheel so front rack beam raises about 6" above the bottom of frame. Adjust cables so all corners of rack are the same distance from frame.
-
Page 15: Installation Instructions
If they are not, adjust the legs accordingly. Note: If the lift legs will extend 3 feet or more, ShoreMaster recommends deep water braces to stabilize and strengthen the lift. Ask your dealer for more information. - Page 16 OPERATING INSTRUCTIONS CAUTION When first using the boat lift after installation, the weight of the boat may cause the lift to settle and become unbalanced. Until you are certain the lift has stabilized, make sure people are not in the immediate vicinity of the lift.
- Page 17 5. Check and lubricate pulleys to ensure that they are turning freely. 6. Check Eye-Bolts to make sure they are not working themselves loose. ShoreMaster dealers usually offer service visits. Please contact them if you are unable or unwilling to perform maintenance or service to lift.
