Summary of Contents for AMC A4X60

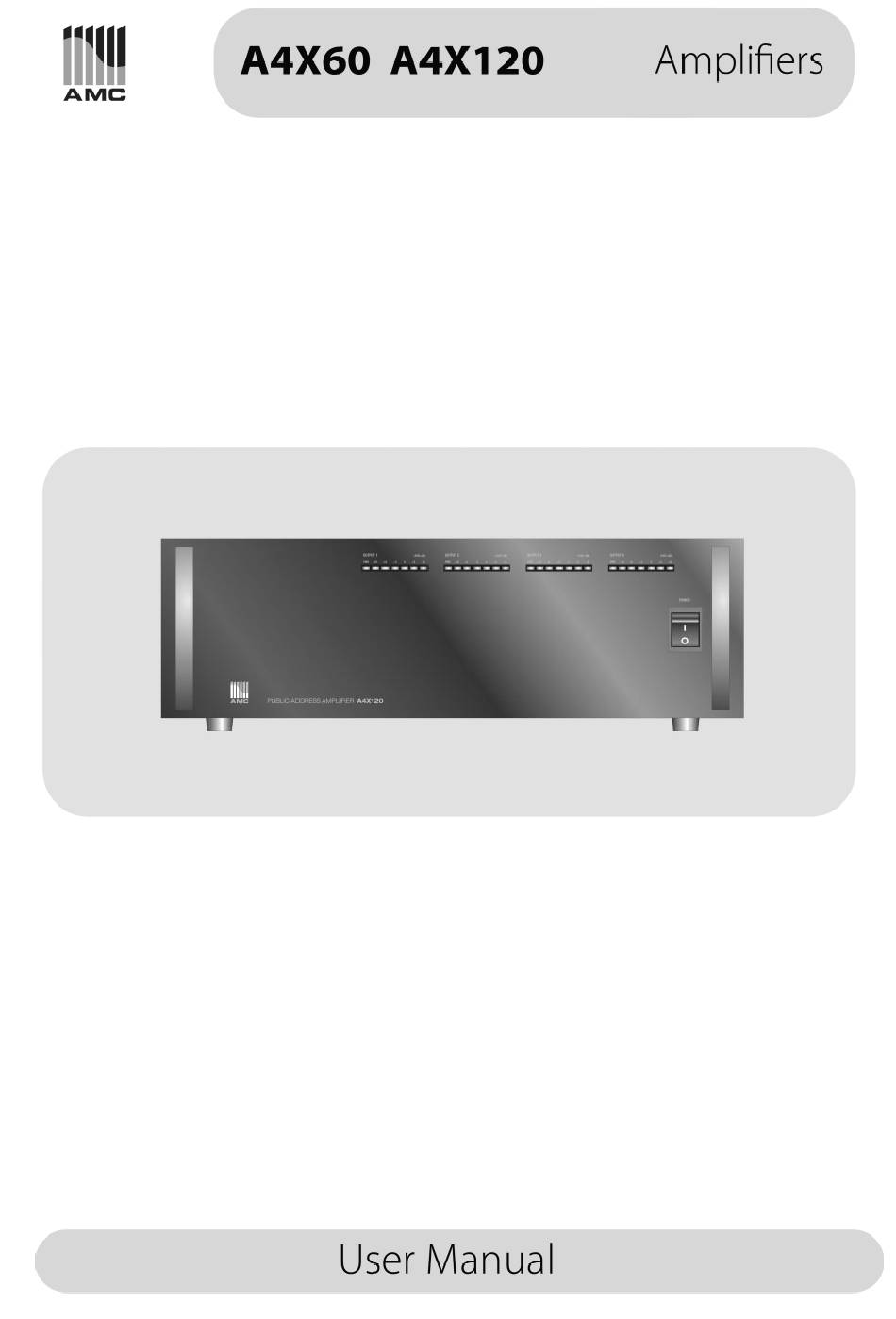

- Page 2 ◎ Carefully to READ the instruction in this manual before use. ◎ Certainly to OBSERVE the INSTRUCTION in this manual regard convention of safety symbols and messages ◎ Please KEEP this user MANUAL nearby for anytime reference. Safety symbol and Message Conventions Below-described safety symbol and messages are to prevent bodily injury and property damage.
- Page 3 When found following irregular situation during amplifier is in use, immediately switch off the power, disconnect the power supply plug from the AC outlet. Don’t try to operate the amplifier again. Contact your local dealer to check the amplifier. The amplifier falls. Amplifier is malfunction.

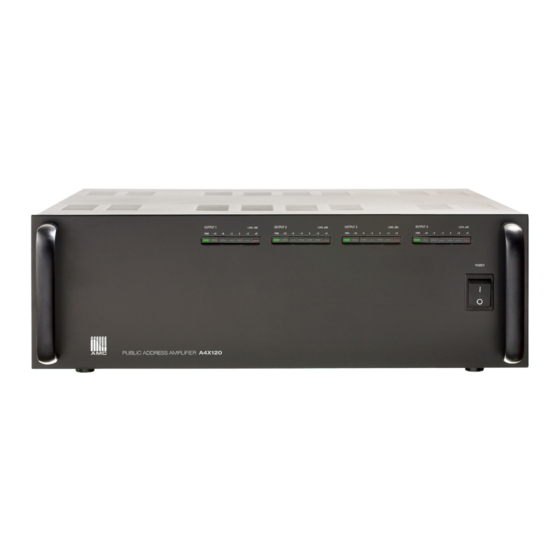

- Page 4 Dust accumulation may result in fire or damage. Description A4X60 and A4X120 are 4 channels booster amplifier designed for up to 4 zones application. Each channel has input with its own gain control. The speaker output is the screw terminal for low impedance 8 ohm, or high level 70V and 100V screw terminal.
- Page 5 FRONT PANEL DESCRIPTION 1. OUTPUT1 Power On indicator LED 6. OUTPUT3 Output Level indicator LED 2. OUTPUT1 Output Level indicator LED 7. OUTPUT4 Power On indicator LED 3. OUTPUT2 Power On indicator LED 8. OUTPUT4 Output Level indicator LED 4. OUTPUT2 Output Level indicator LED 9.
- Page 6 1. Fuse (Channel3) 12. Input (Channel 2) 2. Fuse (Channel 4) 13. Mains Input Socket 3. Fuse (Channel 1) 14. Earth Connection Screw 4. Fuse (Channel 2) 15. DC Power Supply Terminals (Channel 2) 5. DC Power Supply Terminals (Channel 1) 16.
- Page 7 Dimensions ( HxWxD) mm 132 (H) x 425 (W) x 420 (D) mm Weight 24 Kgs 24 Kgs Mounting options Table top or 19” rack mountable WARNING: THIS APPLIANCE MUST BE EARTHED AMC is a registered trademark of AMC Baltic www.amcpro.lt...
