AMC A65U Instructions For Installation And Operation Manual

2 channel power amplifier for spa installations

Advertisement

Quick Links

A65u
2 CHANNEL
POWER AMPLIFIER
for Spa Installations
With UL1563 Standard for Spa applications
With Conformal Coating
With AC Receptacle to go with various type of power cord & plug
IA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A65U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AMC A65U

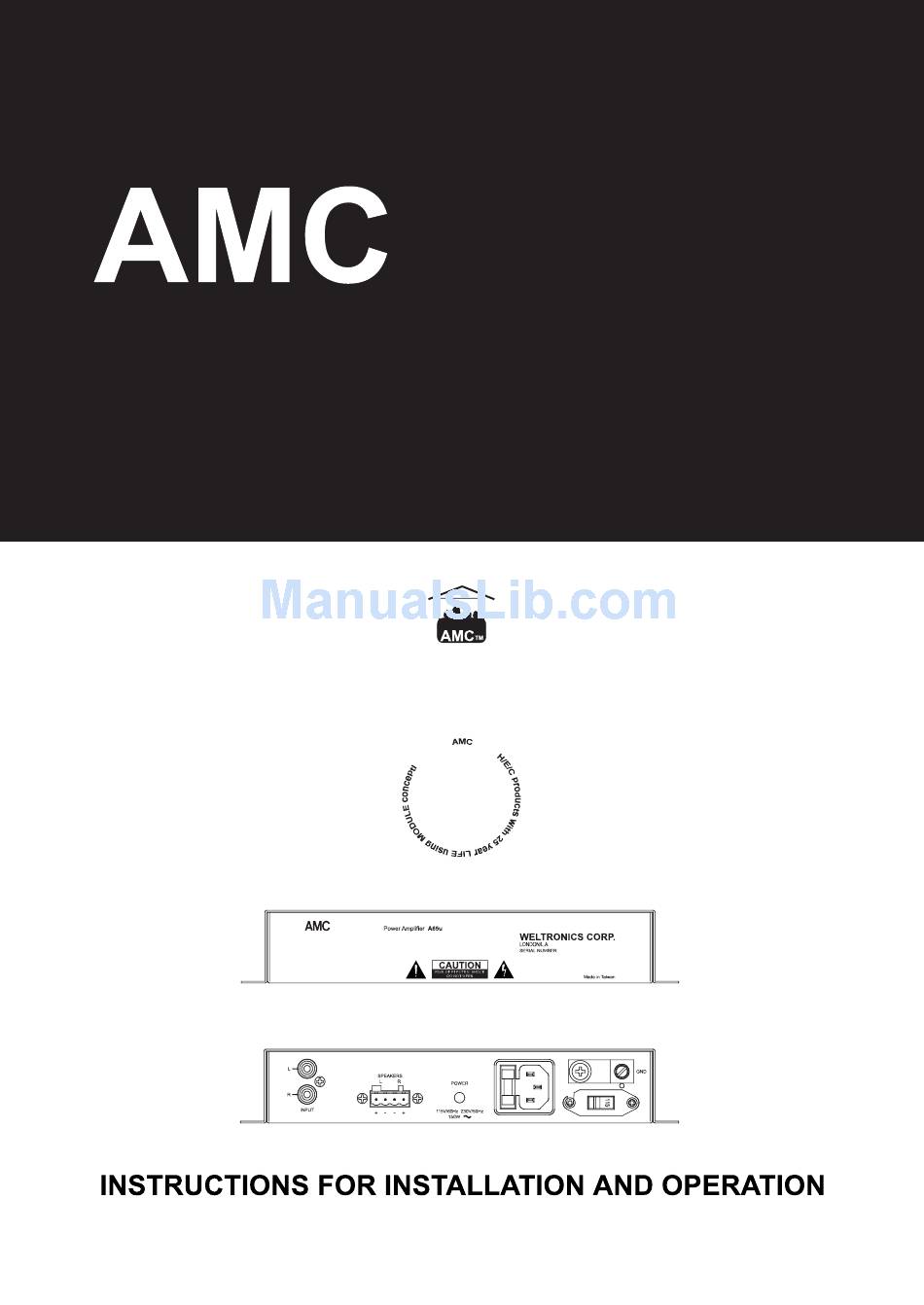

  • Page 1 A65u 2 CHANNEL POWER AMPLIFIER for Spa Installations With UL1563 Standard for Spa applications With Conformal Coating With AC Receptacle to go with various type of power cord & plug...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. READ AND FOLLOW ALL INSTRUCTIONS. 2. Keep these instructions and Heed all warnings. 3. Do not use this apparatus near water. 4. Clean only with dry cloth. 5. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
  • Page 3: Installation Notes

    1. The AMC A65u is designed for using on Spa installation applications with Ul1563 standard and with AC Power Receptacle to go with various type of power cord & plug. 2. The AMC A65u is designed with Voltage Selector. Please set the voltage to correct line voltage before installation.
  • Page 4: Rear Panel

    REAR PANEL CONNECTIONS/FRONT PANEL CONTROLS REAR PANEL 1. Voltage Selector(115V / 230V AC) 4. Speaker Terminals - L & R 2. AC Power Receptacle 5. Inputs - L & R 3. Power Indicator LED 6. Ground Terminal FRONT PANEL...
  • Page 5 & 4P Connector voltage 115VAC or 230VAC before installation. 2. AC Power Receptacle The AMC A65u is designed for using on Spa installation applications with Ul1563 standard and with AC Power Receptacle to go with various type of power cord &...
  • Page 6: Specifications

    SPECIFICATIONS SPECIFICATIONS: With UL1563 Standard for Spa applications With Conformal Coating Power output into 4 ohms (20Hz-20KHz) ..........65W -- 2ch Rated THD......................0.05% Damping factor ....................>100 Input sensitivity for 1W into 4 ohms ..............50mV Input impedance ................R=22K, C=220pf Frequency response 20Hz~20KHz ..............+/-0.5dB "A"...
  • Page 8 PN: 21-4196U...
