Intercall L7700 IP16 Documentation page 6

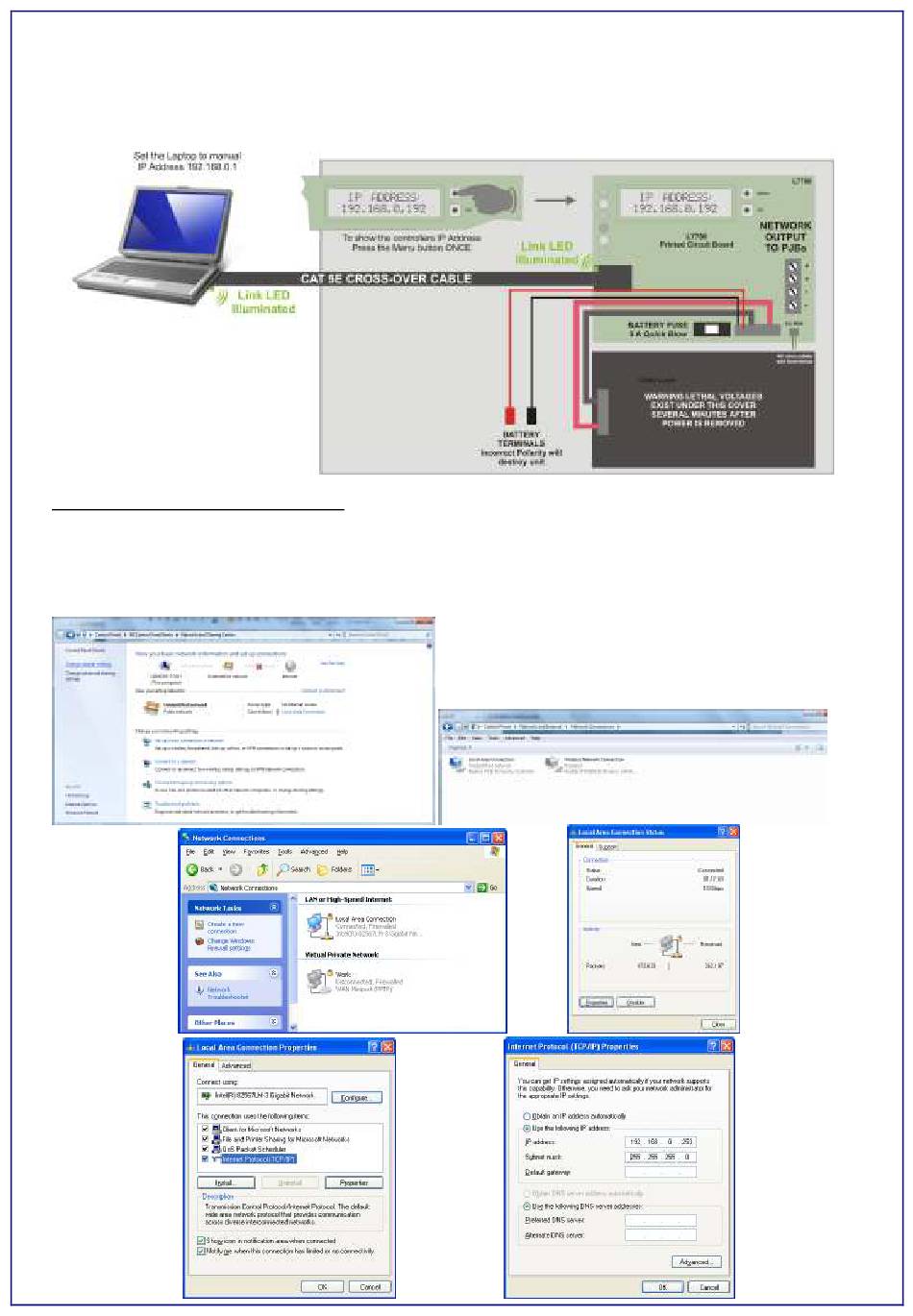

Direct Ethernet Connection between the L7700 and your laptop.
The simplest way to communicate with the L7700 is to use a RJ45 Cat5E Cross-Over cable and manually set the
IP Address of your laptop. Ensure the Link LEDs are Illuminated both the Laptop and the IP16 RJ45 connectors
before you begin.
Manually Setting your laptop IP Address
Windows XP: Control Panel – Network Connection and double click the Network Connections icon to open the
Network Connections Dialog. Now Select the Wired Local Area Connection. For Windows Vista / Windows 7:
Control Panel – Network and Sharing Centre – Change Adaptor Settings to open the - Network Connections dialog
shown below right, then follow XP instructions 1 to 4.
1. 2.
3. 4.
