Intercall L7700 IP16 Documentation page 3

MAIN SUPPLY INPUT:
REQUIRED BATTERY:
OUTPUT TERMINALS:
devices.
ETHERNET:
LCD:
MENU & SELECT/OK:
INPUT TERMINALS:
INPUT 1:
INPUT 2:
OUTPUT TERMINALS:
OUT 1A & 1B:
TXD:
CTS:
STATUS LEDs:
NET:
EARTH*
AC:
DC:
BATT*
SD*
DISK:
*Red LEDs indicate Fault Conditions.
Onboard Fuse:
Installation:
Size & Weights:
90 – 240VAC Remove protective cover to gain access to these terminals.
12Volt 6/12AH Sealed Lead Acid. OBSERVE POLARITY!
Two parallel terminals provided for convenience, connect to network
IEEE 802.3 Compatible 10Base-T interface using copper RJ45 connector.
Two line LCD with menu for essential status & configuration.
Buttons for navigating the LCD Menus.
Programmable Input No 1 active when connected to 0V.
Programmable Input No 2 active when connected to 0V.
Programmable Volt Free Normally Open Output Max 24V DC 500mA
RS232 Output Data which can be many baud rates & data streams.
RS232 Flow Control Input which can be disabled and/or inverted.
Blue pulsing indicating the Intercall network processor is running.
Indicates too low resistance between the network & protective earth.
Yellow to indicate Mains Supply detected.
Green to indicate DC supply is operating within limits.
Battery backup fault, battery is not charging.
Fault reported by on-board disk.
Indicates activity read/write to the on-board SD Disk.
5Amp 20mm Quick Blow protection for Battery, Charger is current limited.

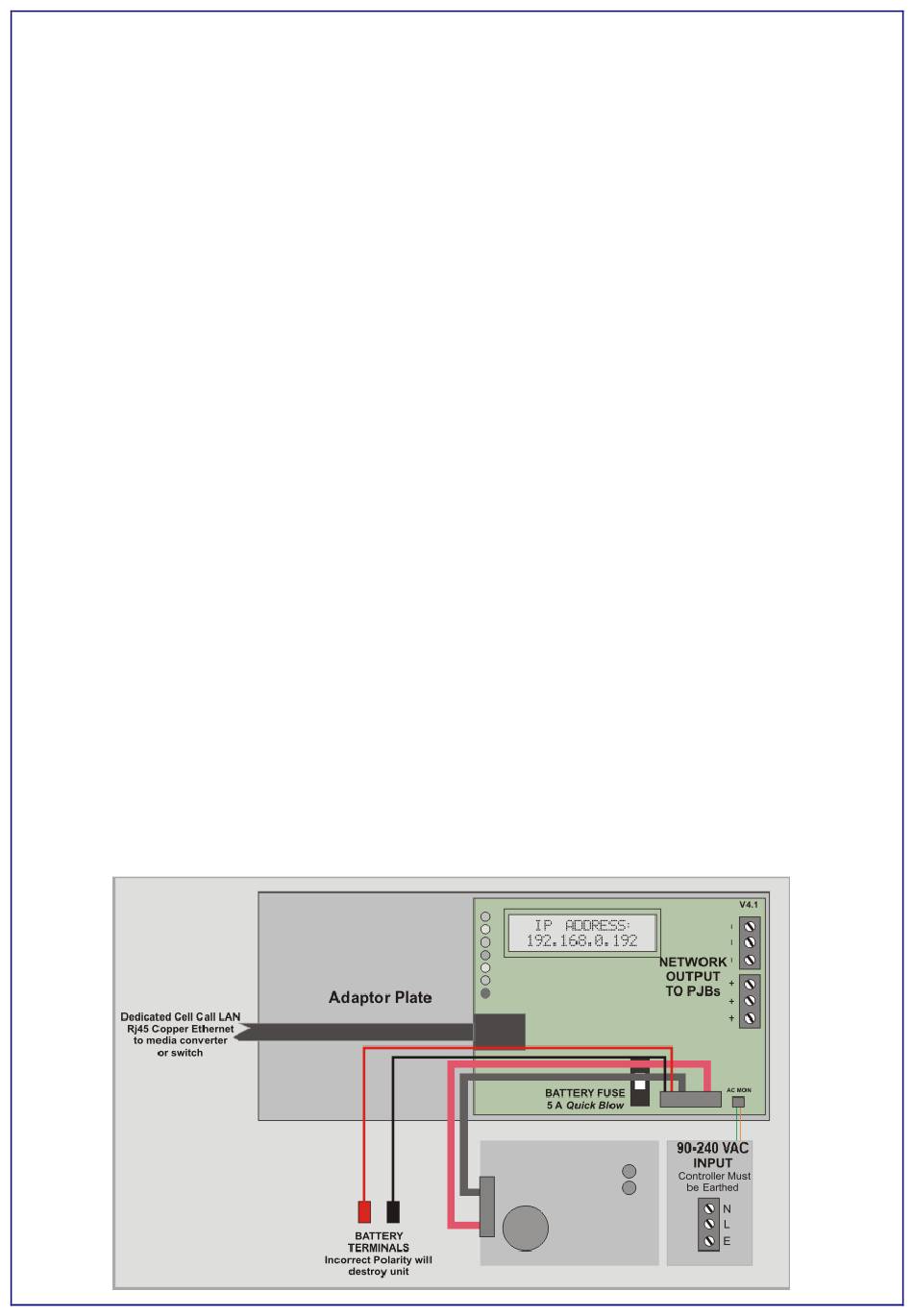

Self Contained Surface Mounted Case. (See Below)
370mm x 260mm x 110 mm 4.5Kg
