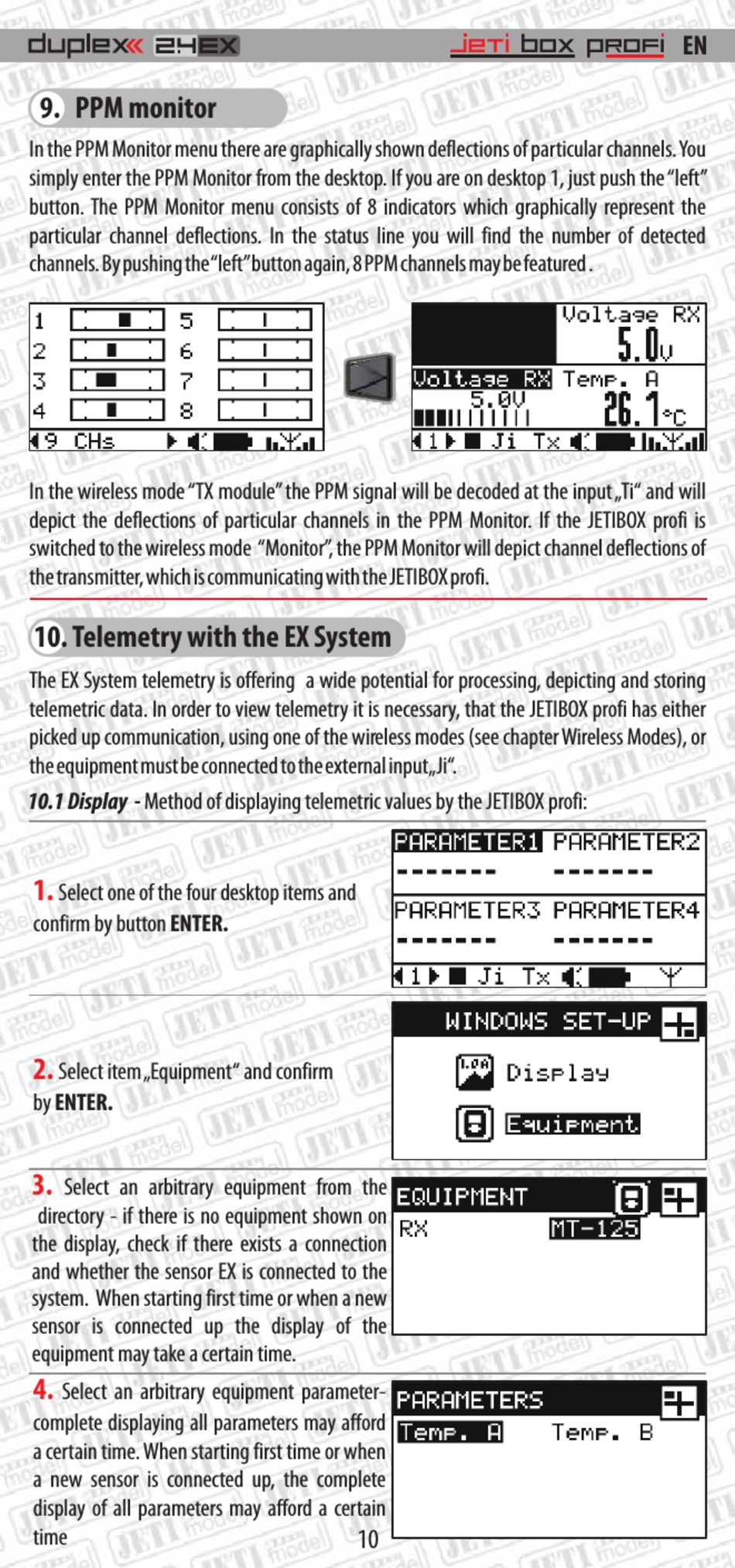

9. PPM monitor

In the PPM Monitor menu there are graphically shown deflections of particular channels. You
simply enter the PPM Monitor from the desktop. If you are on desktop 1, just push the "left"
button. The PPM Monitor menu consists of 8 indicators which graphically represent the
particular channel deflections. In the status line you will find the number of detected
channels. By pushing the "left" button again, 8 PPM channels may be featured .
In the wireless mode "TX module" the PPM signal will be decoded at the input „Ti" and will
depict the deflections of particular channels in the PPM Monitor. If the JETIBOX profi is
switched to the wireless mode "Monitor", the PPM Monitor will depict channel deflections of
the transmitter, which is communicating with the JETIBOX profi.

10. Telemetry with the EX System

The EX System telemetry is offering a wide potential for processing, depicting and storing
telemetric data. In order to view telemetry it is necessary, that the JETIBOX profi has either
picked up communication, using one of the wireless modes (see chapter Wireless Modes), or
the equipment must be connected to the external input „Ji".
10.1 Display - Method of displaying telemetric values by the JETIBOX profi:
1.
Select one of the four desktop items and
confirm by button ENTER.
2.
Select item „Equipment" and confirm
by ENTER.
3.
Select an arbitrary equipment from the
directory - if there is no equipment shown on
the display, check if there exists a connection
and whether the sensor EX is connected to the
system. When starting first time or when a new
sensor is connected up the display of the
equipment may take a certain time.
4.
Select an arbitrary equipment parameter-
complete displaying all parameters may afford
a certain time. When starting first time or when
a new sensor is connected up, the complete
display of all parameters may afford a certain
time
