Summary of Contents for HydroTherm DYNAMIC/X8

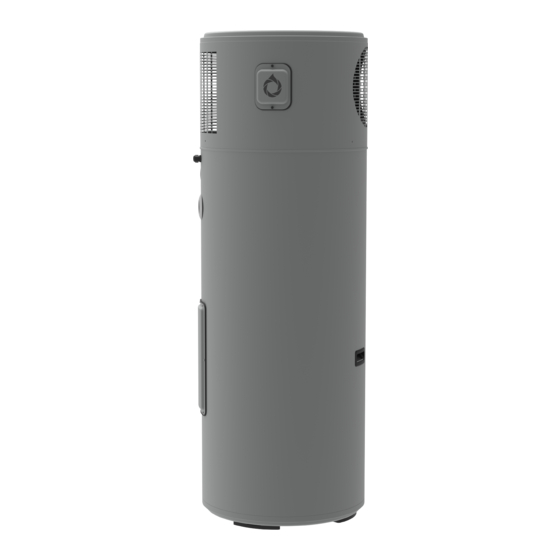

- Page 1 Welcome to the future of hot water. DYNAMIC/X8...
- Page 2 You are now the proud owner of Australia’s best value, best performing heat pump. We spent over three years designing and developing the Hydrotherm range to ensure that each unit will provide years of trouble free operation. However, in order to perform optimally it is important to ensure that your Hydrotherm is installed and operated in-line with the instruction found in this manual.
-
Page 3: Table Of Contents
CONTENTS 1.0 SAFETY WARNINGS...........................4 Symbols used in these instructions Observe the following safety instructions: 2.0 PARTS & CONSTRUCTION SCHEMATICS.............5 2.1 DIMENSIONS DYNAMIC/X8................5 Please Note: Warning about 2.2 SCHEMATIC DYNAMIC/X8..................6 possible dangers. 3.0 INSTALLATION INSTRUCTIONS..................7 3.1 DELIVERY................................7 Note: Important information and tips. -
Page 4: Safety Warnings
1.0 SAFETY WARNINGS INSTALLATION & OPERATION • For outdoor use only. • DO NOT install or operate this system before reading the manufacturers instructions. • This appliance must be installed, commissioned and serviced by an authorized person in accordance with all applicable local rules and regulations. -
Page 5: Parts & Construction Schematics
2.0 PARTS & CONSTRUCTION SCHEMATIC DIMENSIONS DYNAMIC/X8 The DYNAMIC/X8 use a R290 (propane) refrigerant which is a flammable gas class 3 according to AS 1677 and must be handled by a refrigeration mechanic with an appropriate Australian refrigerant handling license. -
Page 6: Schematic Dynamic/X8
SCHEMATIC DYNAMIC/X8... -
Page 7: Installation Instructions
30° • Hydrotherm heat pumps must be stored and transported in a near vertical position at all times with a tilt ratio of no more than 30°. Transporting or storing the unit in a horizontal position will void warranty. -
Page 8: Base
• Proper drainage should be observed for any overflow in accordance with AS/NZS 3500.2. • When installed the Hydrotherm unit must be completely vertical and level as to ensure that condensate can be properly drained. If the system is installed at a level with a tilt of more than 3 degrees, warranties may be voided. -
Page 9: Air Flow
• The Hydrotherm should be installed so that the control interface is accessible to users and that there is clear access to the electrical panel at the back of the system. Where incorrect installation has occurred warranties may be void or additional charges may be required to ensure that the system is compliant. -
Page 10: Tariffs
The Continuous tariff is what every household connected to the grid has as a minimum. If you would like to utilize a Solar PV system to run your Hydrotherm system on, this is usually the only tariff available to do so. -
Page 11: Plumbing Schematics
4.0 PLUMBING SCHEMATICS The following instructions and schematics have taken into account standards AS4324, AS4020, AS1056.1, AS/NZS2712, AS/NZ3350.240/30/30.2, AS3498 and represents an optimum installation procedure for this unit however to ensure minimum requirements are met all local regulations should be adhered too. DYNAMIC X8 CONNECTION DIMENSIONS AND COMPONENTS Cold Water supply outlet (G 3/4”... -
Page 12: Plumbing Installation
5.0 PLUMBING INSTALLATION PLUMBING CONNECTIONS 1. Cold Water Supply Outlet • The cold water supply connection is a G 3/4” female thread. • The cold water supply should be connected to G 3/4” socket. • The cold water supply outlet can also act as a drainage point for emptying the system. 2. - Page 13 4. Pressure & Temperature Relief (PTR) Valve - 850kPa;10kW; Set temperature: 93-99℃ • The system is supplied with a loose Pressure & Temperature Relief (PTR) valve appropriate to the pressure rating of the water heater tank. If the PTR valve is not present please contact your supplier. The valve Rated capacity: 850kPa;10kW;...
- Page 14 • The non-return/isolation valve can be combined with a PRV valve to form a duo valve. Filling The System • Once the Hydrotherm has been connected in accordance to section 3.0 and 4.0 of this handbook, the tank can be filled and pressurized.
-
Page 15: Electrical Connection
6.0 ELECTRICAL CONNECTION Only qualified electricians may carry out the installations of the Hydrotherm heat pump to main power in accordance with the following instructions. ELECTRICAL SCHEMATIC C1/2 C1/2 C3/4 N02 No3 No4 C3/4 Tx/Rx GND B4 Key/spv C1/2 C1/2 C3/4... -
Page 16: Pre-Connection & Regulations
• Before any work can commence ensure that the heater is isolated from the power supply at the control panel. • The Hydrotherm heat pump is designed for permanent fixed wiring to either a Continuous Tariff, single phase 240V AC supply or a Shoulder Tariff 33 (QLD only) single phase 240V AC supply. -
Page 17: Commissioning The System
7.0 COMMISSIONING SYSTEM PRE-START PROCEDURES AND CHECKS • Once both the electrical and plumbing connections have been completed by qualified trades person, the system is now ready for operation. • Before turning the system on it is essential that you ensure the heat pump storage tank is full and the unit thoroughly flushed. - Page 18 CHECKBOX The Hydrotherm system is level. The Hydrotherm system is installed on a concrete plinth or stable structure capable of sustaining weights in excess of 400kg. A minimum distance of 300mm is present above the Hydrotherm system, to allow the lid to be removed for maintenance (see section 2.3 Air Flow).
-
Page 19: Operational Panel Instructions
8.0 OPERATION PANEL INSTRUCTIONS KEY FACTORS: • Hydrotherm recommends setting systems in TIMER MODE and using the in-built timer function unless your household requires a large demand of hot water. Please be aware of temperature, tariff and usage patterns when customizing timer periods. -
Page 20: Control Interface
CONTROL INTERFACE Located on the front of the Hydrotherm is the unit interface. It houses all controls and displays necessary to operate your new Hydrotherm Hot Water System. The legend below indicates all components referred to in this manual. CLOCK button... -
Page 21: Control Interface Icons
CONTROL INTERFACE ICONS Located on the front of the Hydrotherm is the control interface. It houses all controls and displays necessary to operate your Hydrotherm system. The legend below indicates all components referred to in this manual. Symbol Meaning Screen is locked. Press any button to unlock. -
Page 22: Unlocking & Turning The System On
1. Heat pumps work considerably more efficiently during daylight hours when ambient air temperatures are at their highest. 2. Having the Hydrotherm system heat during the day is less likely to disturb anyone. 3. The in-built timers can be used to fully utilize a Solar PV system. - Page 23 The factory default for the in-built timer period is 09:00-17:00. Hydrotherm systems will run in TIMER mode when the following conditions are met: 1. The water temperature as shown on the display screen is below 50°C. 2. The time displayed on the screen is within the period designated by the set timers (factory default periods are 09:00-17:00.
-
Page 24: Setting The Clock
SETTING THE CLOCK The correct time is necessary for the Hydrotherm to operate in TIMER mode properly. Please note that that the time is displayed in a 24 hour format. 1. Press the CLOCK button to begin setting the time. The hour value will begin flashing. -
Page 25: Error Handling
ERROR HANDLING Hydrotherm systems will display an error code when an fault has occurred. The error message will show where the time is usually displayed as well as the error symbol. Please note the error code before contacting Hydrotherm. Depending on the error code, the system will automatically continue to heat using the electric element. The... -
Page 26: Trouble Shooting
Note down code and contact Hydrotherm on 1300 any error code is displayed mode 769 904. If the above issues are resolved and you are still running out of hot water. Contact Hydrotherm on 1300 769 904 during office hours and a technician can assist. - Page 27 The hot water pressure available at your taps is dependent on your homes incoming water mains pressure as well as any pressure restricting or tempering valves, your plumber may have installed. The Hydrotherm does not control or limit the hot water pressure delivery in anyway. If the pressure at your hot water taps is...
-
Page 28: Faqs
What should I do to the Hydrotherm if I go away on holiday? Leave the system as per normal. The Hydrotherm has built in safety features which will prevent Legionnaires' disease from occurring while you are away. The amount of electricity used by the system while there is no hot water being used is minimal. -
Page 29: Warranty
11. WARRANTY - AUSTRALIA ONLY 6 YEAR SYSTEM WARRANTY Aquatech Solar Technologies Pty. Ltd. warrants the Hydrotherm will be free from minor defects and major failures for a period of six years from the date of system installation. When proof of installation date is not provided, the start date of the warranty will commence from the system date of manufacture determined by the systems unique serial identifier. - Page 30 All Service Claim Submissions will be processed and reimbursement on validated claims paid into owner nominated account within 7 business days. WARRANTY EXCLUSIONS This warranty does not cover any costs associated with the failure or damage of the Hydrotherm system under the following circumstances: •...
- Page 31 NON-RESIDENTIAL WARRANTY Where the Hydrotherm has been installed in any capacity not related to the supply of potable hot water at a temperature not in excess of 60°C, the installation will be deemed as non-residential and all warranties are void.
- Page 32 NOTES...
- Page 33 info@hydrothermhotwatersystems.com.au www.hydrothermhotwatersystems.com.au TOLL-FREE 1300 769 904...
