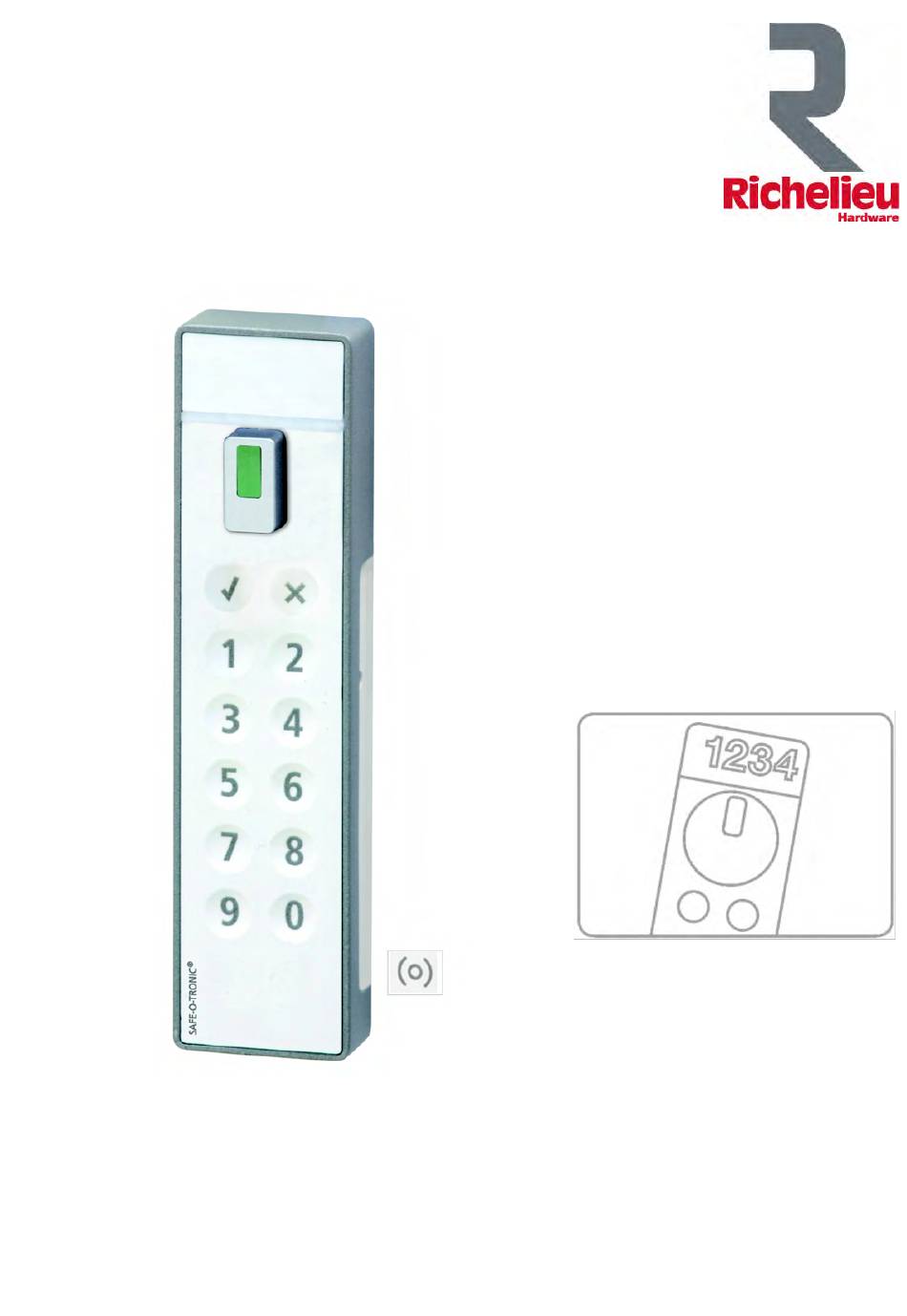

- Page 1 ® SAFE-O-TRONIC access Electronic Identification and Locking System Via Pin and RFID Item No. 6330084230 Manual 6330084230 english ® SAFE-O-TRONIC access Cabinet Lock...
-
Page 2: Notes On This Manual
The compilation of the information in this manual is carried out to the best of our knowledge. Richelieu does not assume any liability for the correctness and completeness of the details in this manual. In particular, Richelieu cannot be held liable for consequential damages on account of faulty or incomplete details. -
Page 3: Table Of Contents
Further information ......................14 LED display ..........................14 Troubleshooting / operating errors ....................15 Replacing the battery ........................15 Battery monitoring / battery alarm ....................15 Maintenance and care ........................ 15 Technical Data ..........................16 Drill template ..........................17 www.richelieu.com... -
Page 4: Control Elements
RFID reader OK key: Conclusion of Code entry √ Abort key: Code entries or programming operations can be rejected by pressing the abort key Keys 1, 2, 3, 4, 5, 6, 7, 8, 9, 0: Number keys for Code entry www.richelieu.com... -
Page 5: Lock With Mounting Components
6 Bush for fastening the lock to the door for door thicknesses of 10mm to 18mm 7 Bush for fastening the lock to the door for door thicknesses of 1mm to 9mm 8 Screw for fastening the lock to the door 9 Rotary knob www.richelieu.com... -
Page 6: Installation Information
1. Remove the screw (5). 2. Using a TG 10 screwdriver (item no. 358008910) loosen the fastening screw for the rotary knob by inserting through the threaded hole for the screw (5). 3. Fasten the new rotary knob in reversed order. www.richelieu.com... -
Page 7: Setting The Rotational Direction For Locking
If the lock is installed in a position whereby the rotary knob is not at the top (e.g. horizontal installation), the grommet must be turned correspondingly. If the rotary knob is to be turned to the right for locking, the grommet must be attached to the lock in such a way that the “R” opening points downward. www.richelieu.com... -
Page 8: General Information
The user enters an (in this example 4-digit) UserCode to lock and open the compartment. Enter the UserCode ► Note: 9, 0, 6, 0 is only an example code Then press the OK key √ ► Turn the rotary knob ► www.richelieu.com... -
Page 9: Function Control
One Open In “One Open” operating mode every UserCode programmed in the lock can lock the lock. In contrast to the “All Open” operating mode, only the UserCode last used to lock the lock can open the lock again. www.richelieu.com... -
Page 10: Programming Set
In order to programme the locks, the RFID data carriers must be held against the RFID reader after activating the lock by means of the keypad. With the exception of BatteryTest, MasterKey I and MasterKey II the RFID data carriers only function if the locks are unlocked. www.richelieu.com... -
Page 11: Freecode Init
Press the OK and abort keys simultaneously ► Hold the RFID data carrier labelled “FixCode INIT One Open” against the RFID reader on the ► lock. In the next step, the UserCode can be entered by means of the RFID data carrier “FixCode PROG”. www.richelieu.com... -
Page 12: Fixcode Prog
Hold the RFID data carrier labelled “BatteryKey” against the RFID reader on the lock. ► The LED is illuminated green if the battery is charged sufficiently and flashes red and green if the battery charging is too low (see the LED display table / status reports). www.richelieu.com... -
Page 13: Resetkey
► Hold the RFID data carrier labelled “MasterKey II” against the RFID reader on the lock. ► If MasterKey I was used, the lock will be enabled again or it will be possible to open or lock the compartment. www.richelieu.com... -
Page 14: Further Information
Key I active LEDs flash together Warning: Short-term battery three times replacement required LEDs flash in turn five Battery must be replaced times immediately; lock can no longer be operated LEDs flash three times Reset has been carried out www.richelieu.com... -
Page 15: Troubleshooting / Operating Errors
Only use non-stick, residue-free cleaning agents and disinfectants for cleaning purposes. Do not use any harsh cleaning agents, acids or lyes when caring for the product. Also do not use a pressure cleaner. It is also not permitted to spray-wash the locks, for example using a hose. www.richelieu.com... -
Page 16: Technical Data
Housing dimensions incl. rotary knob (H x W x D): 151mm x 38mm x 33mm Colour of housing frame: Similar to RAL 9006 (white aluminium) Colour of the control panel: White or Black Door thickness: 1 to 18 mm www.richelieu.com... -
Page 17: Drill Template
Manual 6330084230 Drill template Notice: Depending on the printer there can be dimensional deviations when printing this drill template. Therefore, please remeasure the drill template before use. Therefore, please remeasure the drill template before use. www.richelieu.com...
